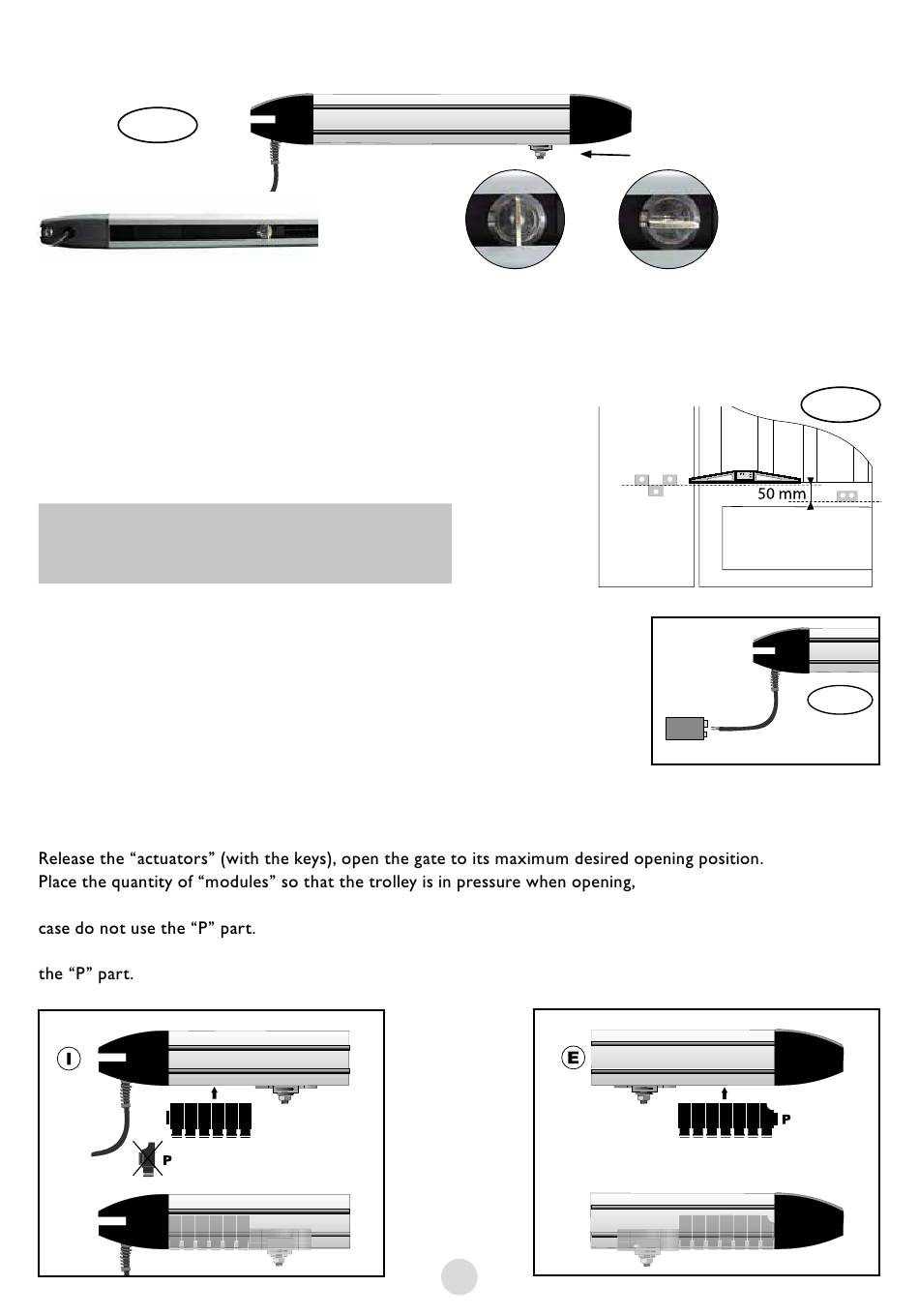

The original actuators are delivered in closed position (see fig.2).
If not, use a battery to position the drive cursor at 2cm of the internal abutment of the actuator (Fig.2).
Side view
Fig. 2
Bottom view
Close the gate and secure the bracket on the leaf.
For proper operation of the actuators, it is important the thrust is perfectly horizontal.
Determine then the height of the fixing bracket on the leaf side according to that of the post, or inversely, ob-
serving a distance of 50mm between the two heights (see Fig. 3).
If the gate does not open completely,
check your A, B and C dimensions.
Caution: The drive slides should have a 20mm gap
in closed position and in open position
* Note: During the installation or the first use, it is normal unlocking is a little
bit hard.
This disappears when the actuator is installed on the leaf or after a few uses.
When installing, use a 9v (type 6F22) or 12v battery to move the shuttle, if
necessary. (By reversing the polarity, you reverse the movement direction of the
drive slide) (Fig. 4).
INTERNAL STOPS :
You should use internal stops if you do not have ground stops (when opening).
« I » The modules are to be placed (in the actuators) on the stud side for a gate which opens inwards, in this
« E » For an outward opening, the modules have to be placed (in the actuators) on the gate side finishing with
Inward opening
Unlocked
13GB
WEAT V2 N - V1
Drive slide
Locked
9v or 12v
Outward opening
Fig. 3
Fig. 4
