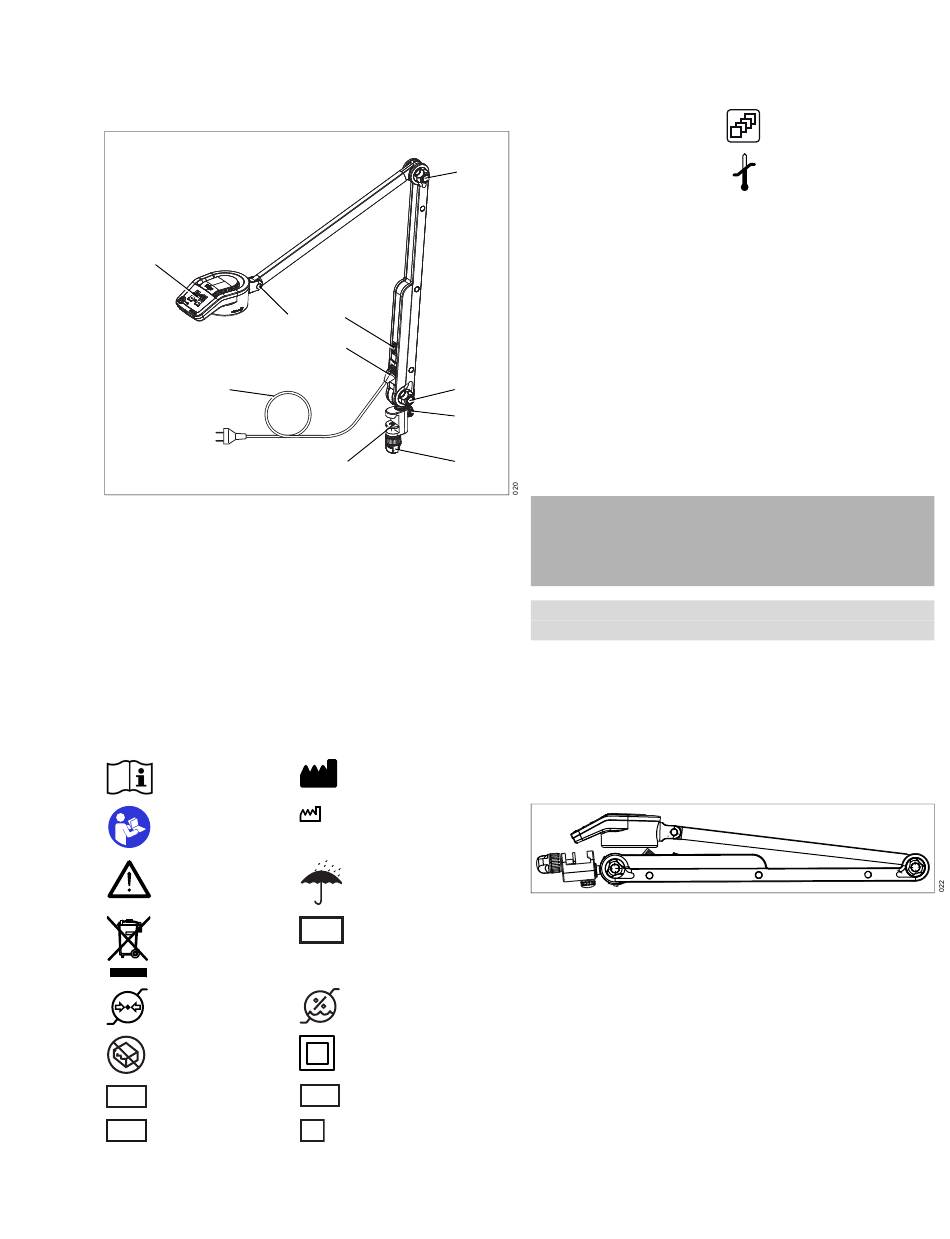

Overview
H
E
A Adjusting knob
C Rail clamp
E Power cable
G Adjusting screw
Scope of delivery
– VarioLux examination light
– Rail clamp
– Power cable
Symbols
Consult instructions
for use
Warning! Strictly fol-
low these Instruc-
tions for Use
Caution
WEEE marking
Ambient pressure
Do not use if pack-
age is damaged
Batch number
LOT
Serial number
SN
Instructions for use VarioLux
A
G F
D
A
B
C A
B Fastening screw
D Power cable connection
F On/off switch
H Control panel
Manufacturer
Date of manufacture
XXXX
Protect from moisture
The product is a medical
MD
device (CE conformity as-
sessment procedure)
Relative humidity
Protection class II
Part number
REF
Revision index
RI
O Device off
I Device on

Assembly and preparation

1 Fasten the rail clamp (C) to the rail.
2 Insert the light into the rail clamp (C) and fasten it with the
fixation screw (B).
3 Check that the mains power supply matches the nominal
voltage indicated on the rating plate.
4 Connect the power cable (E) to the power cable connection
(D) of the light.
5 Connect the mains plug to a mains power socket.
Operation
Positioning the light
CAUTION
Risk of personal injury and property damage
The end positions of the arm system may become damaged.
When positioning the light, be careful not to pull the arm system
forcefully beyond the end positions.
NOTE
Secure the hinged arms when loosening the adjusting knob (A).
1 To bring the light into the required position, loosen the
adjusting knob (A) by rotating it counterclockwise.
2 Position the examination light as required. Tighten the
adjusting knob (A) by rotating it clockwise.
Transport position of the light
Recommended position for intrahospital transport:
