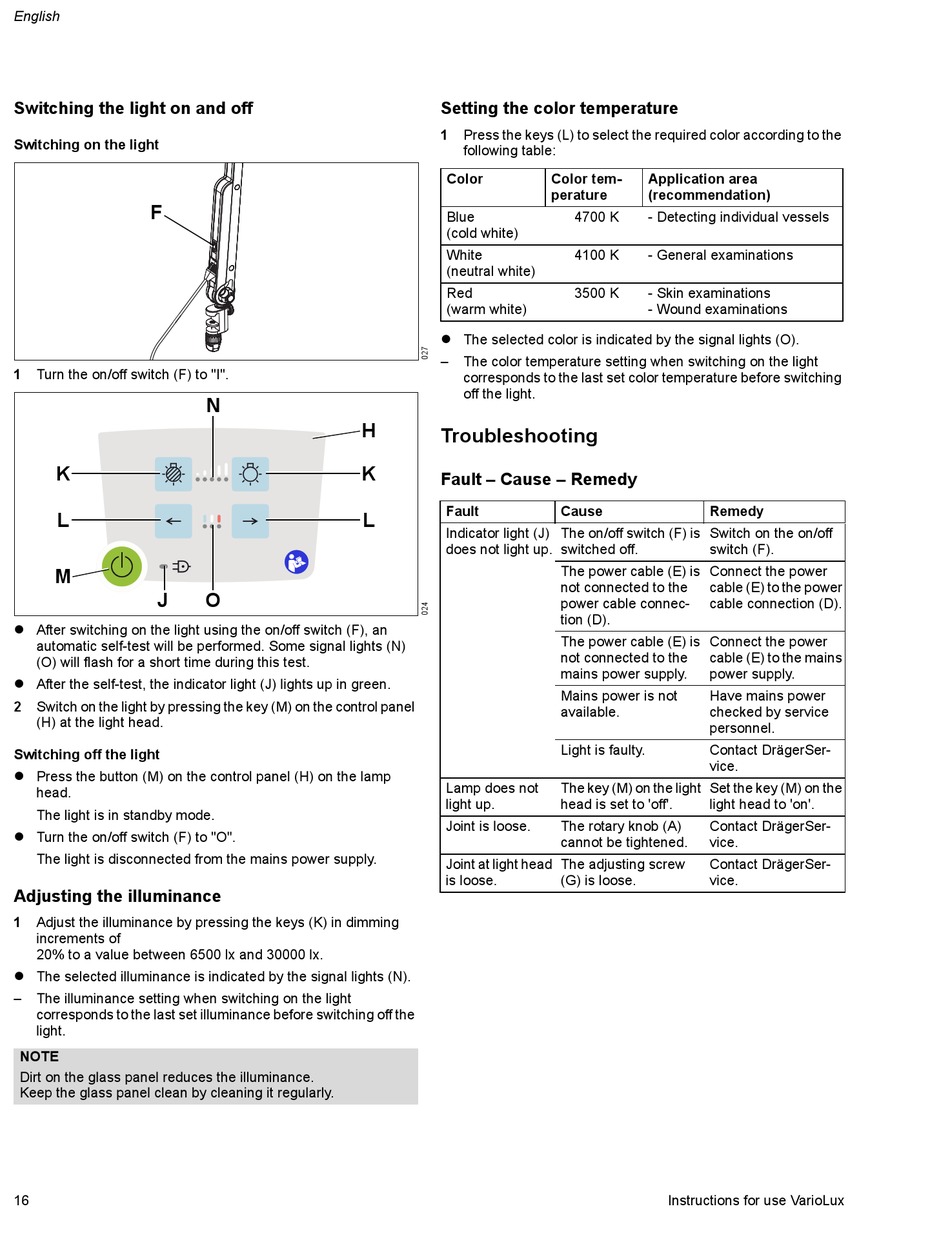

Switching the light on and off

Switching on the light
F
1 Turn the on/off switch (F) to "I".
K
L
M
J
 After switching on the light using the on/off switch (F), an
automatic self-test will be performed. Some signal lights (N)
(O) will flash for a short time during this test.
 After the self-test, the indicator light (J) lights up in green.
2 Switch on the light by pressing the key (M) on the control panel
(H) at the light head.
Switching off the light
 Press the button (M) on the control panel (H) on the lamp
head.
The light is in standby mode.
 Turn the on/off switch (F) to "O".
The light is disconnected from the mains power supply.
Adjusting the illuminance
1 Adjust the illuminance by pressing the keys (K) in dimming
increments of
20% to a value between 6500 lx and 30000 lx.
 The selected illuminance is indicated by the signal lights (N).
– The illuminance setting when switching on the light
corresponds to the last set illuminance before switching off the
light.
NOTE
Dirt on the glass panel reduces the illuminance.
Keep the glass panel clean by cleaning it regularly.
16
N
H
K
L
O

Setting the color temperature

1 Press the keys (L) to select the required color according to the
following table:
Color Color tem-
perature
Blue 4700 K
(cold white)
White 4100 K
(neutral white)
Red 3500 K
(warm white)
 The selected color is indicated by the signal lights (O).
– The color temperature setting when switching on the light
corresponds to the last set color temperature before switching
off the light.
Troubleshooting
Fault – Cause – Remedy
Fault Cause
Indicator light (J) The on/off switch (F) is
does not light up. switched off.
The power cable (E) is
not connected to the
power cable connec-
tion (D).
The power cable (E) is
not connected to the
mains power supply.
Mains power is not
available.
Light is faulty.
Lamp does not The key (M) on the light
light up. head is set to 'off'.
Joint is loose. The rotary knob (A)
cannot be tightened.
Joint at light head The adjusting screw
is loose. (G) is loose.
Application area
(recommendation)
- Detecting individual vessels
- General examinations
- Skin examinations
- Wound examinations
Remedy
Switch on the on/off
switch (F).
Connect the power
cable (E) to the power
cable connection (D).
Connect the power
cable (E) to the mains
power supply.
Have mains power
checked by service
personnel.
Contact DrägerSer-
vice.
Set the key (M) on the
light head to 'on'.
Contact DrägerSer-
vice.
Contact DrägerSer-
vice.
Instructions for use VarioLux
