Technical data of the VarioLux examination light
Ambient conditions
During operation
Temperature
Ambient pressure
Relative humidity
1)
During storage and transport
Temperature
Ambient pressure
Relative humidity
Photometric data
Maximum central illuminance
2)
Ec
Light field diameter at
0.5 m (19.7 in) distance
d10
d50
Color rendering index Ra (at
3500 K)
Color rendering index R9 (at
3500 K)
Setting the illuminance (5 lev-
els)
Level 1
Level 2
Level 3
Level 4
Level 5
Adjusting the color tempera-
ture (3 levels)
Cold white (blue)
Neutral white (white)
Warm white (red)
Maximum radiant output at
0.5 m (19.7 in) distance
Bulbs
Service life of the LED bulbs
Changing the LED bulbs
Electrical data
Nominal voltage
Frequency range
Effective power (P)
Apparent power (S)
22
10 °C to 40 °C
(50 °F to 104 °F)
700 hPa to 1060 hPa
(10.2 psi to 15.4 psi)
10 % to 95 % (no condensation)
–20 °C to 60 °C
(–4 °F to 140 °F)
500 hPa to 1060 hPa
(7.3 psi to 15.4 psi)
10 % to 95 % (no condensation)
30000 lx
200 mm (7.9 in)
90 mm (3.5 in)
96
89
6500 lx
12000 lx
18000 lx
24000 lx
30000 lx
4700 K ±2 %
4100 K ±2%
3500 K ±2%
2
105 W/m
LEDs
>50000 hours
Not possible
100 V~ to 240 V~
50/60 Hz
<18 W
8.3 VA to 12.3 VA
Physical data

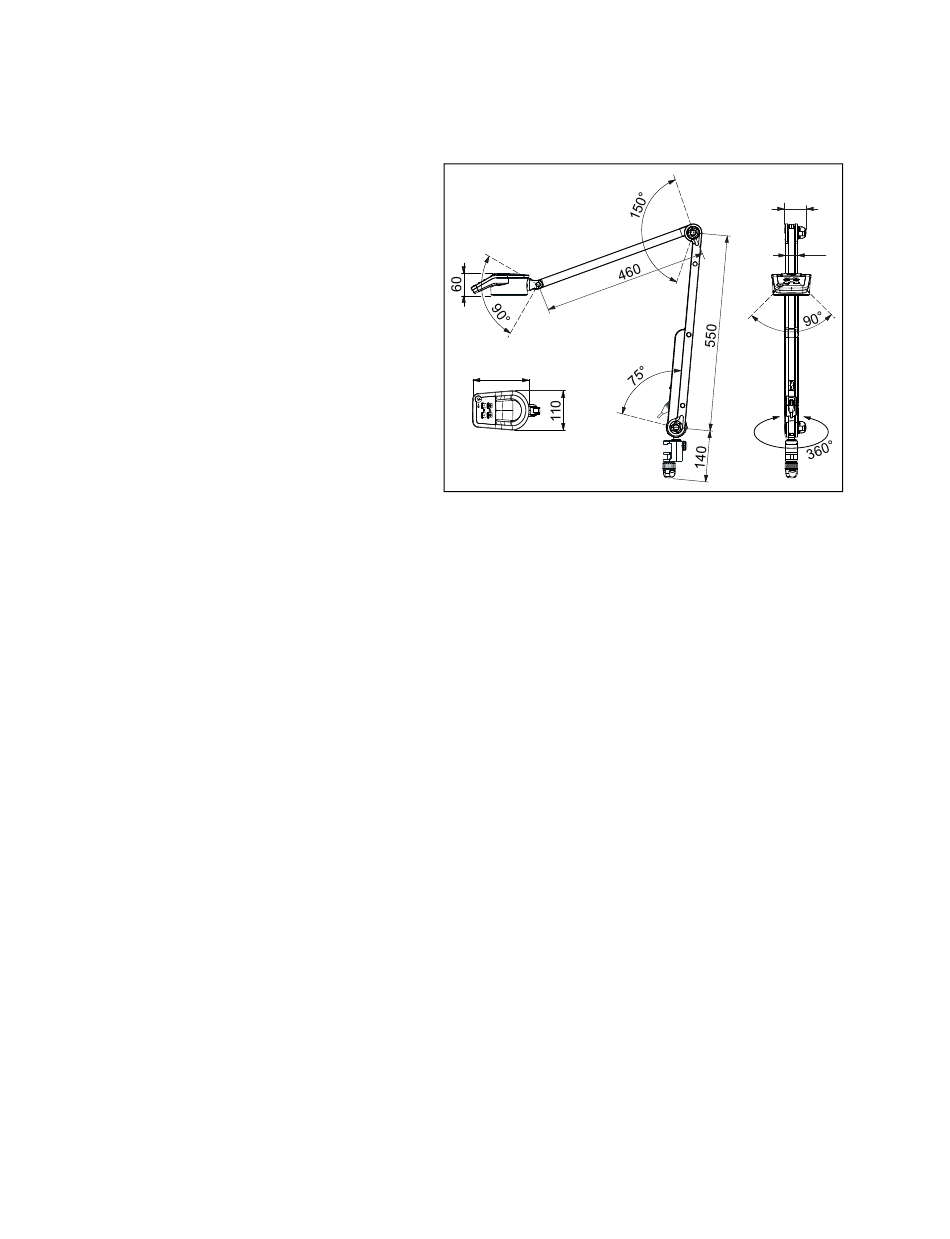

Dimensions (mm)
163
Weight
Classifications
Protection class acc. to
IEC 60601-1
Degree of protection
Electrical safety testing and
electromagnetic compatibility
according to
Operating mode
Classification Medical Device
Europe
UMDNS code
(Universal Medical Device No-
menclature System)
GMDN code
(Global Medical Device No-
menclature)
1) Storage only in closed or roofed rooms
2) 0.5 m (19.7 in) distance to the light exit point and a color temperature of
4400 K
60
37
1.5 kg (3.3 Ib)
Protection class II
IP 20
IEC 60601-1
IEC 60601-2-41
IEC 60601-1-2
Continuous operation
Class I
12-347
12276
