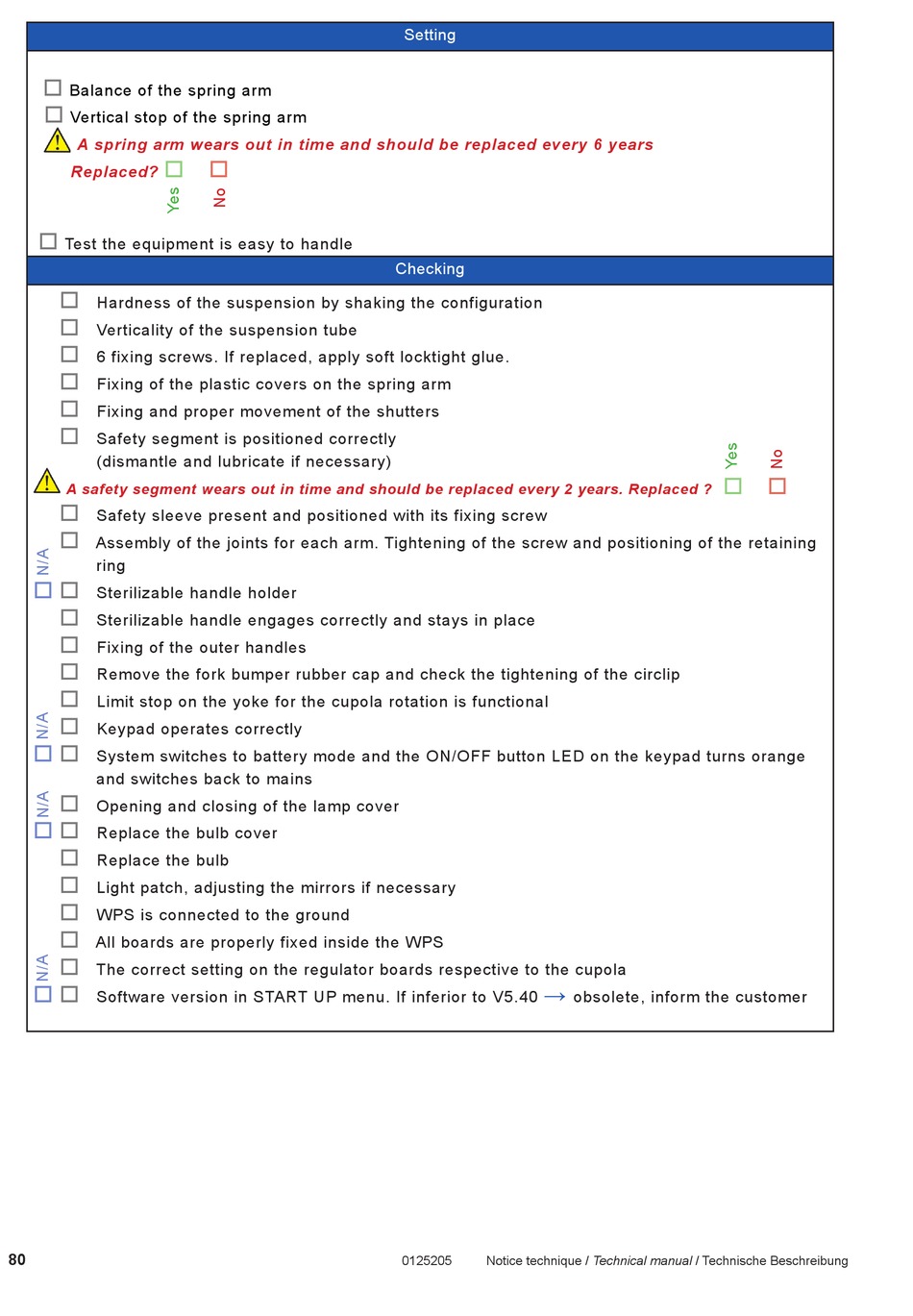

Balance of the spring arm

Vertical stop of the spring arm
A spring arm wears out in time and should be replaced every 6 years

Replaced?

Test the equipment is easy to handle
 
Hardness of the suspension by shaking the configuration
 
Verticality of the suspension tube
 
6 fixing screws. If replaced, apply soft locktight glue.
 
Fixing of the plastic covers on the spring arm
 
Fixing and proper movement of the shutters
 
Safety segment is positioned correctly
(dismantle and lubricate if necessary)
A safety segment wears out in time and should be replaced every 2 years. Replaced ?
 
Safety sleeve present and positioned with its fixing screw
 
Assembly of the joints for each arm. Tightening of the screw and positioning of the retaining
ring
 
Sterilizable handle holder
 
Sterilizable handle engages correctly and stays in place
 
Fixing of the outer handles
 
Remove the fork bumper rubber cap and check the tightening of the circlip
 
Limit stop on the yoke for the cupola rotation is functional
 
Keypad operates correctly
 
System switches to battery mode and the ON/OFF button LED on the keypad turns orange
and switches back to mains
 
Opening and closing of the lamp cover
 
Replace the bulb cover
 
Replace the bulb

Light patch, adjusting the mirrors if necessary
 
WPS is connected to the ground

All boards are properly fixed inside the WPS

The correct setting on the regulator boards respective to the cupola
 
Software version in START UP menu. If inferior to V5.40
80

Setting
Checking
→
0125205 Notice technique / Technical manual / Technische Beschreibung

obsolete, inform the customer

