10.3.4. Display of the leDs
LED 2
LED 1

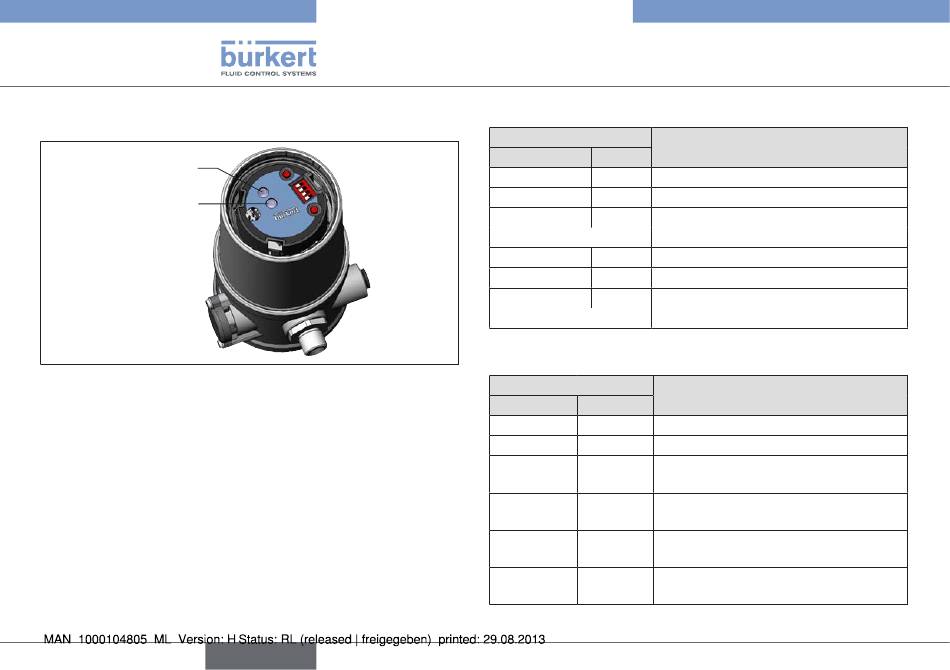

Fig. 13: Display of the LEDs
LED 1 Display of
AUTO, MANU, X.TUNE and FAULT
(green / red)
LED 2 Display of state of actuator
(open, closed, opens or closes)
(green / yellow)
20
english
Type 8696
Start-up
led 1 (green / red)
LeD States
Display
green red
on off Acceleration phase when Power ON
flashes slowly off Operating status AUTO (AUTOMATIC)
flashing flashing
MANUAL operating status
alternating
flashes quickly off X.TUNE function
off on ERROR (see operating instructions)
flashing flashing AUTO operating status for sensor break
detection
slow
Tab. 8: Display LED 1
led 2 (green / yellow)
LeD States
Display
green yellow
on off Actuator closed
off on Actuator open
flashes Remaining control deviation
off
slowly (actual value > set-point value)
flashes Remaining control deviation
off
slowly (actual value < set-point value)
flashes
off Closing in MANUAL operating status
quickly
flashes
off Opening in MANUAL operating status
quickly
Tab. 9: Display LED 2
