bürkert TopControl Basic 8696 Schnellstartanleitung Seite 17

note!
avoid maladjustment of the controller due to an incorrect
pilot pressure or applied operating medium pressure!
• Run X.TUNE whenever the pilot pressure (= pneumatic auxil-
iary energy) is available during subsequent operation.
• Run the X.TUNE function preferably without operating medium
pressure to exclude interference caused by flow forces.
To run X.TUNE, the positioner must be in the AUTOMATIC
operating status (DIP switch 4 = OFF).
→
Screw off the transparent cap of the positioner to operate the
keys and DIP switches.
→
Start the X.TUNE by pressing key 1
While the X.TUNE is running, LED 1 flashes quickly (green).
LED 2
LED 1

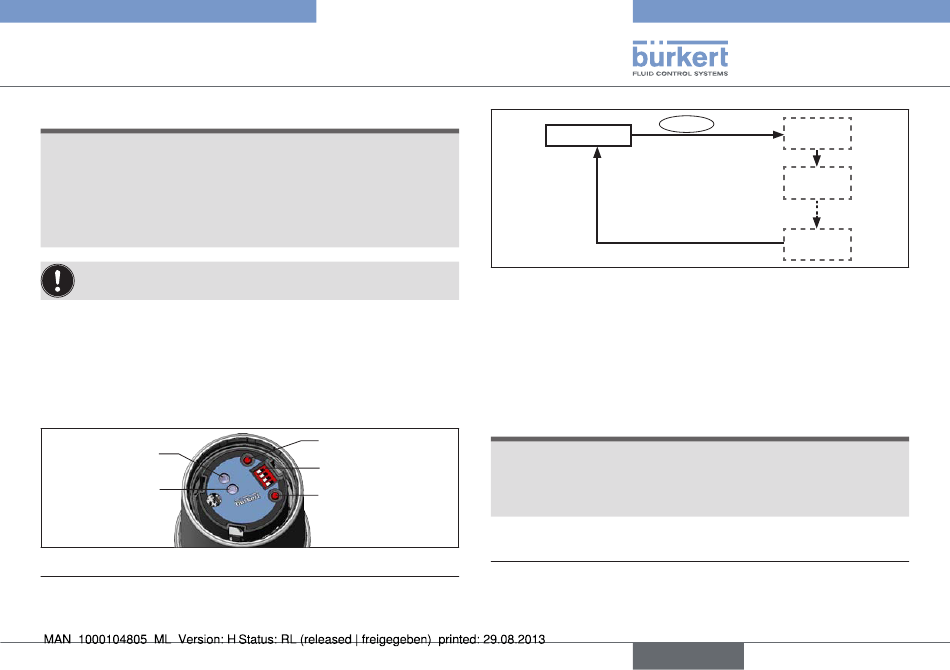

Fig. 9: Starting X.TUNE
The X.TUNE can also be started via communications software.
4)
Type 8696
Start-up
for 5 s.
4)
Key 1
DIP Switches
Key 2
X.TUNE
Fig. 10: Automatic adjustment X.TUNE
When the automatic adjustment is complete, LED 1 flashes slowly
(green) .
5)
The changes are automatically transferred to the memory (EEPROM)
provided the X.TUNE function is successful.
note!
damage or malfunction due to penetration of dirt and
humidity!
• To observe protection class IP65 / IP67, screw the transparent
cap in all the way.
→
Close the device (assembly tool: 674078
if a fault occurs, LED 1 is lit red.
5)
The assembly tool (674078) is available from your Bürkert sales
6)
office.
english
Key 1 5 s
X.TUNE
STARTED
TUNE #0
INIT
X.TUNE
READY
).
6)
