6.4. mechanical data
Dimensions See data sheet
Body material exterior:
interior:
Sealing material EPDM / FKM
Stroke range
of valve spindle Series 2103
and 23xx
Third-party devices
(modified guide
element required)
6.5. Type label
Supply voltage / Control
Type
8696 24 V DC
single act
Pmax 7bar
Tamb 0°C - +55°C
Ser.-Nr. 001000
00185118
Identification number

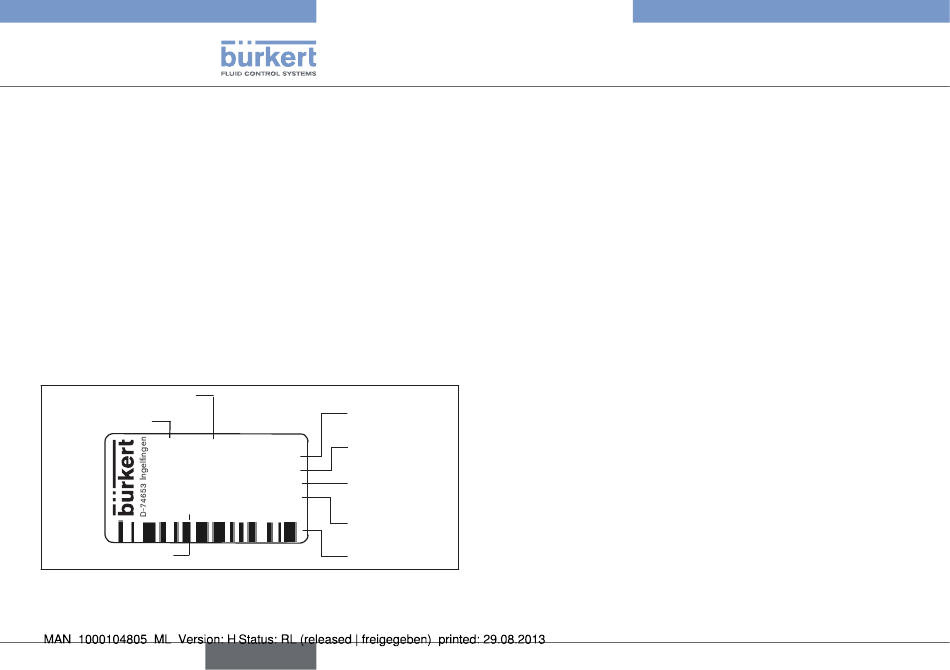

Fig. 4: Type label (example)
10
PPS, PC, VA
PA6; ABS
3 - 32 mm
3 - 40 mm
Control function
- Pilot valve
Max. pressure
Pilot 0,6
Max. ambient
temperature
ce
W14UN
Serial number -
CE mark
Bar-code
english
Type 8696
Technical data
6.6. pneumatic data
Control medium: neutral gases, air
Quality classes in accordance with DIN ISO
8573-1
Dust content Class 5:
Water content Class 3:
Oil content Class 5:
Temperature range
control medium:
Pressure range
control medium:
Air output of pilot valve:
Connections:
23xx / 2103 (Element):
Model third-party device:
max. particle size 40 µm,
max. particle density 10 mg/m³
max. pressure dew point
- 20 °C or min. 10 °C below the
lowest operating temperature
max. 25 mg/m³
0 – +50 °C
3 – 7 bar
7 l / min (for aeration and deaeration)
N
(Q - value according to definition for
Nn
pressure drop from 7 to 6 bar absolute)
Plug-in hose connector ∅ 6mm / 1/4"
Socket connection G 1/8
Socket connection G 1/8
with M5 connection for connecting to
the third-party device
