Part Name & No.

Spring Clip 15

X-element 13

Air Vent Valve Seat 19

X-element Guide 12

Screen 14

Bimetal 17/

Air Vent Valve 16,19/
Spring Clip 15
Air Vent Valve Seat 19

Bimetal Case 18

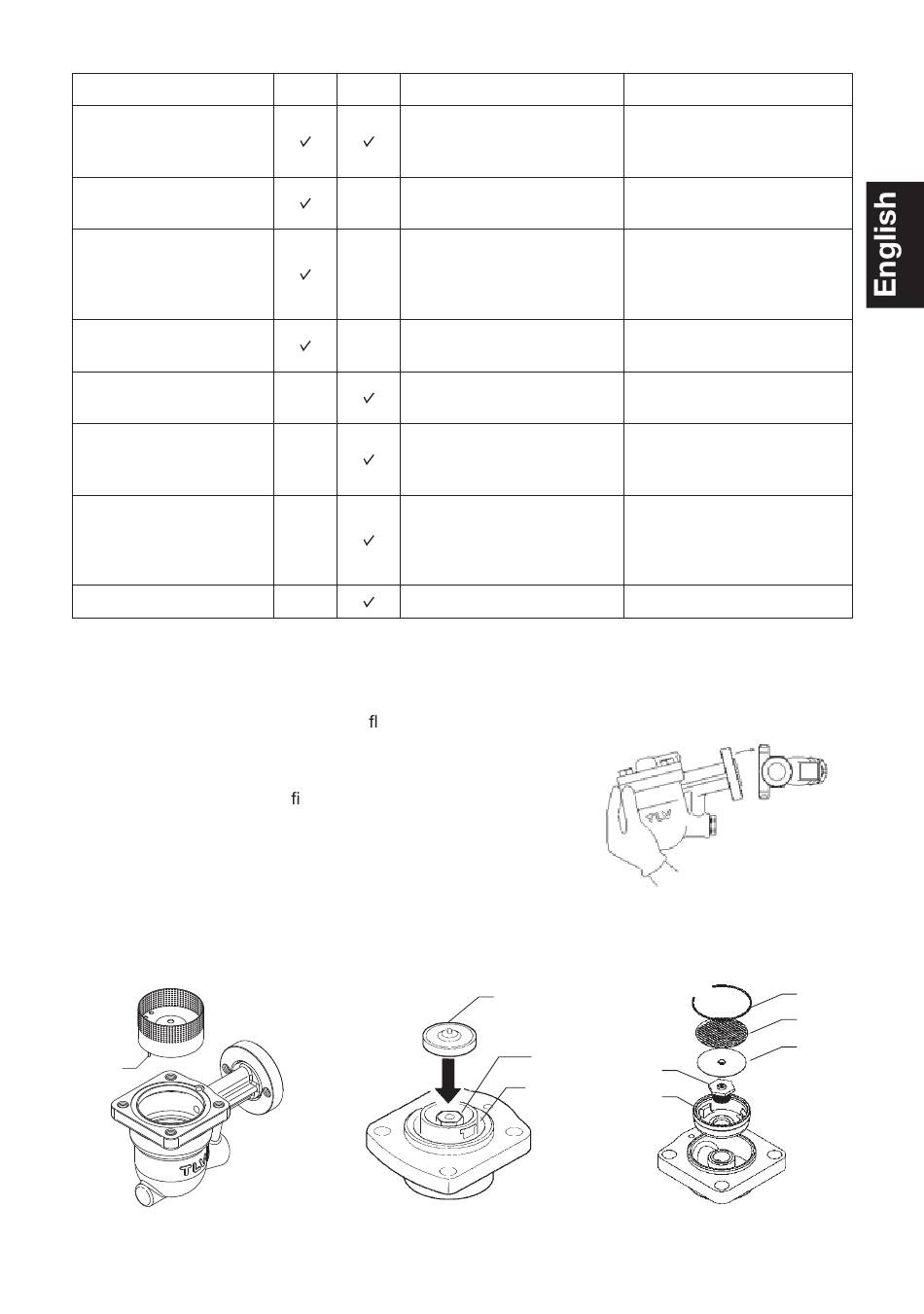

Attaching the Trap Unit to the Connector Body (Figure A)
1. If attaching a new trap unit, be sure to remove the
protective cap from the connector ange. Be careful not to
drop the gaskets when removing the cap.
2. Grasp the end of the trap unit and align its gasket housing
with the indentation on the connector body.
3. Once aligned, insert and nger tighten the connector bolts.
Verify that the trap unit is within the allowable inclination.
Figure B
*
* Tab
FJ32-X FJ32-B
Pinch the insides together
and remove from the
X-element guide
Remove from the
X-element guide
Remove with a socket
wrench
Remove without bending
Remove, being careful not
to misshape
Remove air vent parts
from cover
Remove with a socket
wrench
Remove from the cover
Figure C-1
̶ 14 ̶
Disassembly
Insert securely into the
groove in the guide
Insert and ensure correct
orientation (Fig. C-1)
Consult the table of
tightening torques and
tighten to the proper
torque
Insert the X-element
gently
Replace, being careful not
to misshape
Make sure to reinsert in
the proper orientation
(Fig. C-2)
Consult the table of
tightening torques and
tighten to the proper
torque
Place it in the cover
13
19
12
Reassembly
Figure A
Figure C-2
11
14
17
19
18
