6. Piping Arrangement
Requirement
Install a catchpot with the
proper diameter.
Make sure the flow of
condensate is not
obstructed.
To prevent rust and scale
from flowing into the trap,
connect the inlet pipe 25 to
50 mm (1 to 2 in.) above
the base of the T - pipe.
When installing on the
blind end, make sure
nothing obstructs the flow
of condensate.

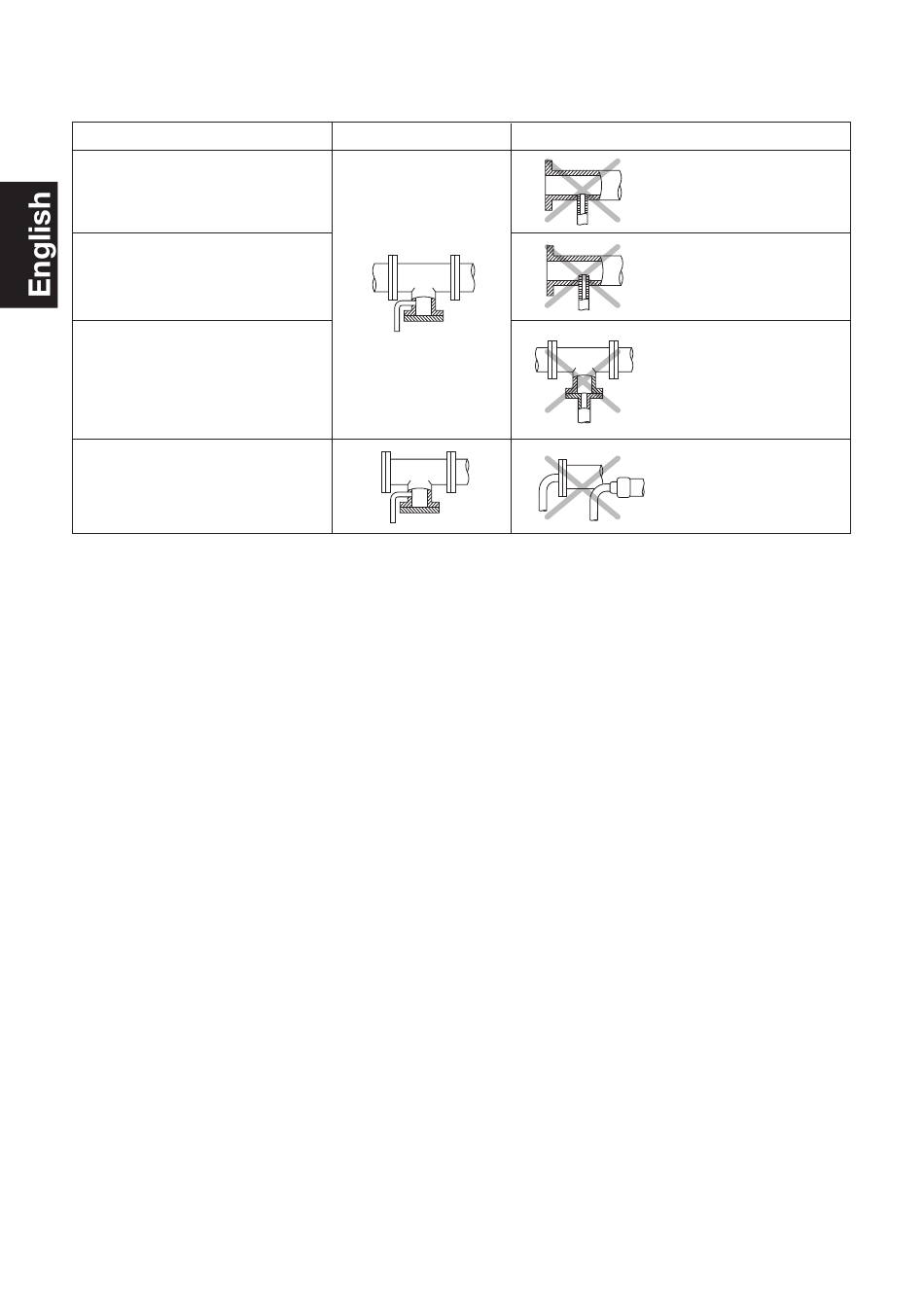

Correct
̶ 11 ̶
Incorrect
Diameter is too
small.
Diameter is too
small and inlet
protrudes into pipe.
Rust and scale
flow into the trap
with the
condensate.
Condensate
collects in the
pipe.
