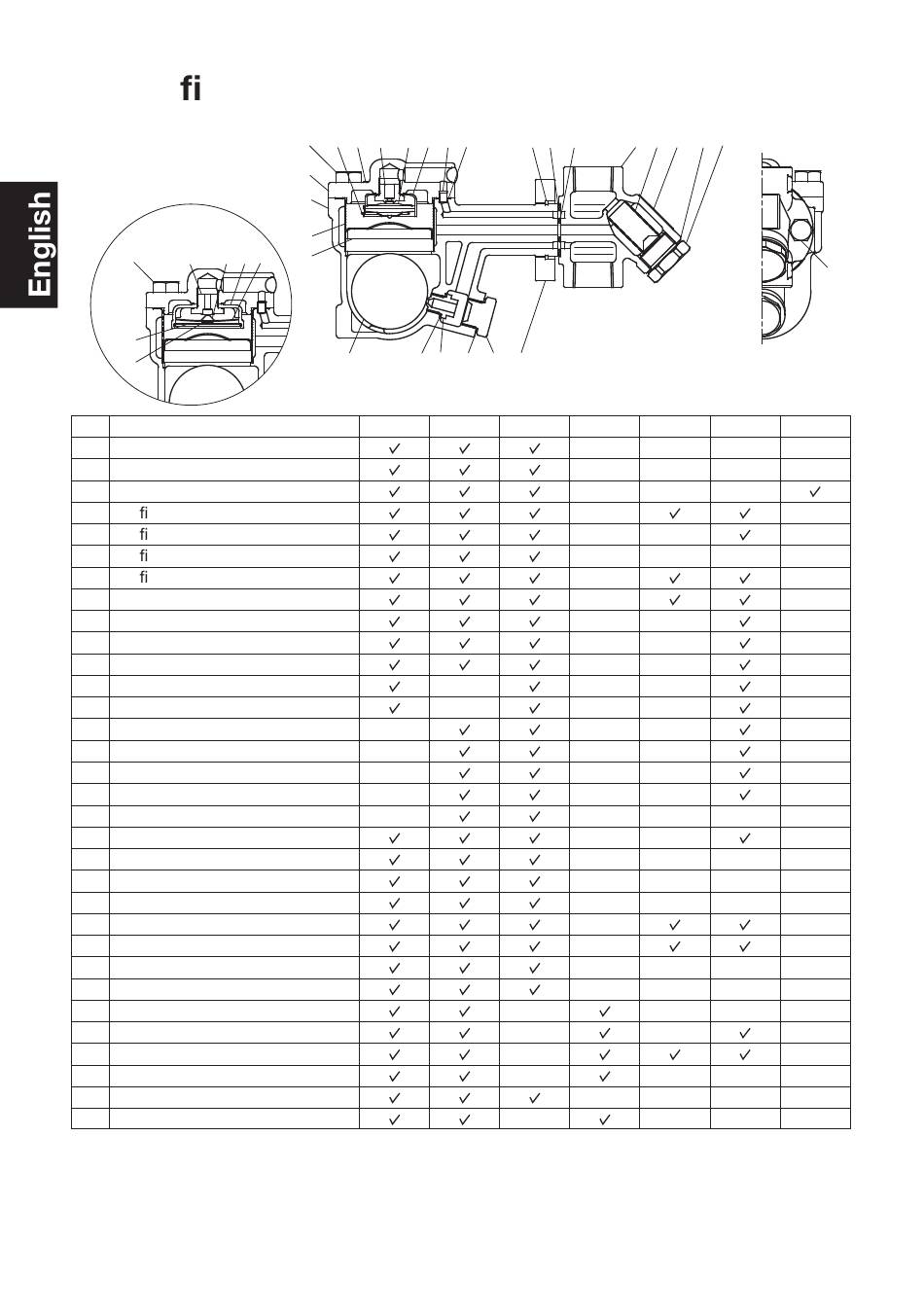

3. Con guration

FJ32-X
FJ32-B
⑳ ⑲ ⑯⑱ ⑰
⑭
⑮
No.

Part Name

1

Trap Body

2

Cover

3 Float
4 Ori ce Gasket
5 Ori ce
6 Ori ce Plug
7 Ori ce Plug Gasket
8 Cover Gasket
9 Float Cover
10 Screen
11 Spring Clip
12 X-element Guide
13 X-element
14 Screen
15 Spring Clip
16 Air Vent Valve Plug
17 Bimetal
18 Bimetal Case
19 Air Vent Valve Seat
20 Cover Bolt
21 Connector
22 Connector Flange
23 Inner Connector Gasket
24 Outer Connector Gasket
25 Connector Ring
26 Nameplate
27 Connector Body
28 Screen
29 Screen Holder Gasket
30 Screen Holder
31 Connector Bolt
32 Nameplate
T =Trap Unit
C =Connector Unit (F46)
M =Maintenance Kit
R =Repair Kit
F =Float
⑳ ⑪ ㉖ ⑲ ⑬ ⑫ ㉑ ⑧
②
①
⑩
⑨
③ ④ ⑤ ⑦
FJ32-X FJ32-B
̶ 7 ̶
㉕ ㉔ ㉓ ㉗ ㉘ ㉜ ㉙ ㉚
⑥ ㉒
T C
㉛
M R F
