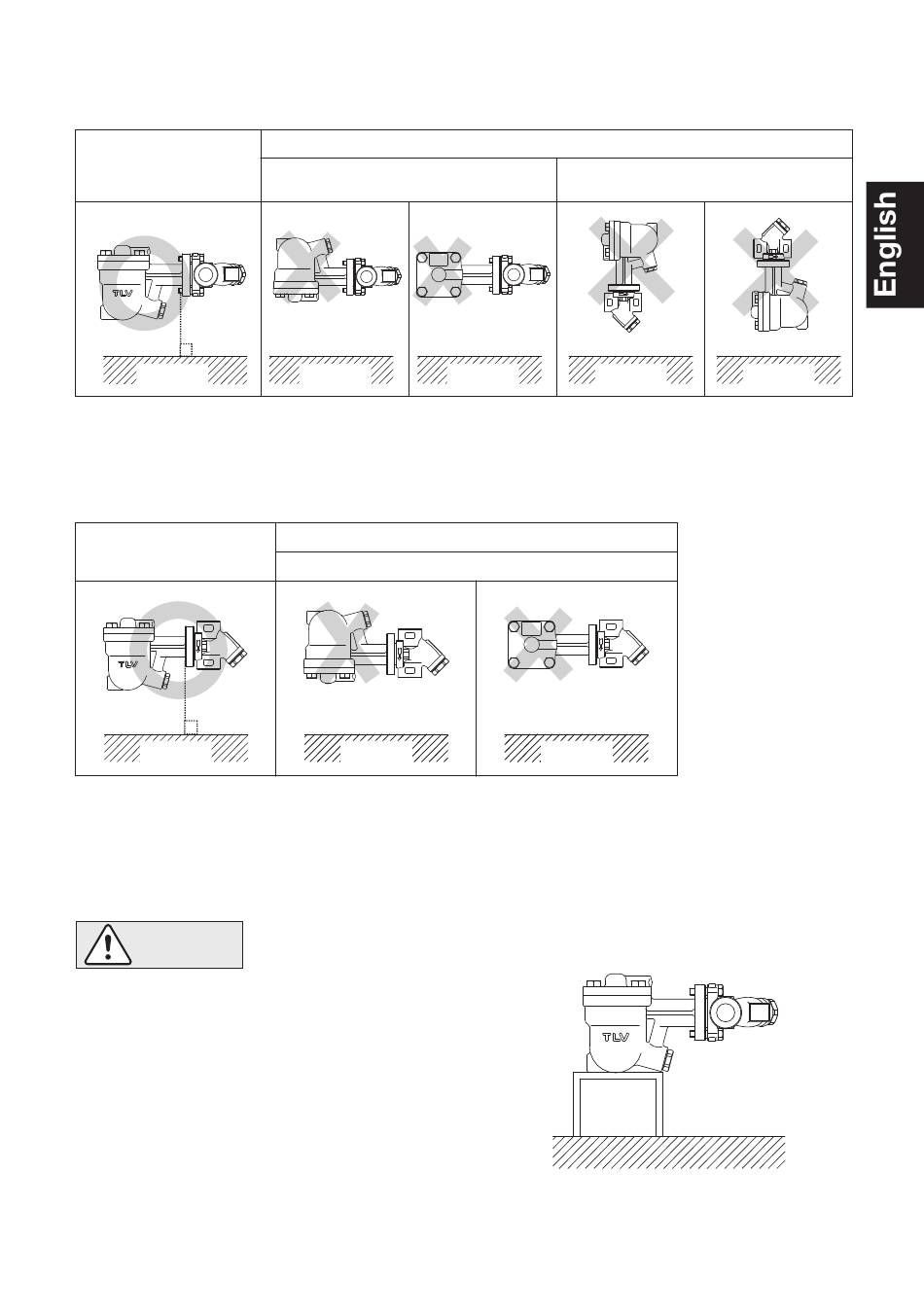

5.2 Installation Examples

Horizontal Piping
Correct
Ground
Note: If the product is installed incorrectly, it may not be possible to obtain the specified
performance. There is also a risk of serious accidents on the outlet (secondary) side. The
examples shown here are only a selection, and are exclusively for explanation purposes.
Vertical Piping
Correct
Ground
Note: If the product is installed incorrectly, it may not be possible to obtain the specified
performance. There is also a risk of serious accidents on the outlet (secondary) side. The
examples shown here are only a selection, and are exclusively for explanation purposes.
5.3 Note for Screwed Connection
CAUTION
When products with screwed connections are
installed on horizontal piping, there is a danger that
the weight of the trap unit will cause the connector
body to rotate on the pipe, putting the trap
mechanism out of the horizontal plane. To prevent
this, tighten the screws securely. In cases where the
product is affected by vibrations or by external
contact, it is recommended that the trap unit should
be supported to prevent rotation (sample support
shown to the right).
Nameplate is not facing upwards
Ground
Incorrect
Nameplate is not facing upwards.
Ground
̶ 10 ̶
Incorrect
Connector Flange is not
in the vertical plane
Ground Ground
Ground
