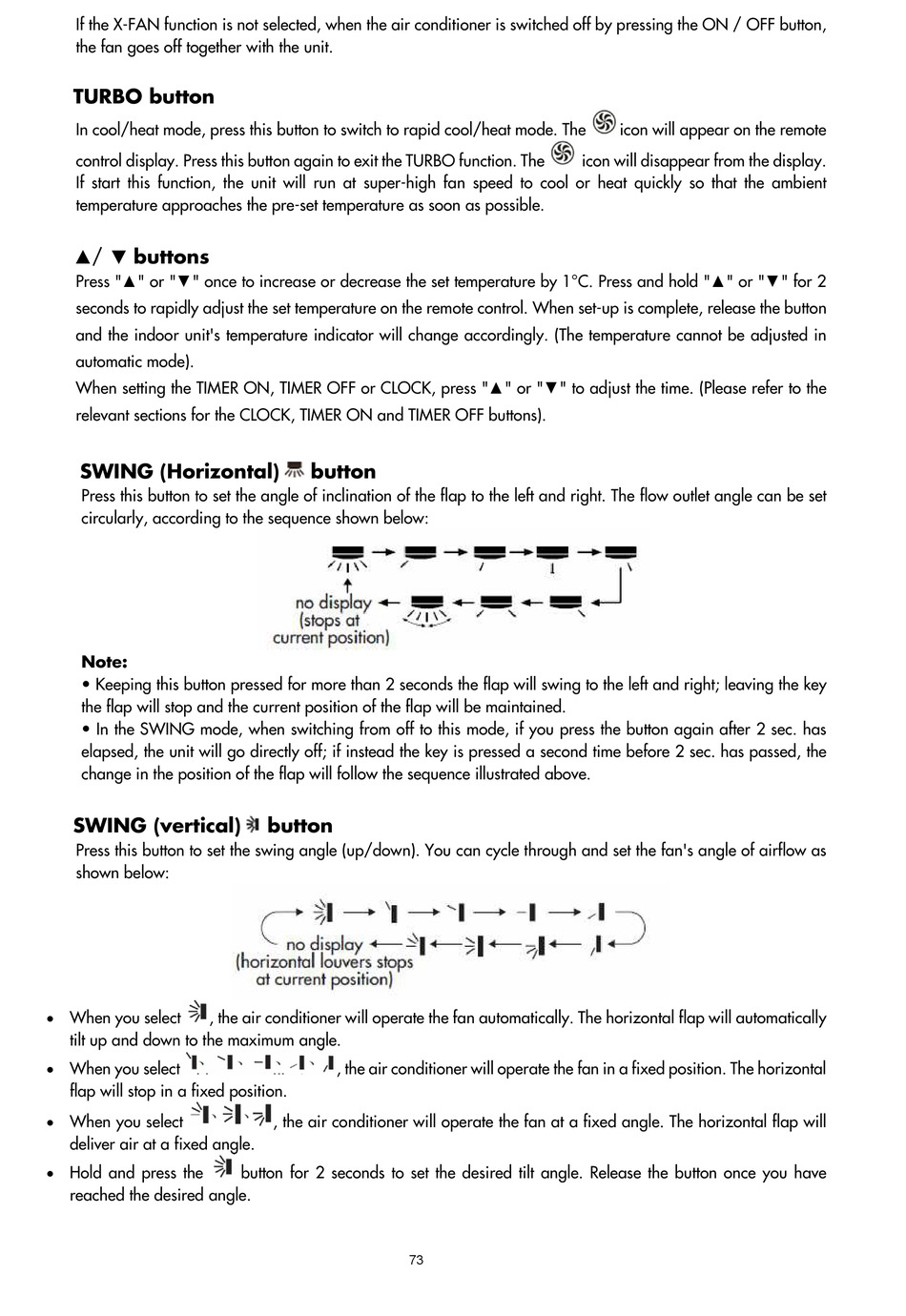

Argo MONOSPLIT R32 WIFI Bedienungs- Und Wartungsanleitung Seite 73

If the X-FAN function is not selected, when the air conditioner is switched off by pressing the ON / OFF button,
the fan goes off together with the unit.
TURBO button
In cool/heat mode, press this button to switch to rapid cool/heat mode. The
control display. Press this button again to exit the TURBO function. The
If start this function, the unit will run at super-high fan speed to cool or heat quickly so that the ambient
temperature approaches the pre-set temperature as soon as possible.
▲/ ▼ buttons
Press "▲" or "▼" once to increase or decrease the set temperature by 1°C. Press and hold "▲" or "▼" for 2
seconds to rapidly adjust the set temperature on the remote control. When set-up is complete, release the button
and the indoor unit's temperature indicator will change accordingly. (The temperature cannot be adjusted in
automatic mode).
When setting the TIMER ON, TIMER OFF or CLOCK, press "▲" or "▼" to adjust the time. (Please refer to the
relevant sections for the CLOCK, TIMER ON and TIMER OFF buttons).
SWING (Horizontal)
Press this button to set the angle of inclination of the flap to the left and right. The flow outlet angle can be set
circularly, according to the sequence shown below:
Note:
• Keeping this button pressed for more than 2 seconds the flap will swing to the left and right; leaving the key
the flap will stop and the current position of the flap will be maintained.
• In the SWING mode, when switching from off to this mode, if you press the button again after 2 sec. has
elapsed, the unit will go directly off; if instead the key is pressed a second time before 2 sec. has passed, the
change in the position of the flap will follow the sequence illustrated above.
SWING (vertical)
Press this button to set the swing angle (up/down). You can cycle through and set the fan's angle of airflow as
shown below:
 When you select , the air conditioner will operate the fan automatically. The horizontal flap will automatically
tilt up and down to the maximum angle.
 When you select
flap will stop in a fixed position.
 When you select
deliver air at a fixed angle.
 Hold and press the
reached the desired angle.
button
button
, the air conditioner will operate the fan in a fixed position. The horizontal
, the air conditioner will operate the fan at a fixed angle. The horizontal flap will
button for 2 seconds to set the desired tilt angle. Release the button once you have
73
icon will appear on the remote
icon will disappear from the display.
