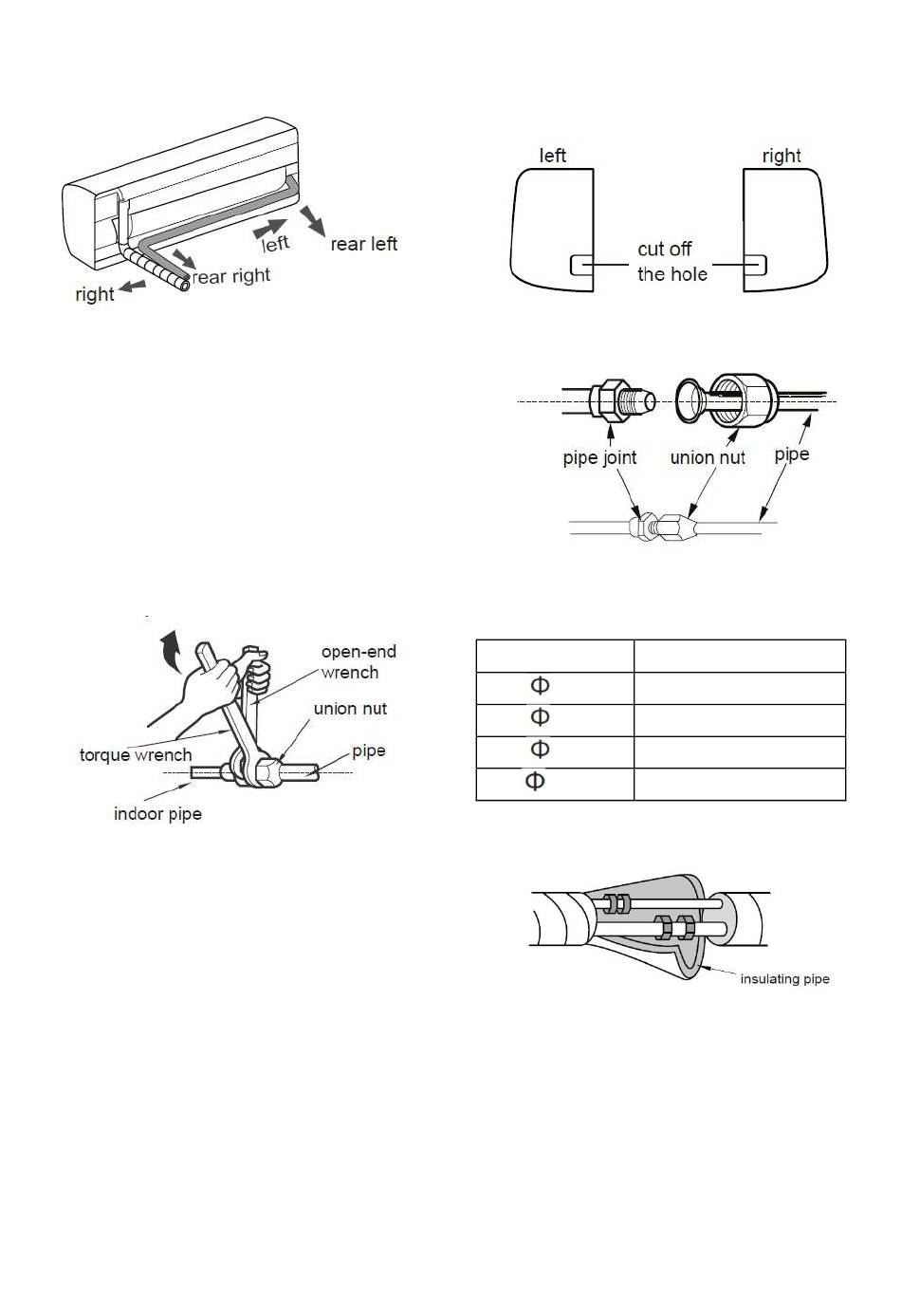

Step four: outlet pipe
The pipe can be brought out in various different
directions: right, rear right, left or rear left.
Step five: connect the indoor unit pipe
1. Position the pipe joint in the corresponding
bellmouth.
2.
Pre-tighten the union nut by hand.
3.
Adjust the torque according to the following
table. Position the open-end spanner on the
pipe joint and position the torque wrench on
the union nut. Tighten the nut with the
wrench.
Wrap the indoor pipe and the joint of the connecting
pipe with an insulating tube. Then wrap with tape.
Once you have selected the direction of the
outlet (left or right), drill the corresponding hole
at the bottom.
Hex nut diameter
6.35
9.52
12.7
15.88
105
Tightening torque (Nm)
15 – 20
30 – 40
45 – 55
60 – 65
