CA 2451 PCB Individual In/Out
8 inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-pin Sub-D (female) corresponding to connection of TASCAM-DA recorder
Frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz - 10 kHz (-3 dB)
8 outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-pin Sub-D (female) corresponding to connection of TASCAM-DA recorder
Frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz - 10 kHz (-3 dB)
Output level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 dBu for max. level
Input level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 dBu for max. level (without limiter)

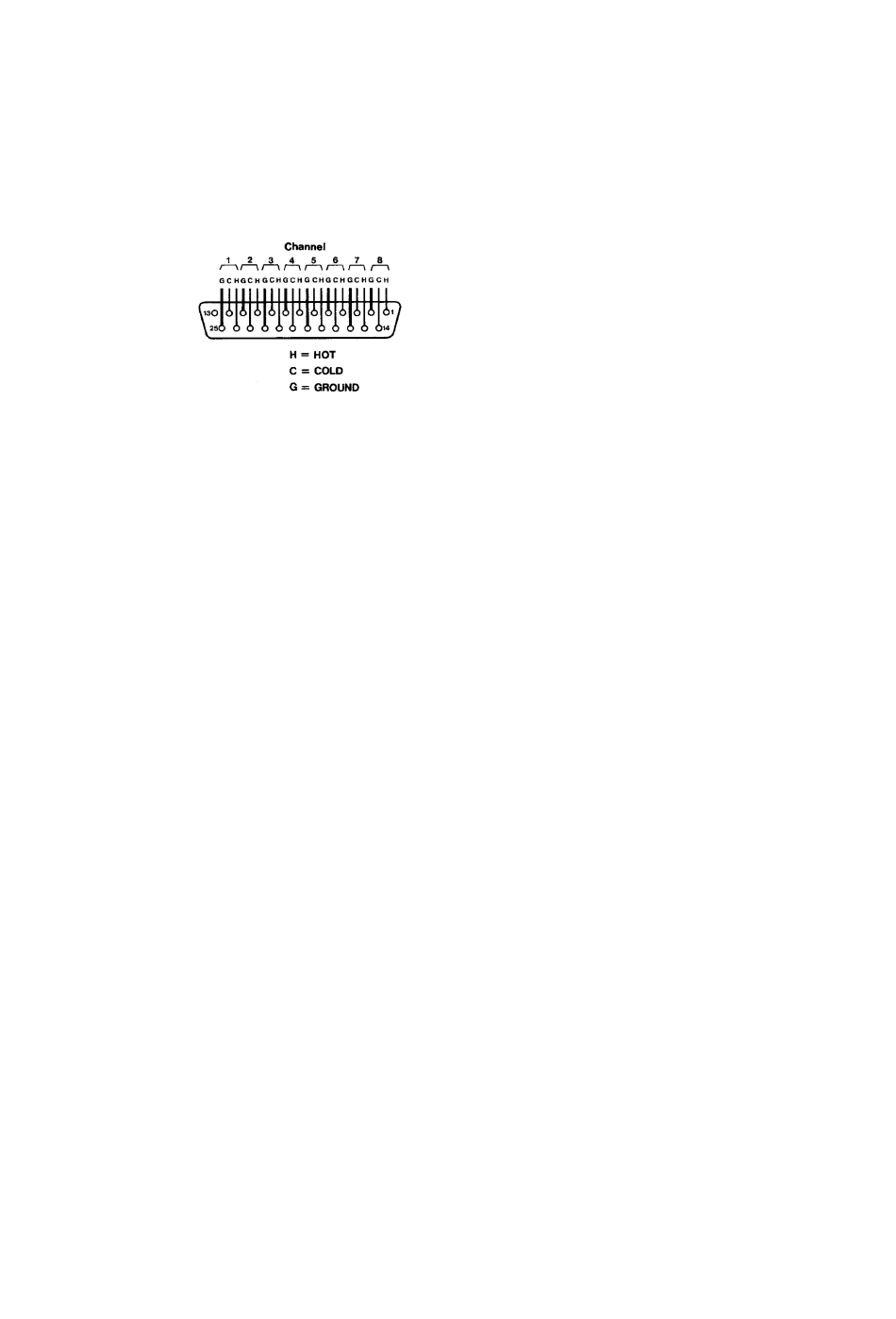

Connection:
MCW-D 100 Signal Flow and CA 2451 Connection
Function
Connection (Hot, Cold, Ground)
Output 1
24, 12, 25
Output 2
10, 23, 11
Output 3
21, 9, 22
Output 4
7, 20, 8
Output 5
18, 6, 19
Output 6
4, 17, 5
Output 7
15, 3, 16
Output 8
1, 14, 2
Input 1
24, 12, 25
Input 2
10, 23, 11
Input 3
21, 9, 22
Input 4
7, 20, 8
Input 5
18, 6, 19
Input 6
4, 17, 5
Input 7
15, 3, 16
Input 8
1, 14, 2
CA 2455 DC Power Supply Unit
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V (± 0.5 V) DC
Current consumption . . . . . . . . . . . . . . . . . . . . . . . . . max. 333 mA
Input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 - 240 V AC 50/60 Hz
Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Euro plug, other plugs upon request
CA 2456 Single charging unit
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ansmann ACS 410 Traveller spezial
Input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 240 V AC 50/60 Hz, adapter for Europe, UK, USA and Australia
Charging current . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 650 mA (initial charging with approx. 80 mA)
Charging control . . . . . . . . . . . . . . . . . . . . . . . . . . . . ∆ U-recognition and safety timer
Additional function . . . . . . . . . . . . . . . . . . . . . . . . . . Pre-discharge via button
Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . red LED to indicate charging status
Charging time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 hours when the battery is completely empty
38
Identical with Master Output (XLR)
First allocated delegate microphone unit
Second allocated delegate microphone unit
Third allocated delegate microphone unit
Fourth allocated delegate microphone unit (optional)
Fifth allocated delegate microphone unit (optional)
Sixth allocated delegate microphone unit (optional)
Chairman microphone unit
Input original language (Floor lang.)
Input foreign language 1
Input foreign language 2
Input foreign language 3
Input foreign language 5 (optional)
Input foreign language 6 (optional)
Input foreign language 7 (optional)
Input foreign language 4
green LED to indicate charged / trickle charge status
red flashing LED indicates wrong polarity and defective battery
standard
standard
standard
standard
option
option
option
standard
Individual In
standard
standard
standard
option
option
option
standard
