3.
MCW-D 1011/1021/1041 and MCW-D 1013/1023/1043 Microphone Units

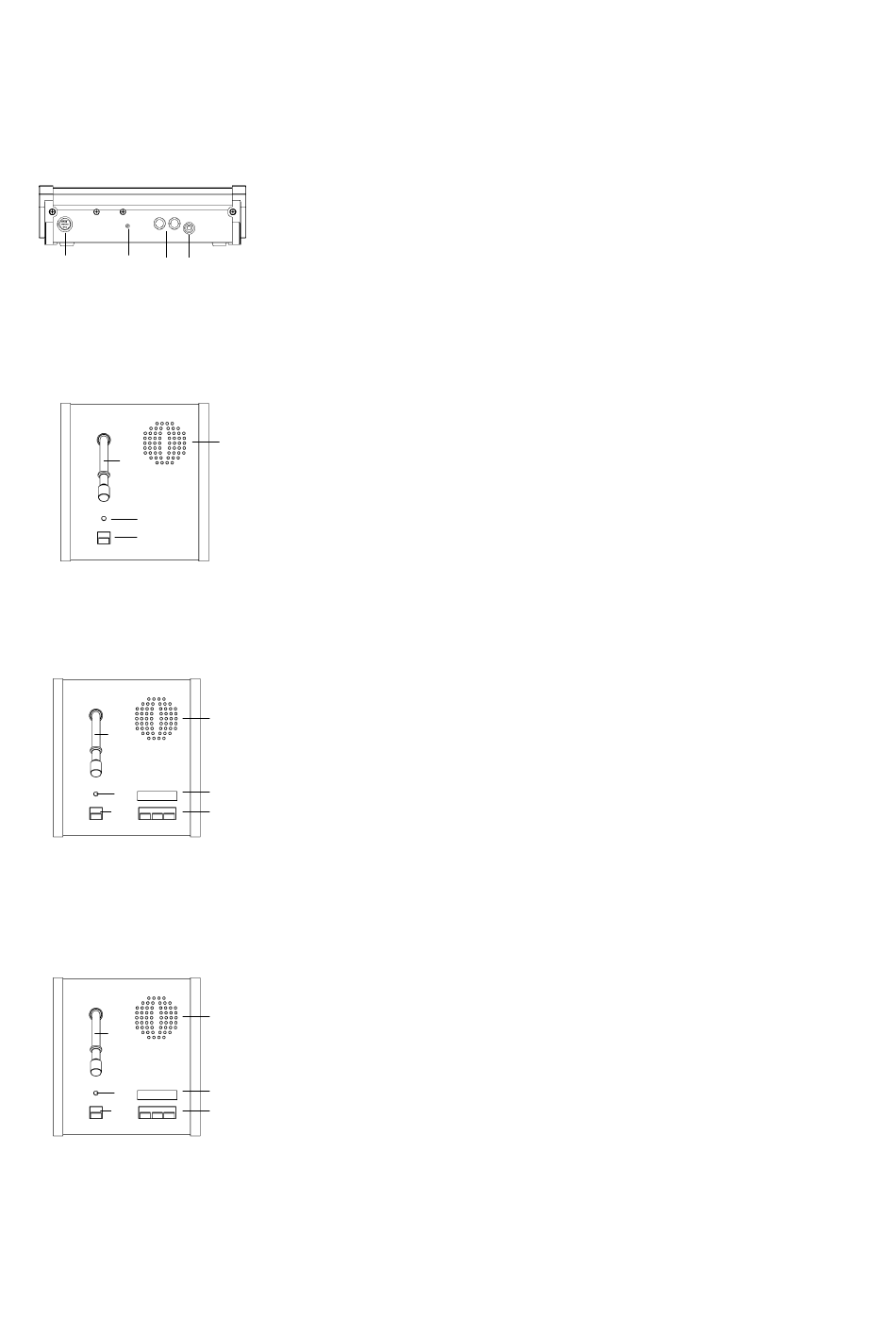

3.1 Controls and Indicators
Rear view of MCW-D 1011/1021/1041 Delegate and MCW-D 10213/1023/1043 Chairman Microphone Unit
(1)
(2)
(3)
Top View MCW-D 1011/1021 Delegate Microphone Unit
(5)
(7)
(8)
Top View MCW-D 1041 Delegate Microphone Unit
(5)
(7)
(8)
Top View MCW-D 1013/1023 Chairman Microphone Unit
(5)
(7)
(8)
28
(4)
(6)
(6)
(11)
(12)
(6)
(11)
(12)
(1)
Multi-function socket (connection of programming device, external
charger or DC-supply)
(2)
Operating control LED
(3)
Charging contacts for MCW-D 10, LE-D 10 charger
(4)
Mini stereo jack (3.5 mm) for the connection of recorders or headphones
(e.g. DT 301)
(5)
Gooseneck microphone with illuminated ring
(6)
Loudspeaker (MCW-D 1021 only)
(7)
LED to indicate the function (green / red)
(8)
Microphone button
(5)
Gooseneck microphone with illuminated ring
(6)
Loudspeaker
(7)
LED to indicate the function (green / red)
(8)
Microphone button
(11)
LC-Display
(12)
Buttons for adjustments (refer to chapter 3.2.5)
(5)
Gooseneck microphone with illuminated ring
(6)
Loudspeaker (MCW-D 1023 only)
(7)
LED to indicate the function (green / red)
(8)
Microphone button
(9)
Clear button for clearing the delegate microphone units
(10)
Function button for optional functions
