2.2 CA 2451 Analogue Individual Inputs and Outputs
Using the CA 2451 PCB the audio signals of the individual microphone units are available separately and the individual audio
inputs can be used for the aural channels in interpreting applications (original sound and foreign languages). Depending on the
number of the installed CA 2450 PCBs (1 transmitting/receiving channel), it is possible to listen to separate audio signals of max. 7
switched on microphone units and max. 8 audio signals for the aural channels.
Important:
The CA 2451 PCB is installed at the factory or at a local authorized distributor in your country.

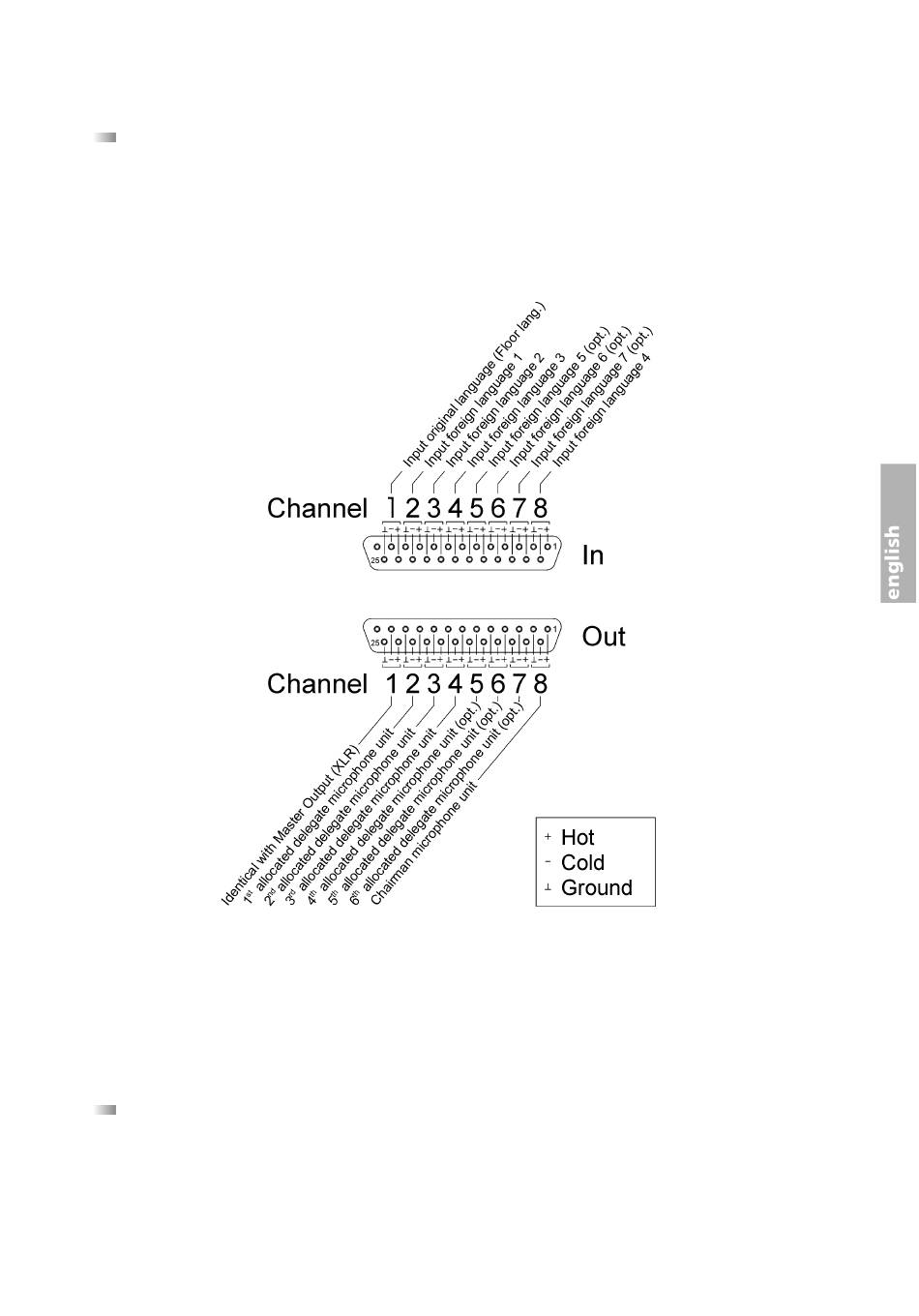

The pin connection corresponds to Standard-Tascam-DA-Recorders. As an input cable (25-pin Sub-D, male to XLR, female) use a
standard cable of the type Tascam CU SD 303 (3 m) or Tascam CU SD 305 (5 m).
As an output cable (25-pin Sub-D, male to XLR, male) use a standard cable of the type Tascam CU SD 203 (3 m) or Tascam CU SD 205
(5 m).
2.3 CA 2452 Digital Inputs and Outputs AES/EBU and S-PDIF
This PCB is not yet available.
27
