Establishing a
1
connection via
Modbus RTU
2
3
Smart Meter
Smart Meter TS
In order to implement various settings, the WLAN connection must briefly be
opened:
1
2
3
114

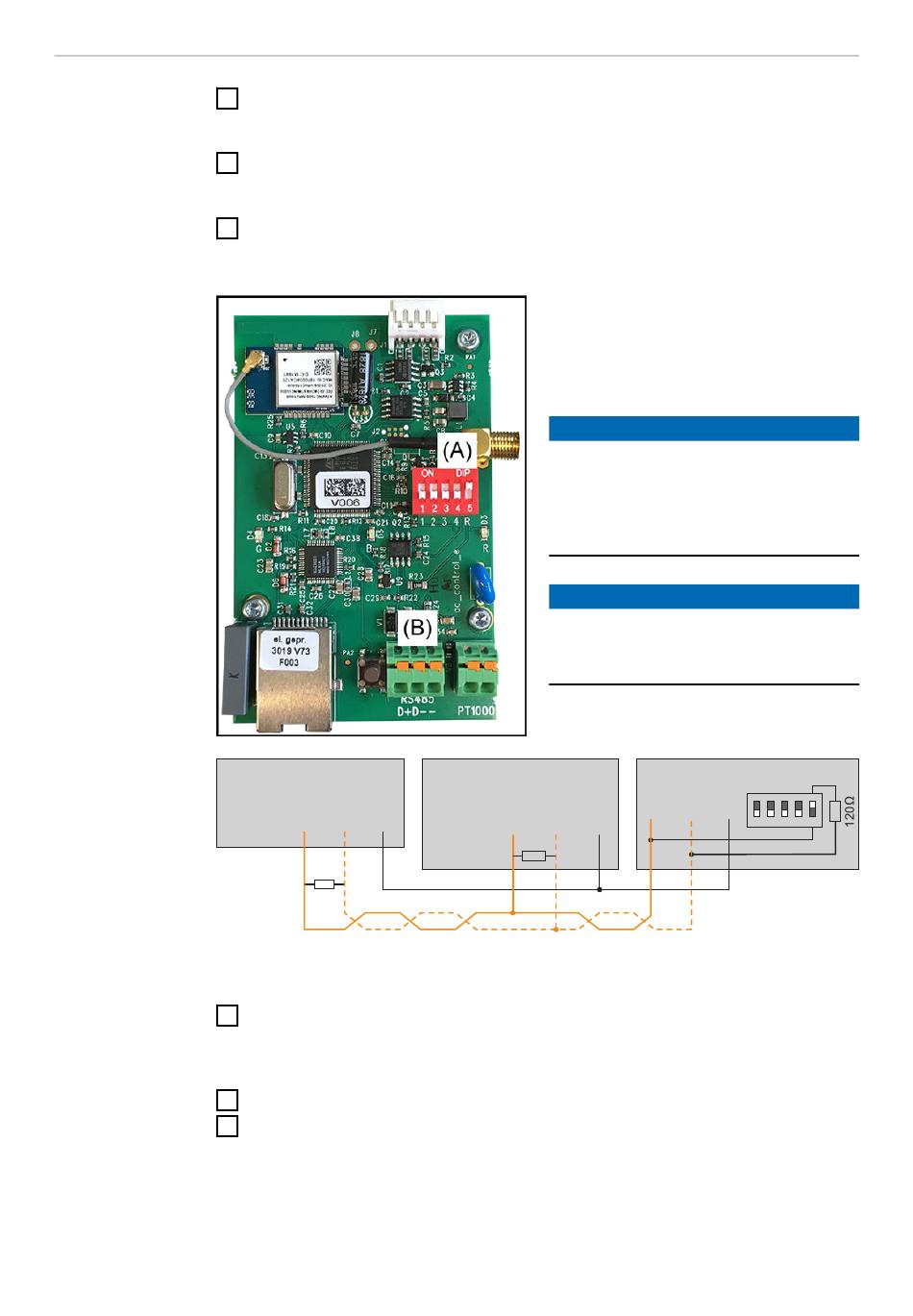

Connect the bus cabling (B) to the Ohmpilot.
(The bus cabling is carried out in parallel via the TX+, TX- and GND cables
with the Fronius Smart Meter and the Fronius inverter or Datamanager 2.0).
Terminate the bus cabling with a resistor on the first and last device.
The resistor can be activated on the Ohmpilot using DIP switch number 5.
See (A).
Set Modbus address using numbers 1-3.
Default address: 40 (for future applications, the Modbus address can be
changed using the DIP switches on the Ohmpilot).
Fronius Smart Meter
Rx Tx GND
M+ GND
M-
120Ω
Press the button on the Ohmpilot 2x.
The blue LED flashes (twice) as long as the WLAN access point is active (30
minutes). Before the access point is opened, it searches for available WLAN
networks.
Activate the "Ohmpilot" WLAN network on your smart device or PC.
In the browser, enter the address http://192.168.250.181 or http://ohmpi-
lotW.local.
(A) DIP switches
DIP 1-3 = Modbus address BCD
DIP 4 = reserve
DIP 5 = terminating resistor (120 Ohm)
NOTE!
Avoid confusion of cables.
Use a data cable that is clearly distin-
guishable from the mains cable, so
that there is no confusion, and injury
and damage to property are avoided.
NOTE!
Faulty cabling.
This is indicated by the red LED indica-
tor flashing 1x.
Fronius Inverter
D+ -
D-
SnapINverter
M1+ M1- GND
GEN24
OFF
Fronius Ohmpilot
D+ D- -
1 2 3 4 5
