DISMOUNTING / VERSION WITH BLIND HOLLOW SHAFT OR CONE SHAFT
7.

DISMOUNTING

7.1 Version with blind hollow shaft or cone shaft

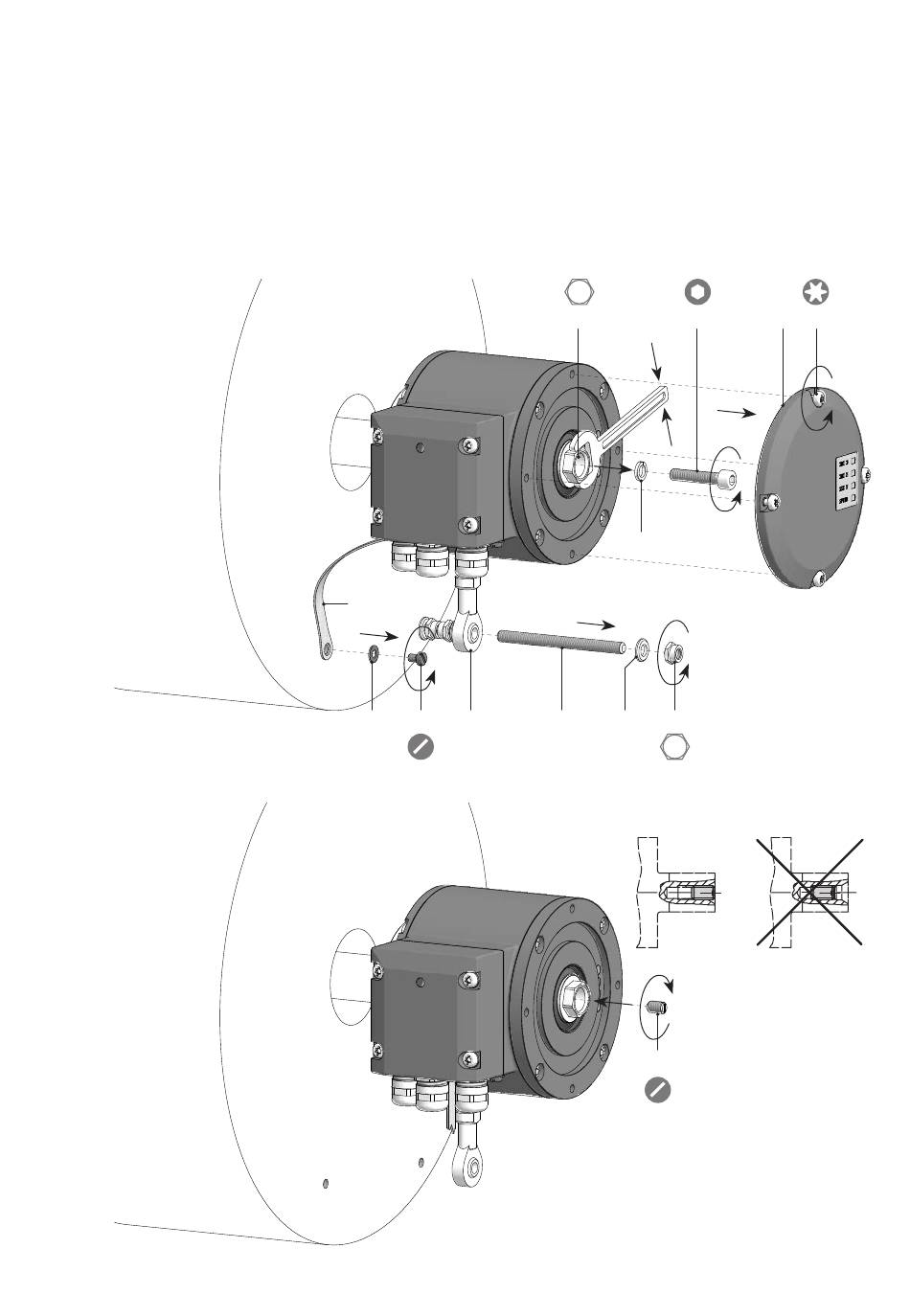

Pictures showing the version with blind hollow shaft� The dismounting steps be identical at
the version with cone shaft�
7.1.1 Step 1
7.1.2 Step 2
