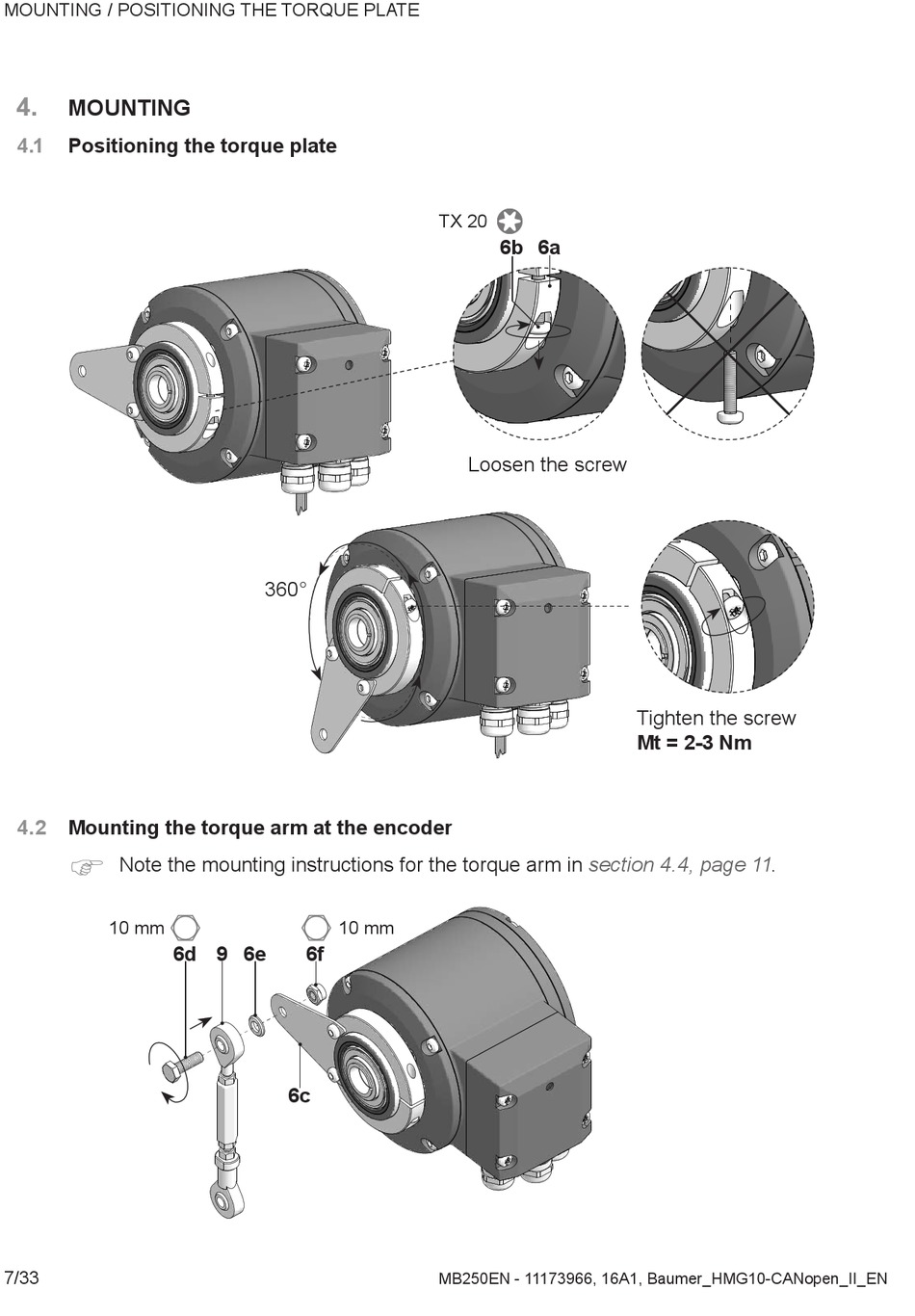

MOUNTING / POSITIONING THE TORqUE PLATE
4.

MOUNTING

4.1 Positioning the torque plate
4.2 Mounting the torque arm at the encoder
)
Note the mounting instructions for the torque arm in
10 mm
7/33
360°
10 mm
6d 9 6e 6f
6c
TX 20
6b 6a
Loosen the screw
section 4.4, page
MB250EN - 11173966, 16A1, Baumer_HMG10-CANopen_II_EN
Tighten the screw
Mt = 2-3 Nm
11�
