DIMENSIONS

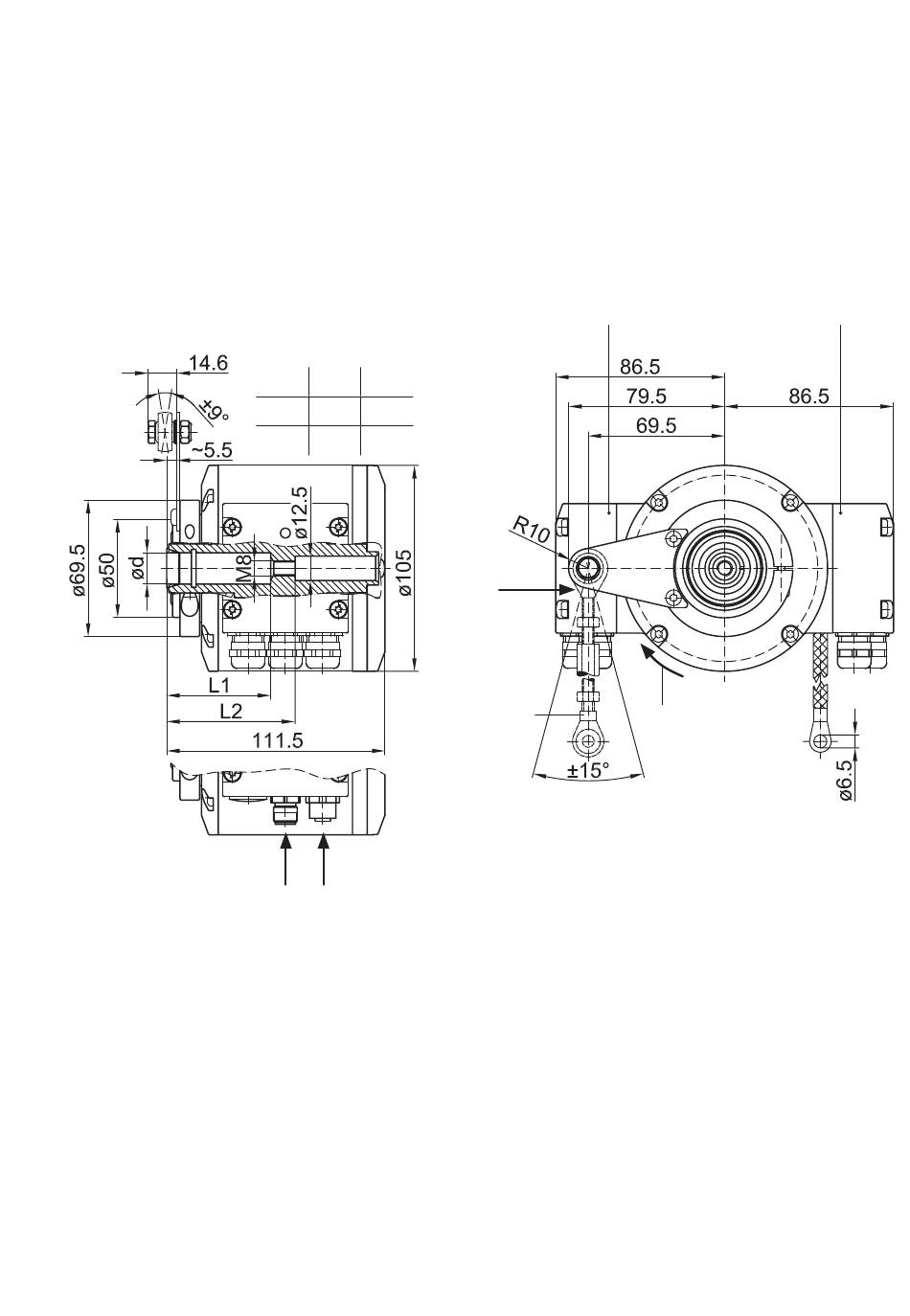

6.1 Blind hollow shaft
All dimensions in millimeters, unless otherwise stated�
MB250EN - 11173966, 16A1, Baumer_HMG10-CANopen_II_EN
ød L1 L2
16 53 65�5
H7
20 35 50
H7
[ C ] [ D ]
DIMENSIONS / BLIND HOLLOW SHAFT
Speed switch
Additional output
[ B ]
Accessory
CANopen® [ A ]
Positive
rotating direction
22/33
