ELECTRICAL CONNECTION / SPEED SWITCH AND ADDITIONAL OUTPUT INCREMENTAL
5.1.7 Setting for the transmission rate
TRANSMISSION RATE
10 kBaud
20 kBaud
50 kBaud (default)
125 kBaud
250 kBaud
500 kBaud
800 kBaud
1000 kBaud
5.2 Speed switch and additional output incremental
5.2.1

Terminal significance

+UB
A+
A _
B+
B _
R+
R _
nE+
nE _
SP+*
SP _ *
SA*
SB*
dnu
* Only at version with speed switch
** Depending on version
17/33
Voltage supply
Ground
Channel A+
Channel A _ (Channel A+ inverted)
Channel B+
Channel B _ (Channel B+ inverted)
Zero pulse (reference signal)
Zero pulse inverted
System OK+ / error output
System OK _ / error output inverted
DSL_OUT1 / speed switch (Open-Collector** or Solid State Relay**)
DSL_OUT2 / speed switch (0 V** or Solid State Relay**)
RS485+ / programming interface
RS485 _ / programming interface
Do not use

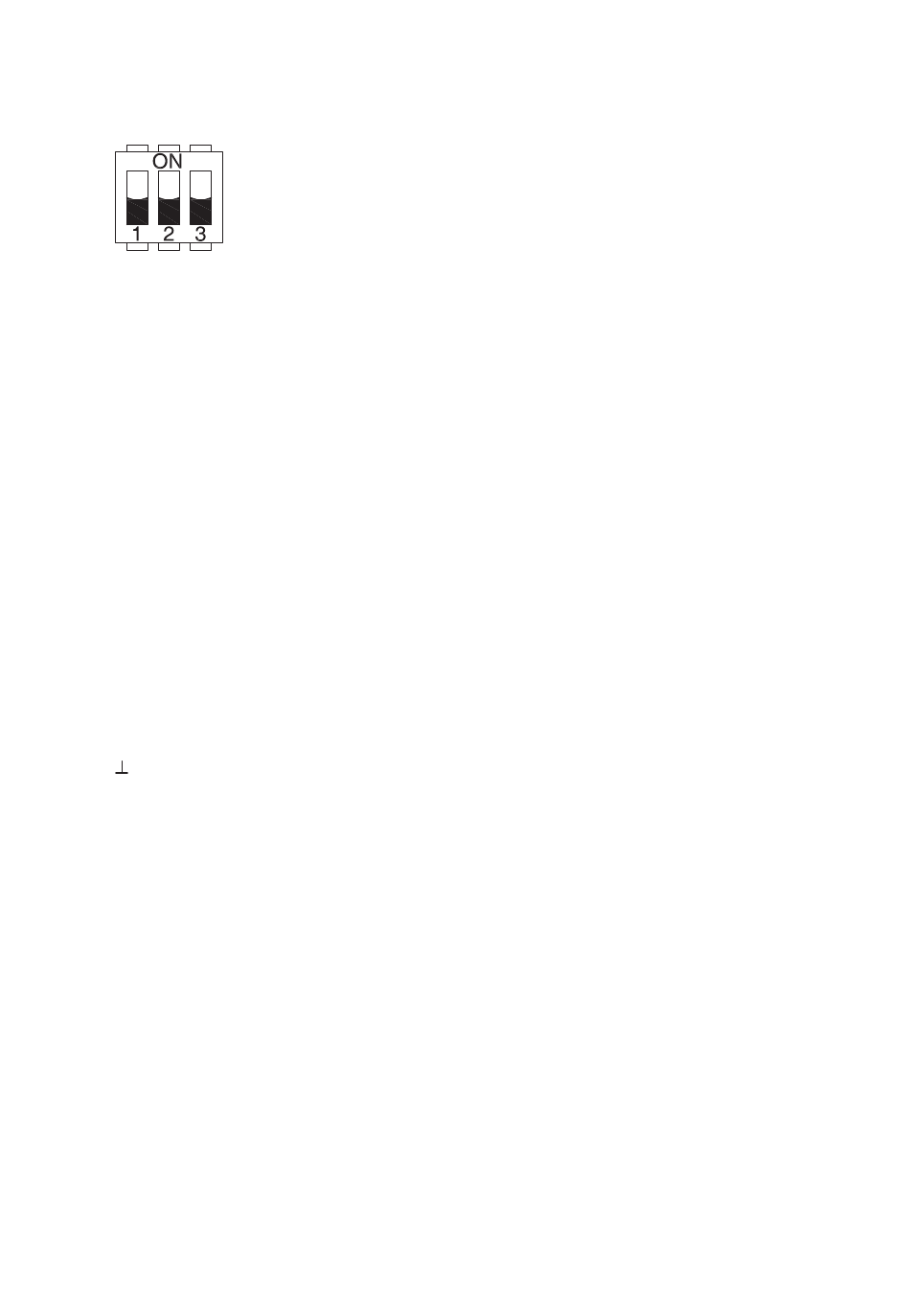

DIP SWITCH POSITION
1 2
OFF OFF
OFF OFF
OFF ON
OFF ON
ON OFF
ON OFF
ON ON
ON ON
MB250EN - 11173966, 16A1, Baumer_HMG10-CANopen_II_EN
