ELECTRICAL CONNECTION / SPEED SWITCH AND ADDITIONAL OUTPUT INCREMENTAL

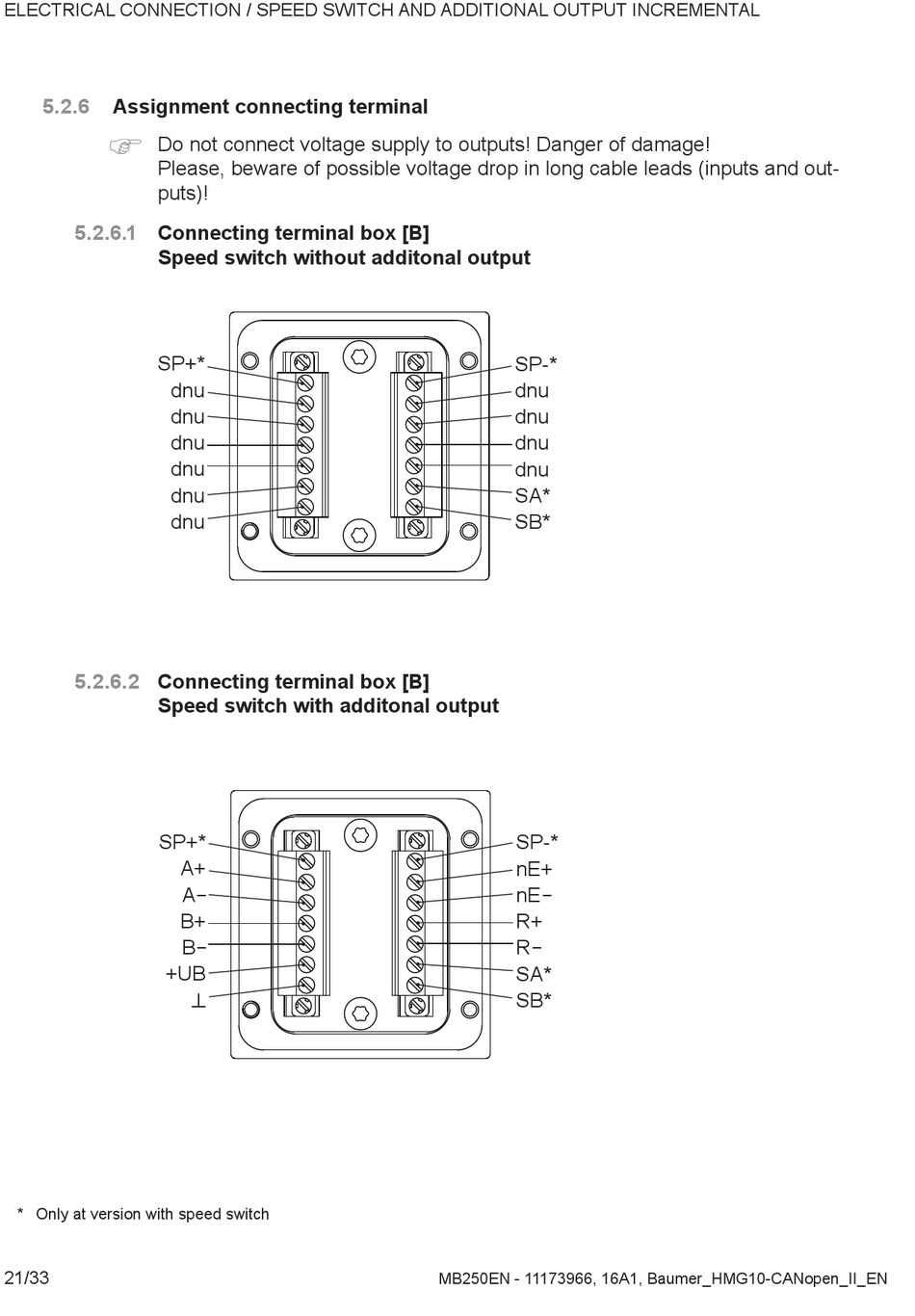

5.2.6 Assignment connecting terminal
)
Do not connect voltage supply to outputs! Danger of damage!
Please, beware of possible voltage drop in long cable leads (inputs and out-
puts)!
5.2.6.1 Connecting terminal box [B]

Speed switch without additonal output

SP+*
dnu
dnu
dnu
dnu
dnu
dnu
5.2.6.2 Connecting terminal box [B]

Speed switch with additonal output

SP+*
+UB
* Only at version with speed switch
21/33
A+
A _
B+
B _
SP-*
dnu
dnu
dnu
dnu
SA*
SB*
SP-*
nE+
nE _
R+
R _
SA*
SB*
MB250EN - 11173966, 16A1, Baumer_HMG10-CANopen_II_EN
