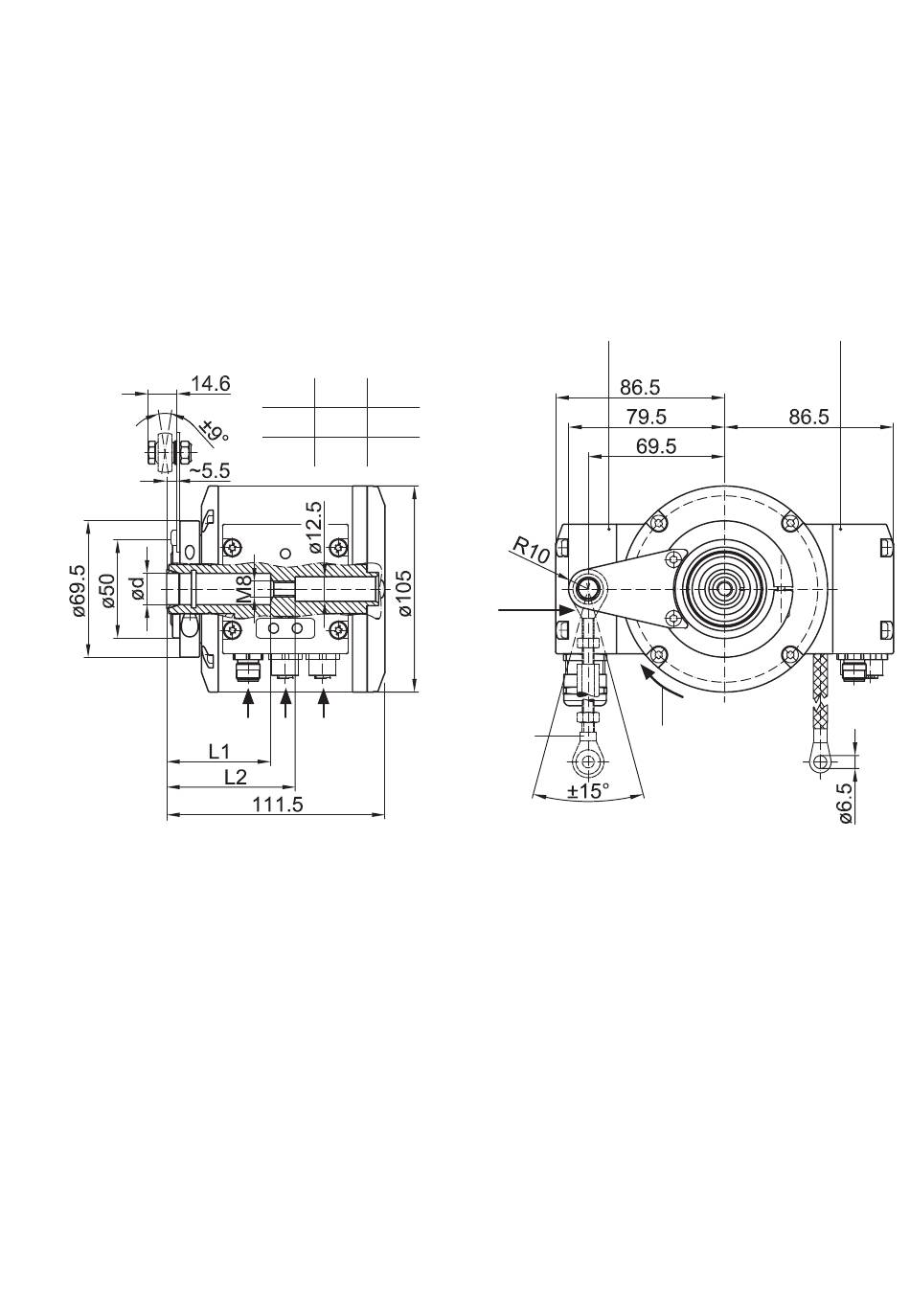

DIMENSIONS / BLIND HOLLOW SHAFT
6.

DIMENSIONS

6.1 Blind hollow shaft
All dimensions in millimeters, unless otherwise stated�
19/29
ød L1 L2
16 53 65�5
H7
20 35 50
H7
[ C ] [ D ] [ E ]
Speed switch
Additional output
[ B ]
Accessory
MB248EN - 11171699, 16A3, Baumer_HMG10-PROFINET_II_EN
PROFINET [ A ]
Positive
rotating direction
