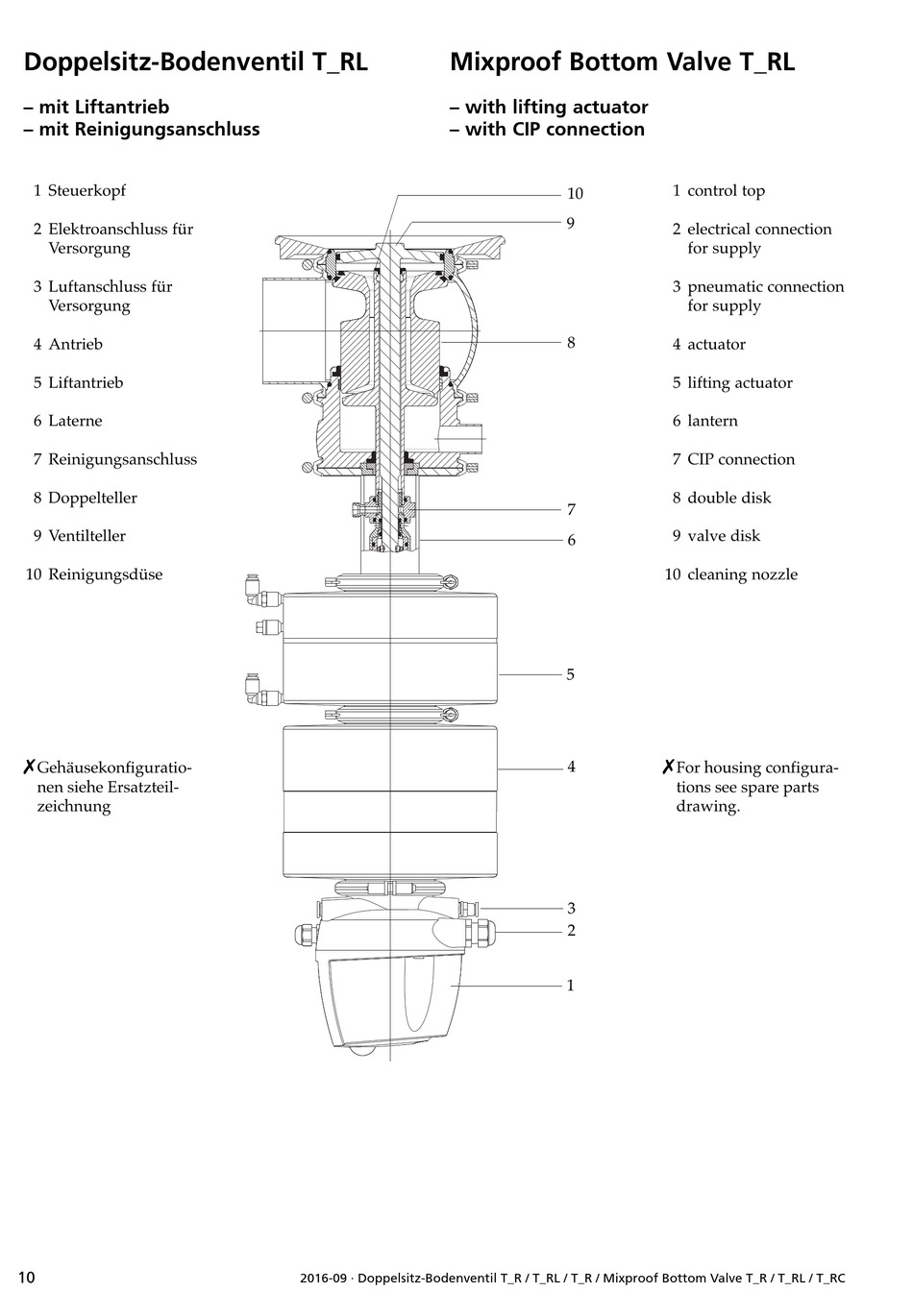

Doppelsitz-Bodenventil T_RL
– mit Liftantrieb
– mit Reinigungsanschluss
1 Steuerkopf
2 Elektroanschluss für
Versorgung
3 Luftanschluss für
Versorgung
4 Antrieb
5 Liftantrieb
6 Laterne
7 Reinigungsanschluss
8 Doppelteller
9 Ventilteller
10 Reinigungsdüse
Gehäusekonfiguratio-
nen siehe Ersatzteil-
zeichnung
10
Mixproof Bottom Valve T_RL
– with lifting actuator
– with CIP connection
2016-09 · Doppelsitz-Bodenventil T_R / T_RL / T_R / Mixproof Bottom Valve T_R / T_RL / T_RC
1 control top
10
9
2 electrical connection
for supply
3 pneumatic connection
for supply
8
4 actuator
5 lifting actuator
6 lantern
7 CIP connection
8 double disk
7
9 valve disk
6
10 cleaning nozzle
5
4
For housing configura-
tions see spare parts
drawing.
3
2
1
