Main Display - Kongskilde CPU Component Pickup Unit Betriebsanleitung

Main menu indication
Home
Component se-
lect (program)
Settings
Error
Error
• The Main menu indicator shows which menu or sub menu the operator´s panel is in.
• The CVL icon provides access to readout of the settings for the CVL.
• Home moves from submenus etc. back to the main menu.
• Component select gives access to the menu, in which different components are selected, and according set-
tings for the component parameters.
• Settings allow access to change settings (Tech).
• Warnings show warnings.
• Stop interrupts the emptying with the CPU, and returns the telescopic pipe to starting position.
• Pause pauses the CPU / EAR / CVL, when the system is operating.
• Run starts CPU / EAR / CVL.
• Lower / raise telescope pipe lowers / raises the telescope pipe.
• Selected component displays the current component.
• Info shows additional information, which is "Low level" or "Prepare new container."
• User shows which user is logged onto the operator´s panel.
• The CPU icon provides access to readout of the settings for the CPU.
• The EAR icon provides access to readout of the settings for the air regulation throttles.
• Error shows any error condition.
8

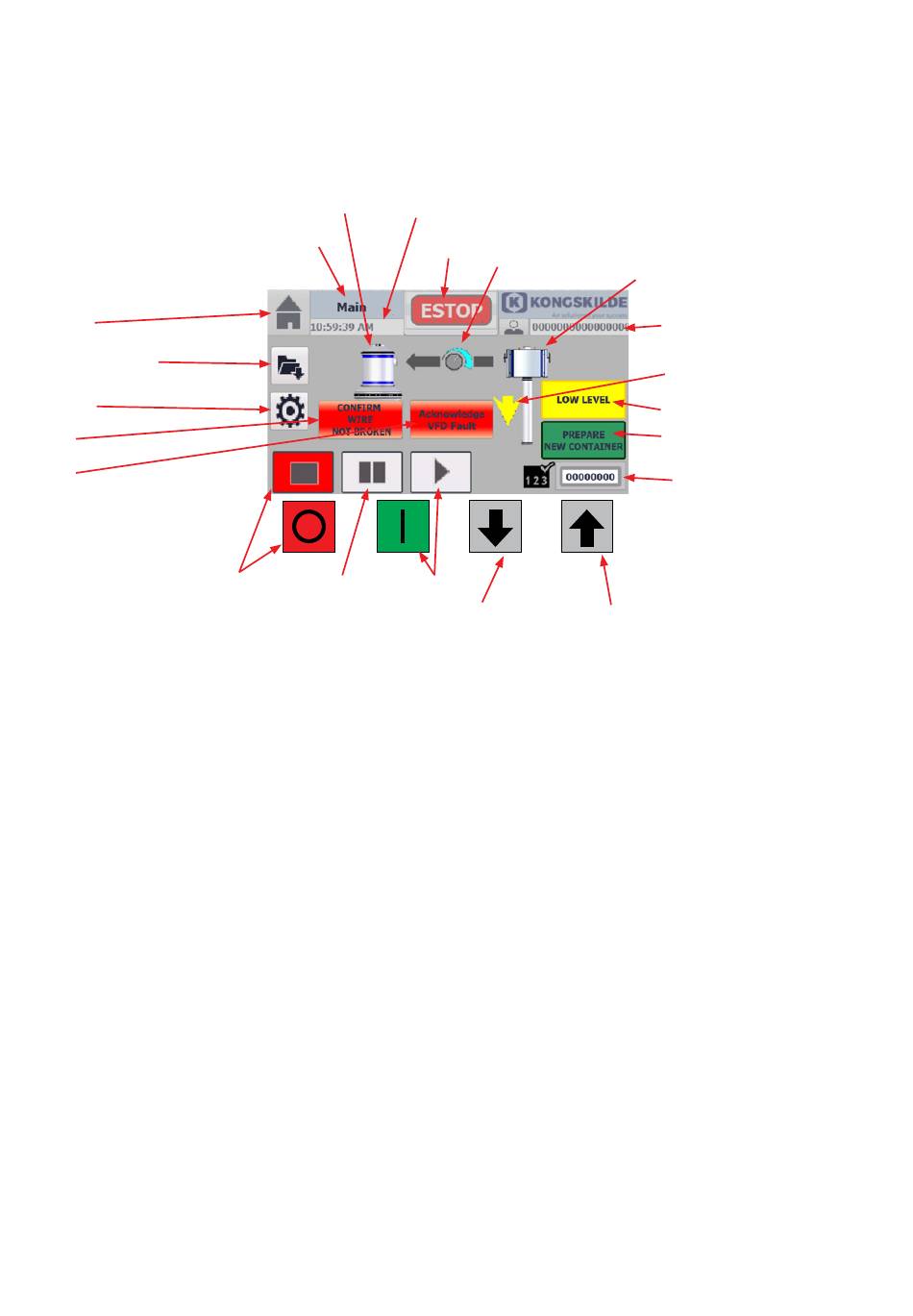

Main display

CVL sub menu
Stop Pause
Lower telescopic pipe
Date and time
Error
EAR sub menu
Run
CPU sub menu
User
Arrow, showing that tele
scopic pipe is ready to be
manually lowered
Info
Info
Selected component
(program)
Raise telescopic pipe
