Telescopic pipe up
Telescopic pipe down
On the arrow keys, the telescopic pipe can be operated respectively up and down as well as back and forth. Fur-
thermore, the pipe may be raised, e.g. in the event that the emptying process has been interrupted, or during set-
ting of the Telescope setpoint setting.
Telescope length indicates the current distance from underside of the CPU suction head to underside of the tel-
escopic pipe.
14

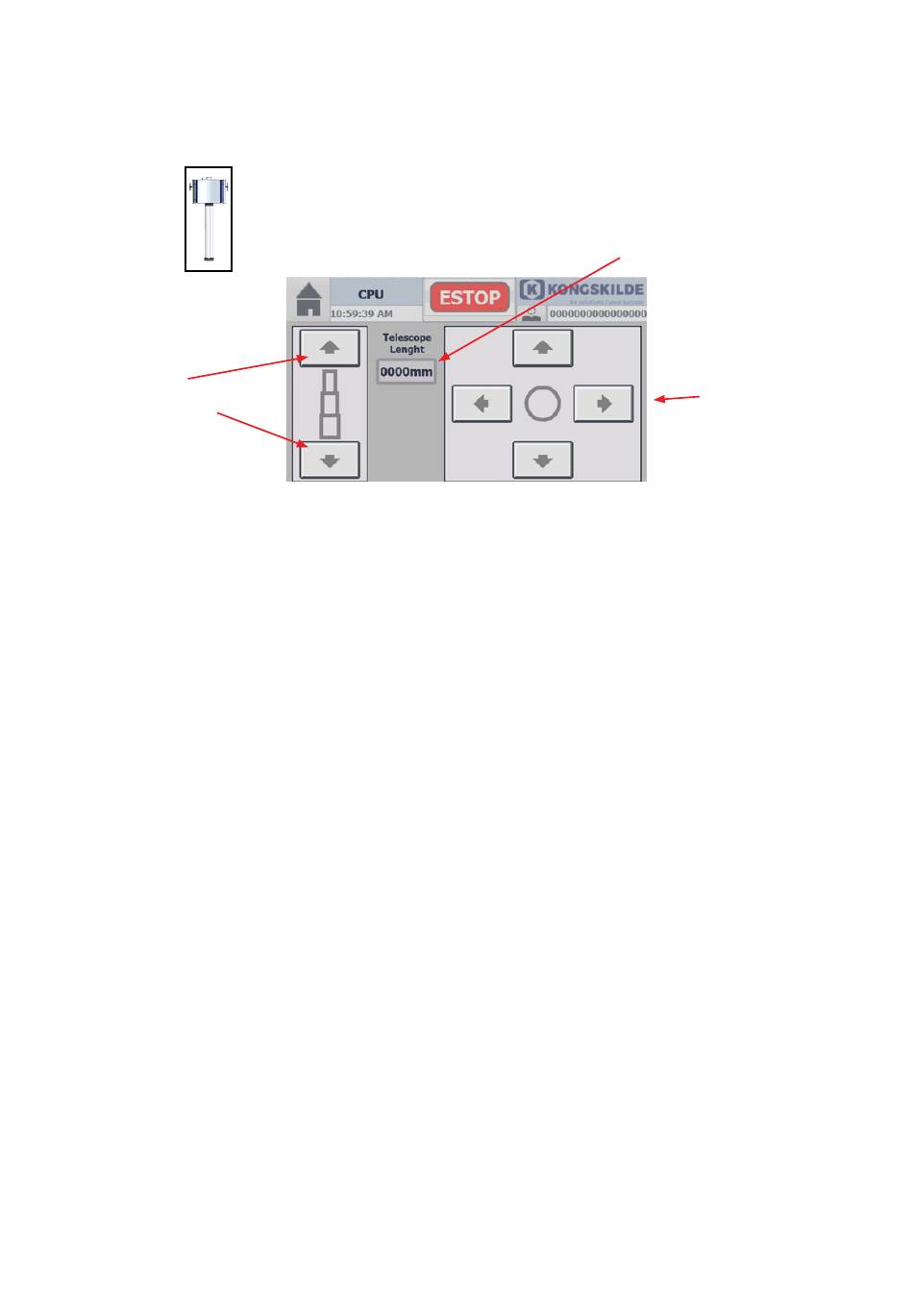

Component Pickup Unit settings display
Telescopic pipe position
Telescopic pipe
back/forth and
side to side
