Diagram E (Apportioned volume process) - Should
the components be moved, typically from a magazine,
with discharge in metered volume, this mode of opera-
tion is used. The volume is determined by a certain
number of discharges in combination with the level in
the CVL. After discharge, the process is repeated.
This operating mode can be equipped with start / stop
contact at the CPU, whereby the CVL can be stopped
when eg. the magazine is empty. Additionally, this mode
of operation shall be equipped with a reset switch, that
can be activated by replacing eg. cardboard boxes un-
der the CVL.

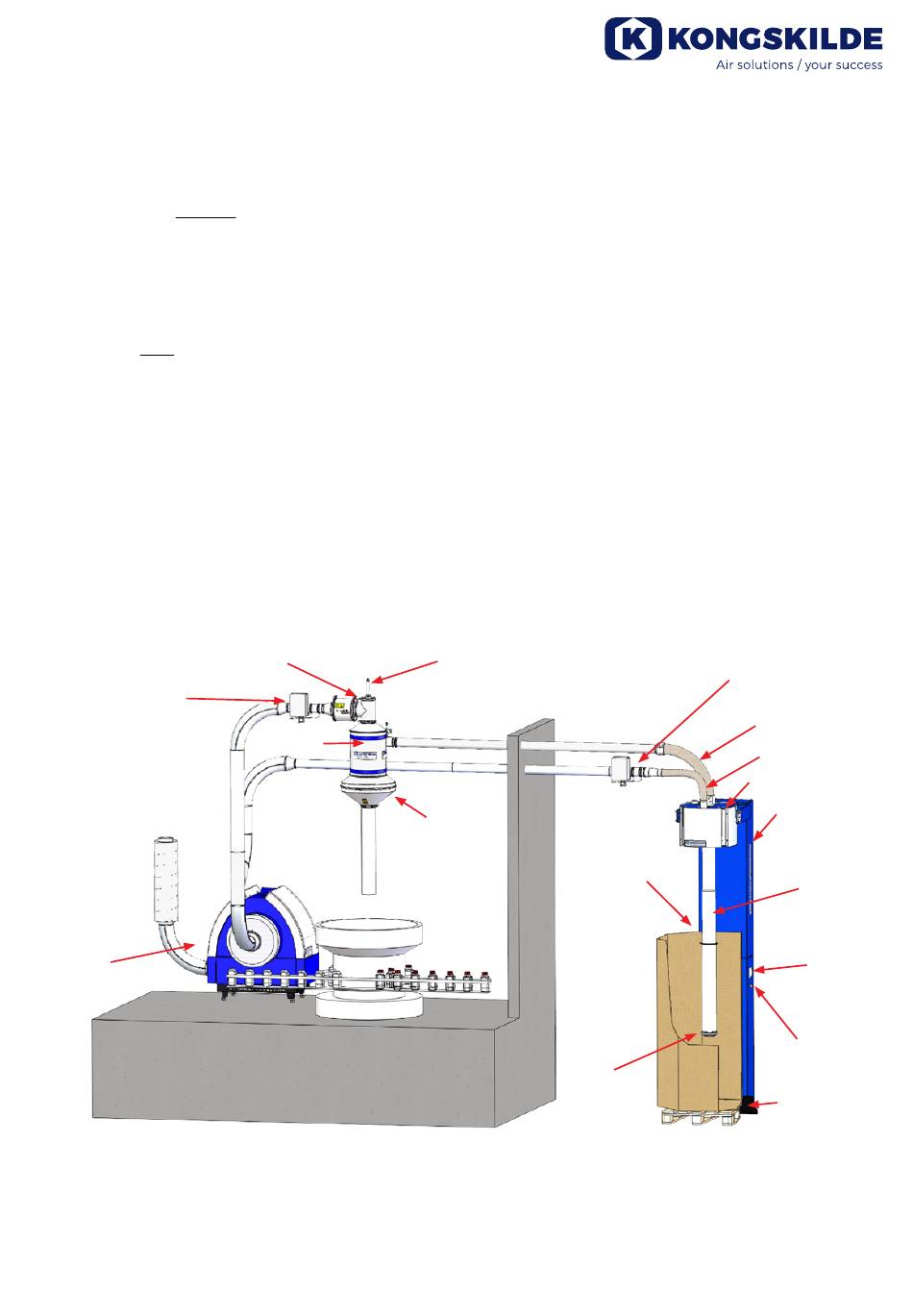

Principle sketch with CVL installed longer from CPU
(2 separate controls for EAR100 throttles)
CVL top valve
Regulation throttle
(EAR100-C) for
conveying air
Blower
Level sensor for CVL
CVL
CVL bottom
valve
Regulation throt-
tle (EAR100-B) for
boost air
Main
switch
Sensor ring
Suction air string
Boost air string
Suction head
Coloumn
Telescopic
pipe
Operators
panel
Emergency
stop
Footplate
