Kongskilde CPU Component Pickup Unit Betriebsanleitung Seite 20

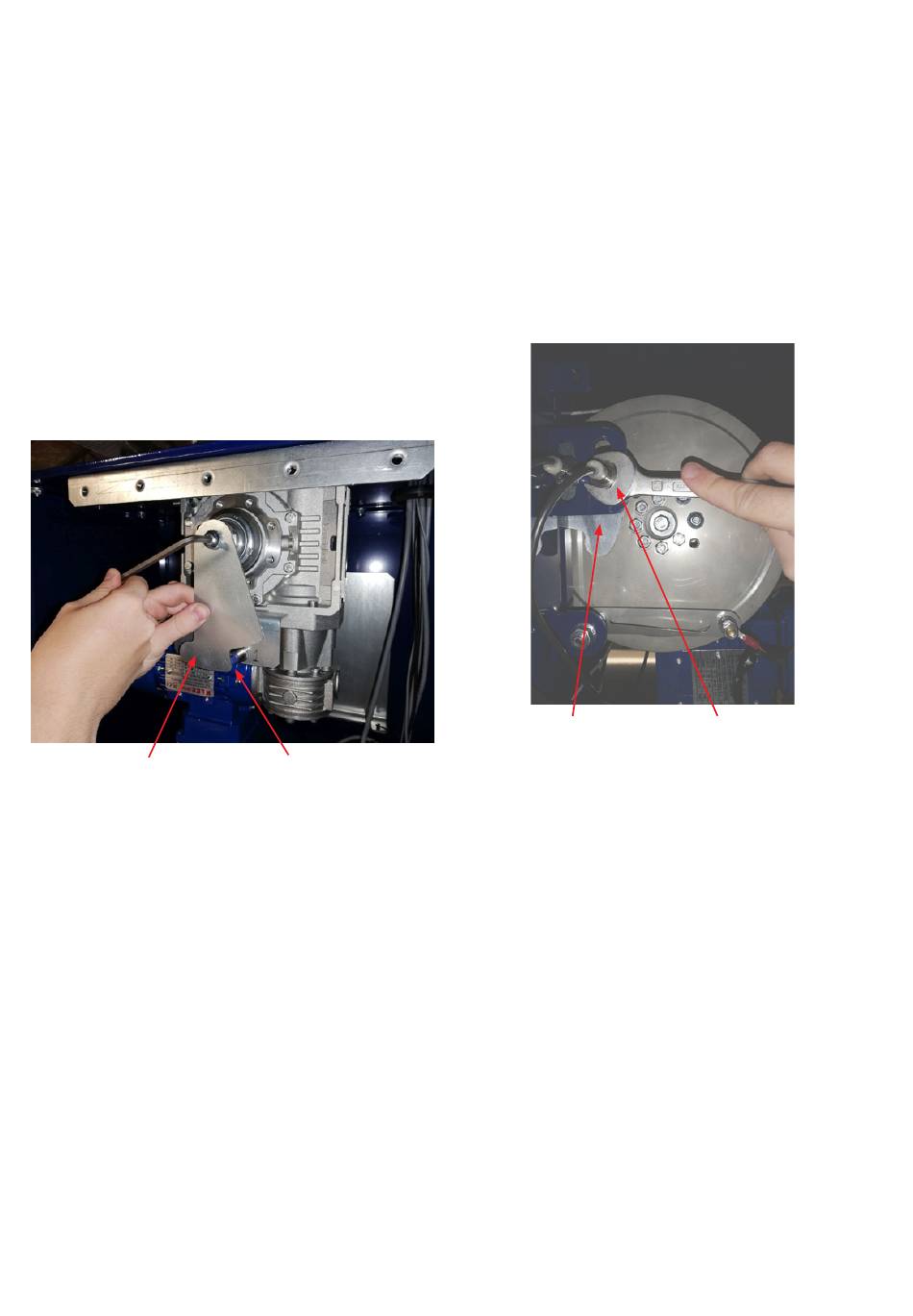

Telescope pipe starting position adjustment
1. Disconnect the CPU power and clear the area be-
low the telescopic tube.
2. Manually push the telescopic pipe into starting po-
sition.
3. Remove the upper back cover of the coloumn to
gain access to the dial and transducers on the X-
axis.
4. Check if the dial is in the vertical position and cov-
ers the transducer halfway. If not, loosen the nut
and move the transducer in the oblong hole.
5. Check the operation of the telescopic pipe.
6. Attach the back plate on the column.
Dial
20
Transducer
7. Remove right (seen from front) and rear cover on
the suction head, to access the dial and the trans-
ducers on the Y axis.
8. Check if the dial is in the horizontal position and
covers the transducer halfway. If not, loosen the nut
and move the transducer in the oblong hole.
9. Check the operation of the telescopic pipe.
10. Reinstall both covers on suction head.
Dial Transducer
