6.5

Runtimeversion

The KSS6380 is accompanied by an ICONNECT runtime version for the configuration of the
controller as well as for the readout and saving of the measuring values.
1
2
3
4
5
6
7
8
9

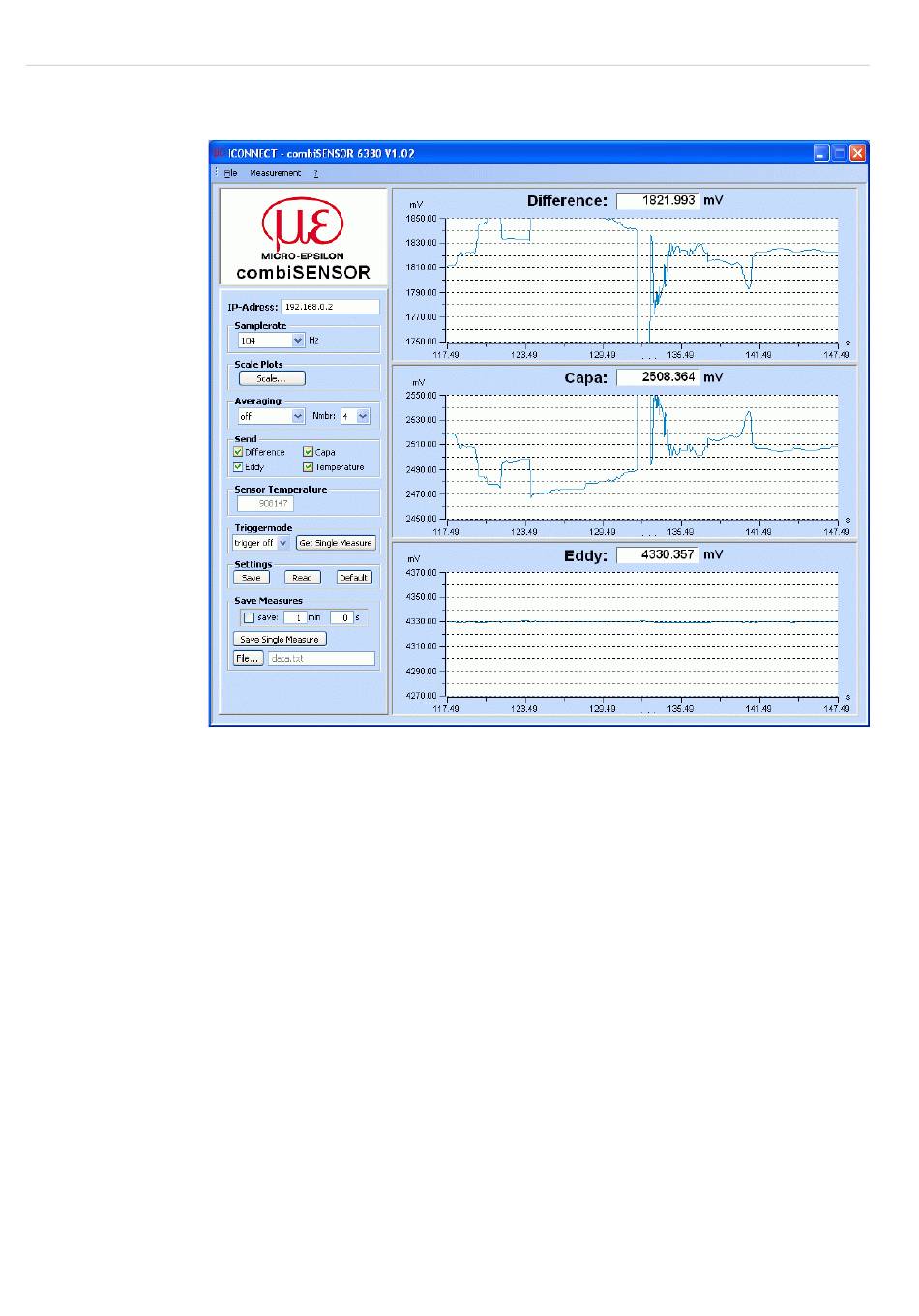

The following briefly explains the most important control elements:
1: IP address of the controller (KSS6380)
2: Data rate of the measuring values
3: Opens a dialog for the scaling of the plots. Choose between a full measuring range, a
user-defined measuring range and an automatic scaling.
4: Selection of the averaging type and the number of measured values used for the aver-
aging.
5: Selection of the measurements to be transmitted.
6: Temperature of the sensor.
7: Triggermode
8: Save or load the settings of the controller into the EEPROM, reset to factory settings.
9: Storage of measured values. If the checkbox is activated, the measured values will be
saved in the adjusted time intervals in a text file. If the checkbox is not activated, the "Save
Single Measure" button can be used to save the current measured value for each channel.
If the time interval is entered into „0 min" and „0 s", all received measured values are saved
with the adjusted samplerate after activation of the checkbox.
Mathematic function:
The item "Mathematic" is shown in the menu item "Measurement".
Selecting this item a dialog which can be used to set or to clear the mathematic function is
displayed.
