Installation and Assembly
combiSENSOR
All manuals and user guides at all-guides.com
4.5

Pin Assignment

4.5.1

Power Supply

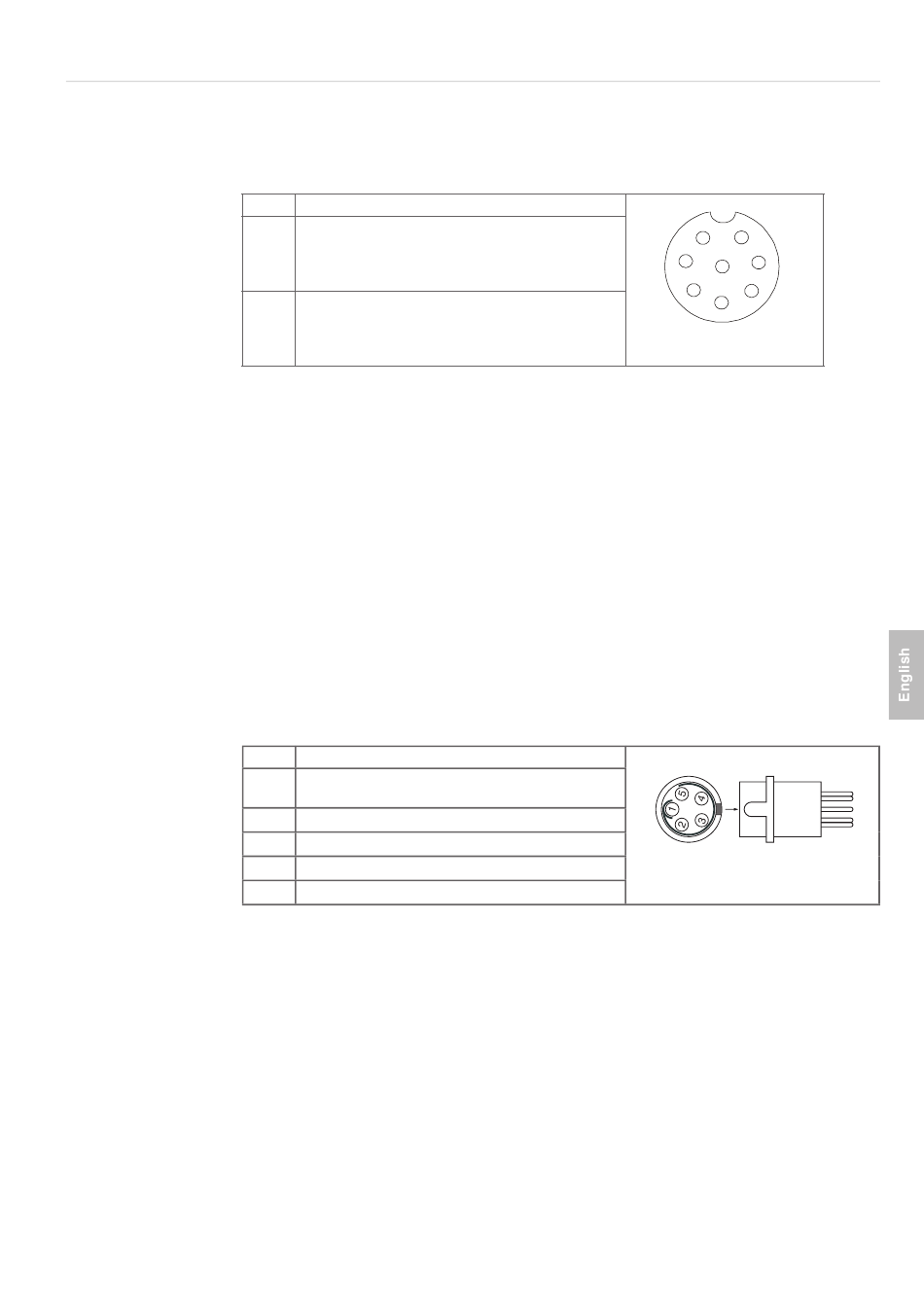

The power supply is connected by the 8-pin built-in male connector (DlN 45326). See the
drawing and table for the pin assignment. The controller contains a 8-pin female cable so-
cket for the user-side assembly of your own connecting cable.
PIN Assignment
1 0 Volt
6 +9 ... 36 Volt ( appr. 0.25 A at 24 V)
The PC3/8 is a 3 m (9.84 ft) long, pre-assembled 8-wire power cable. It is supplied as an
optional accessory.
PIN Assignment and color code:
PIN Color Assignment
1 white 0 Volt
6 green 9 ... 36 V
2 brown ---
4 yellow ---
5 grey ---
Inner cable 3-wire with screen
3 green ---
7 blue ---
8 red ---
4.5.2

Analog Output

The signals are output via the 5-pin built-in female connector. See the drawing and table
for the pin assignment. The controller contains a 5-pin male cable socket for the user-side
assembly of your own connecting cable.
PIN Assignment
Differential signal 0 ... 10 V
1
(eddy current - capacitive signal)
2 Capacitive signal 0 ... 10 V
3 Eddy current signal 0 ... 10 V
4 Sensor temperature signal, not scaled
5 GND
The SCAC3/5 is a 3 m (9.84 ft) long, pre-assembled 5-wire output cable. It is supplied as an
optional accessory.
PIN Assignment and color code:
PIN Color Assignment
1 white Differential signal = eddy current - capacitive signal (0 ... 10 V)
2 grey Capacitive signal (0 ... 10 V)
3 yellow Eddy current signal (0 ... 10 V)
4 green Sensor temperature signal, not scaled
5 brown GND
6
7
8
1
3
4 5
2
Solder pin side
female cable connector
Solder pin side
male cable connector
