Installation and Assembly
Legend
mm (inches)
combiSENSOR
All manuals and user guides at all-guides.com
4.3

Sensor Cable

The sensor cable connects the sensor with the controller.
Connect the sensor to the controller by the sensor cable.
The connection is made by simple plugging. The connector locks automatically. The tight fit
can be checked by pulling the connector housing (cable bushing).
i
A damaged cable cannot be repaired.

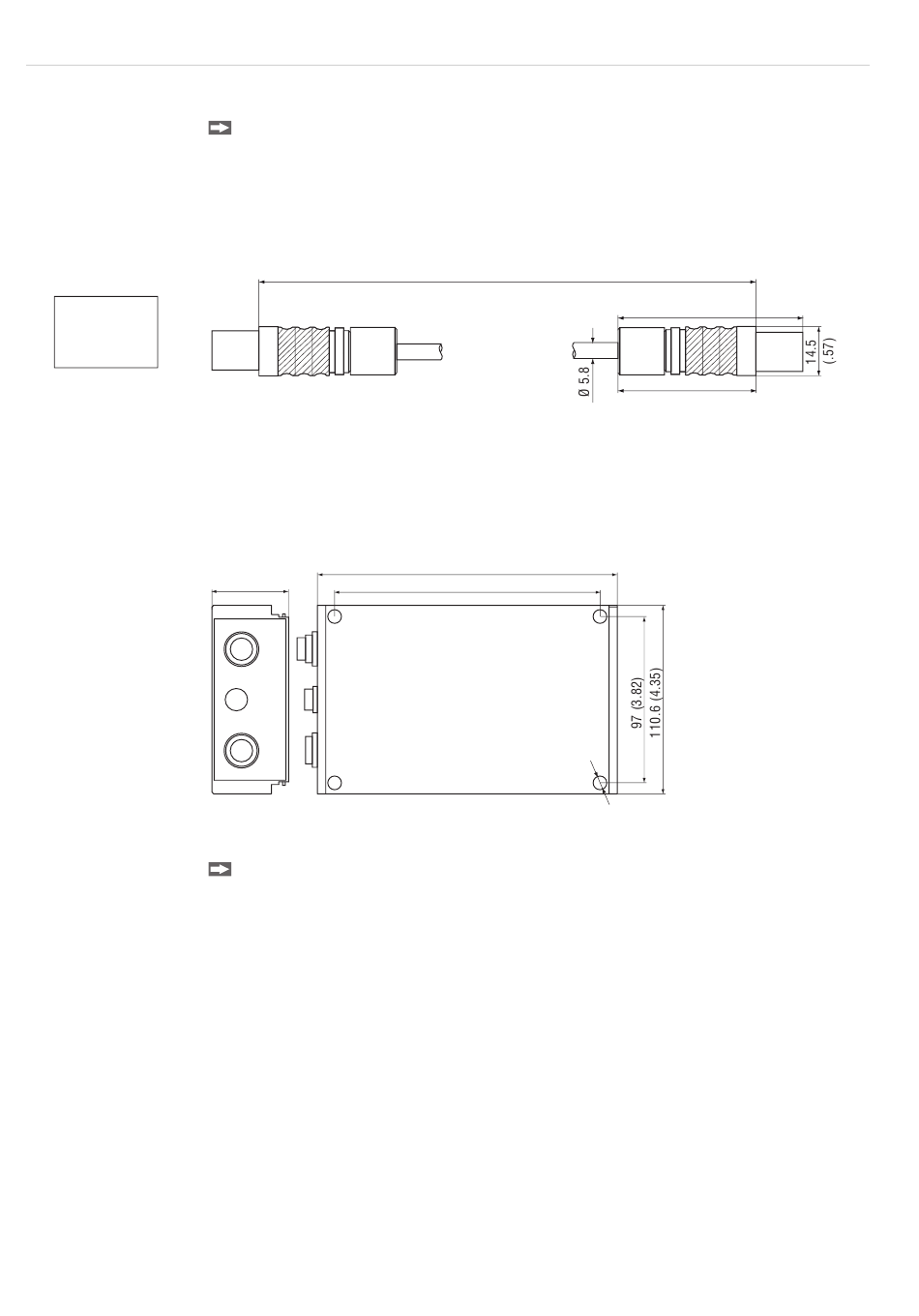

Fig. 7 Dimensions sensor cable
4.4

Controller, Ground Connection, Earthing

Mounting the sensor in a metal holder establishes a sufficient ground connection. An additi-
onal ground connection is required for small, remotely located targets. Connect the target to
the sensor housing for this.
45 (1.77)
Fig. 8 Controller dimensions
Connect the controller housings with the detection conductor of the power supply con-
nection.
1000 (39.4)
175 (6.89)
155 (6.10)
Ø 4.6
(.18)
appr. 50 (2.0)
appr. 38 (1.5)
