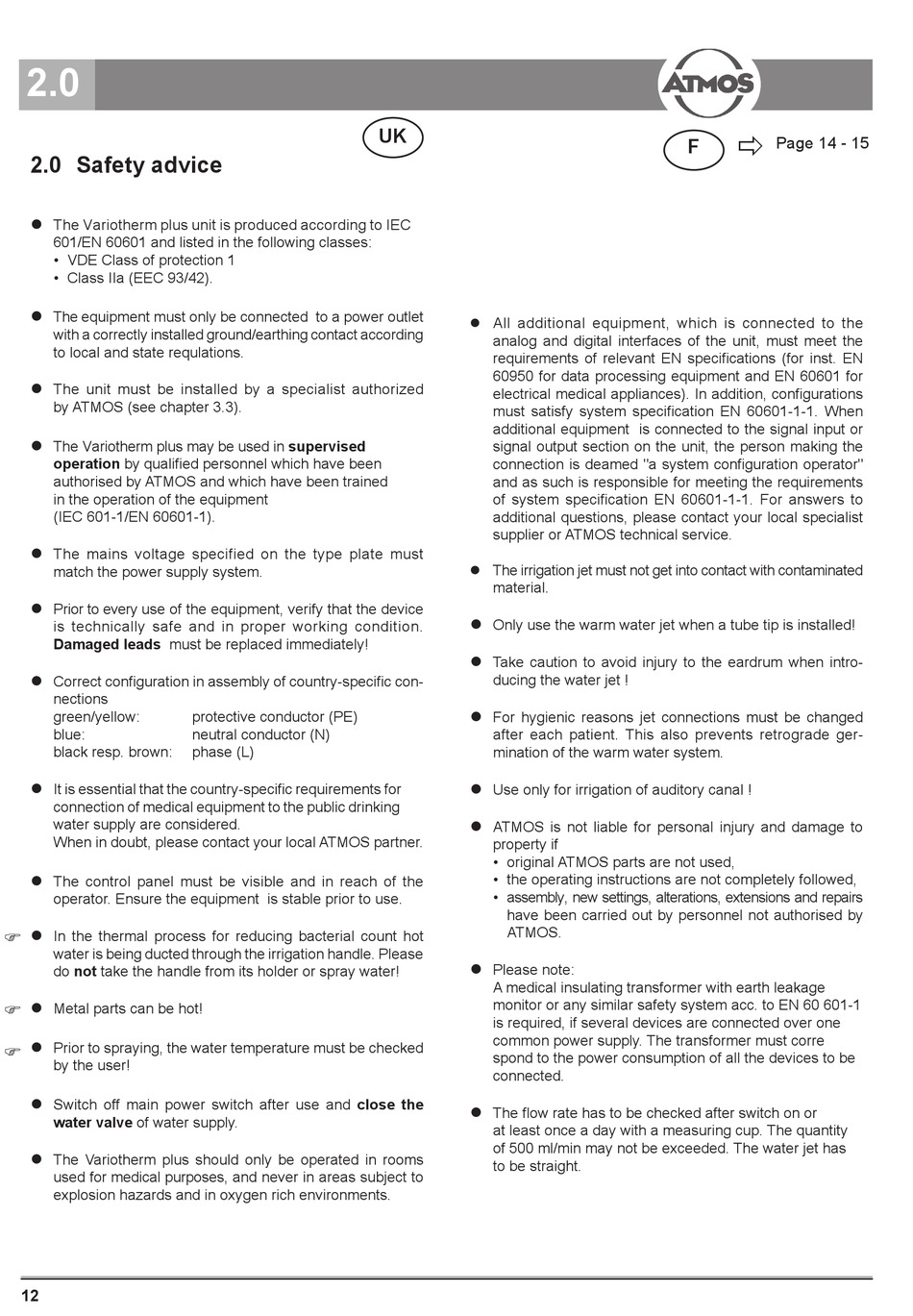

2.0 Safety advice
The Variotherm plus unit is produced according to IEC
601/EN 60601 and listed in the following classes:
• VDE Class of protection 1
• Class IIa (EEC 93/42).
The equipment must only be connected to a power outlet
with a correctly installed ground/earthing contact according
to local and state requlations.
The unit must be installed by a specialist authorized
by ATMOS (see chapter 3.3).
The Variotherm plus may be used in supervised
operation by qualifi ed personnel which have been
authorised by ATMOS and which have been trained
in the operation of the equipment
(IEC 601-1/EN 60601-1).
The mains voltage specified on the type plate must
match the power supply system.
Prior to every use of the equipment, verify that the device
is technically safe and in proper working condition.
Damaged leads must be replaced immediately!
Correct confi guration in assembly of country-specifi c con-
nections
green/yellow:
blue:
black resp. brown:
It is essential that the country-specifi c requirements for
connection of medical equipment to the public drinking
water supply are considered.
When in doubt, please contact your local ATMOS partner.
The control panel must be visible and in reach of the
operator. Ensure the equipment is stable prior to use.
In the thermal process for reducing bacterial count hot
water is being ducted through the irrigation handle. Please
do not take the handle from its holder or spray water!
Metal parts can be hot!
Prior to spraying, the water temperature must be checked
by the user!
Switch off main power switch after use and close the
water valve of water supply.
The Variotherm plus should only be operated in rooms
used for medical purposes, and never in areas subject to
explosion hazards and in oxygen rich environments.
12
protective conductor (PE)
neutral conductor (N)
phase (L)
UK
All additional equipment, which is connected to the
analog and digital interfaces of the unit, must meet the
requirements of relevant EN specifi cations (for inst. EN
60950 for data processing equipment and EN 60601 for
electrical medical appliances). In addition, confi gurations
must satisfy system specifi cation EN 60601-1-1. When
additional equipment is connected to the signal input or
signal output section on the unit, the person making the
connection is deamed "a system confi guration operator"
and as such is responsible for meeting the requirements
of system specifi cation EN 60601-1-1. For answers to
additional questions, please contact your local specialist
supplier or ATMOS technical service.
The irrigation jet must not get into contact with contaminated
material.
Only use the warm water jet when a tube tip is installed!
Take caution to avoid injury to the eardrum when intro-
ducing the water jet !
For hygienic reasons jet connections must be changed
after each patient. This also prevents retrograde ger-
mination of the warm water system.
Use only for irrigation of auditory canal !
ATMOS is not liable for personal injury and damage to
property if
• original ATMOS parts are not used,
• the operating instructions are not completely followed,
• assembly, new settings, alterations, extensions and repairs
have been carried out by personnel not authorised by
ATMOS.
Please note:
A medical insulating transformer with earth leakage
monitor or any similar safety system acc. to EN 60 601-1
is required, if several devices are connected over one
common power supply. The transformer must corre
spond to the power consumption of all the devices to be
connected.
The fl ow rate has to be checked after switch on or
at least once a day with a measuring cup. The quantity
of 500 ml/min may not be exceeded. The water jet has
to be straight.
