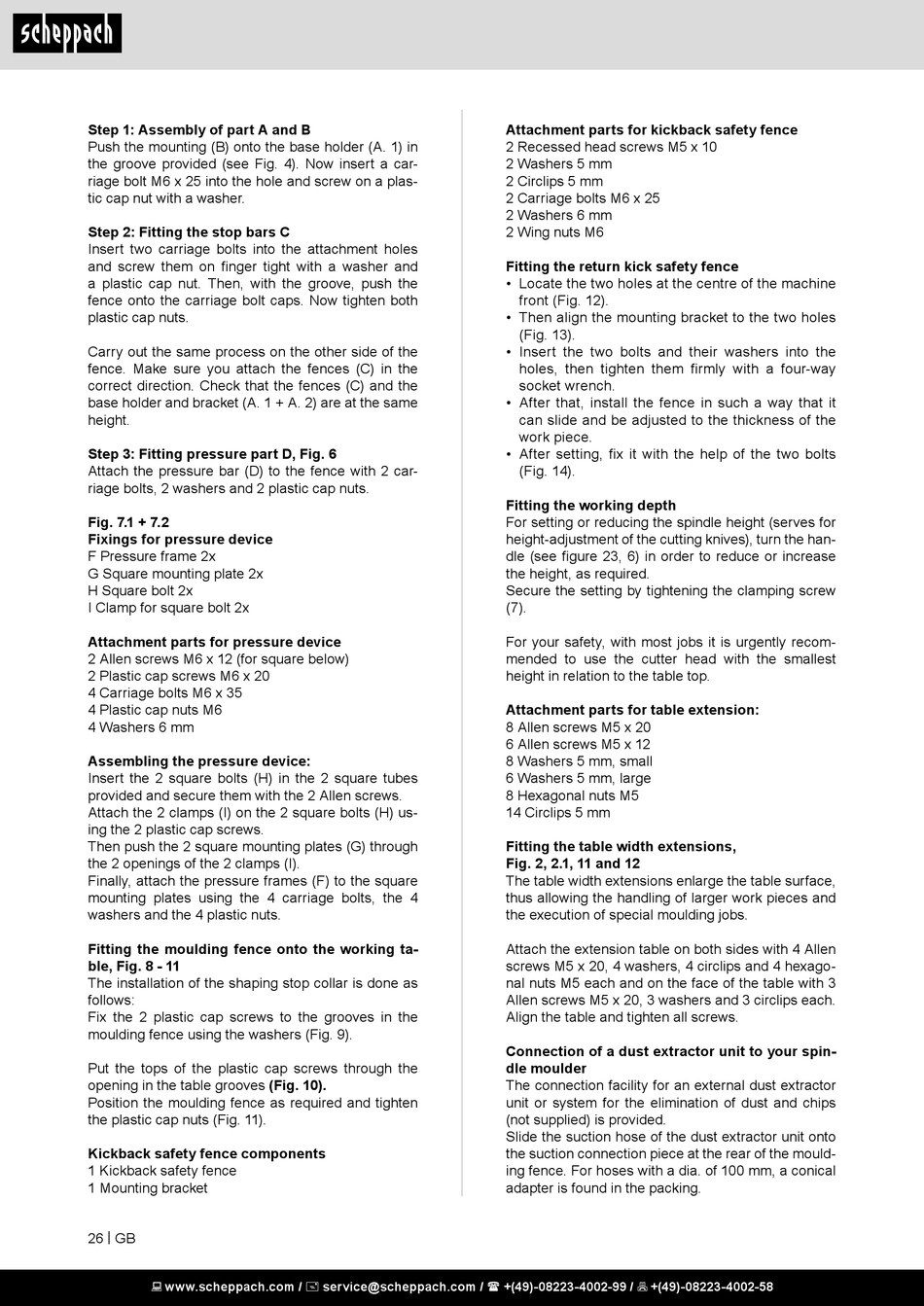

Step 1: Assembly of part A and B
Push the mounting (B) onto the base holder (A. 1) in
the groove provided (see Fig. 4). Now insert a car-
riage bolt M6 x 25 into the hole and screw on a plas-
tic cap nut with a washer.
Step 2: Fitting the stop bars C
Insert two carriage bolts into the attachment holes
and screw them on finger tight with a washer and
a plastic cap nut. Then, with the groove, push the
fence onto the carriage bolt caps. Now tighten both
plastic cap nuts.
Carry out the same process on the other side of the
fence. Make sure you attach the fences (C) in the
correct direction. Check that the fences (C) and the
base holder and bracket (A. 1 + A. 2) are at the same
height.
Step 3: Fitting pressure part D, Fig. 6
Attach the pressure bar (D) to the fence with 2 car-
riage bolts, 2 washers and 2 plastic cap nuts.
Fig. 7.1 + 7.2
Fixings for pressure device
F Pressure frame 2x
G Square mounting plate 2x
H Square bolt 2x
I Clamp for square bolt 2x
Attachment parts for pressure device
2 Allen screws M6 x 12 (for square below)
2 Plastic cap screws M6 x 20
4 Carriage bolts M6 x 35
4 Plastic cap nuts M6
4 Washers 6 mm
Assembling the pressure device:
Insert the 2 square bolts (H) in the 2 square tubes
provided and secure them with the 2 Allen screws.
Attach the 2 clamps (I) on the 2 square bolts (H) us-
ing the 2 plastic cap screws.
Then push the 2 square mounting plates (G) through
the 2 openings of the 2 clamps (I).
Finally, attach the pressure frames (F) to the square
mounting plates using the 4 carriage bolts, the 4
washers and the 4 plastic nuts.
Fitting the moulding fence onto the working ta-
ble, Fig. 8 - 11
The installation of the shaping stop collar is done as
follows:
Fix the 2 plastic cap screws to the grooves in the
moulding fence using the washers (Fig. 9).
Put the tops of the plastic cap screws through the
opening in the table grooves (Fig. 10).
Position the moulding fence as required and tighten
the plastic cap nuts (Fig. 11).
Kickback safety fence components
1 Kickback safety fence
1 Mounting bracket
26 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Attachment parts for kickback safety fence
2 Recessed head screws M5 x 10
2 Washers 5 mm
2 Circlips 5 mm
2 Carriage bolts M6 x 25
2 Washers 6 mm
2 Wing nuts M6
Fitting the return kick safety fence
• Locate the two holes at the centre of the machine
front (Fig. 12).
• Then align the mounting bracket to the two holes
(Fig. 13).
• Insert the two bolts and their washers into the
holes, then tighten them firmly with a four-way
socket wrench.
• After that, install the fence in such a way that it
can slide and be adjusted to the thickness of the
work piece.
• After setting, fix it with the help of the two bolts
(Fig. 14).
Fitting the working depth
For setting or reducing the spindle height (serves for
height-adjustment of the cutting knives), turn the han-
dle (see figure 23, 6) in order to reduce or increase
the height, as required.
Secure the setting by tightening the clamping screw
(7).
For your safety, with most jobs it is urgently recom-
mended to use the cutter head with the smallest
height in relation to the table top.
Attachment parts for table extension:
8 Allen screws M5 x 20
6 Allen screws M5 x 12
8 Washers 5 mm, small
6 Washers 5 mm, large
8 Hexagonal nuts M5
14 Circlips 5 mm
Fitting the table width extensions,
Fig. 2, 2.1, 11 and 12
The table width extensions enlarge the table surface,
thus allowing the handling of larger work pieces and
the execution of special moulding jobs.
Attach the extension table on both sides with 4 Allen
screws M5 x 20, 4 washers, 4 circlips and 4 hexago-
nal nuts M5 each and on the face of the table with 3
Allen screws M5 x 20, 3 washers and 3 circlips each.
Align the table and tighten all screws.
Connection of a dust extractor unit to your spin-
dle moulder
The connection facility for an external dust extractor
unit or system for the elimination of dust and chips
(not supplied) is provided.
Slide the suction hose of the dust extractor unit onto
the suction connection piece at the rear of the mould-
ing fence. For hoses with a dia. of 100 mm, a conical
adapter is found in the packing.
