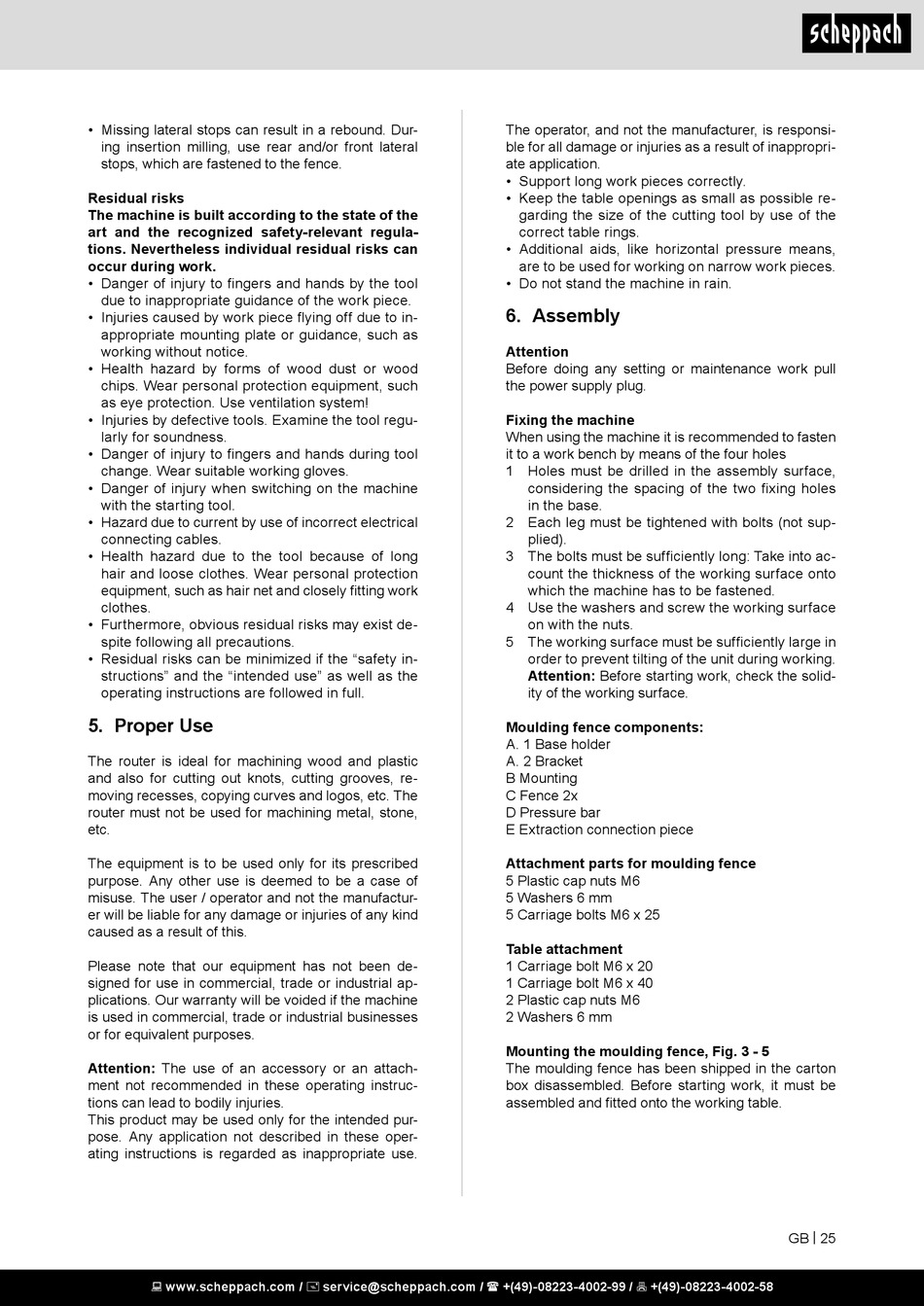

Proper Use; Assembly - Scheppach HF50 Original Bedienungsanleitung

• Missing lateral stops can result in a rebound. Dur-
ing insertion milling, use rear and/or front lateral
stops, which are fastened to the fence.
Residual risks
The machine is built according to the state of the
art and the recognized safety-relevant regula-
tions. Nevertheless individual residual risks can
occur during work.
• Danger of injury to fingers and hands by the tool
due to inappropriate guidance of the work piece.
• Injuries caused by work piece flying off due to in-
appropriate mounting plate or guidance, such as
working without notice.
• Health hazard by forms of wood dust or wood
chips. Wear personal protection equipment, such
as eye protection. Use ventilation system!
• Injuries by defective tools. Examine the tool regu-
larly for soundness.
• Danger of injury to fingers and hands during tool
change. Wear suitable working gloves.
• Danger of injury when switching on the machine
with the starting tool.
• Hazard due to current by use of incorrect electrical
connecting cables.
• Health hazard due to the tool because of long
hair and loose clothes. Wear personal protection
equipment, such as hair net and closely fitting work
clothes.
• Furthermore, obvious residual risks may exist de-
spite following all precautions.
• Residual risks can be minimized if the "safety in-
structions" and the "intended use" as well as the
operating instructions are followed in full.

5. Proper Use

The router is ideal for machining wood and plastic
and also for cutting out knots, cutting grooves, re-
moving recesses, copying curves and logos, etc. The
router must not be used for machining metal, stone,
etc.
The equipment is to be used only for its prescribed
purpose. Any other use is deemed to be a case of
misuse. The user / operator and not the manufactur-
er will be liable for any damage or injuries of any kind
caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial ap-
plications. Our warranty will be voided if the machine
is used in commercial, trade or industrial businesses
or for equivalent purposes.
Attention: The use of an accessory or an attach-
ment not recommended in these operating instruc-
tions can lead to bodily injuries.
This product may be used only for the intended pur-
pose. Any application not described in these oper-
ating instructions is regarded as inappropriate use.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
The operator, and not the manufacturer, is responsi-
ble for all damage or injuries as a result of inappropri-
ate application.
• Support long work pieces correctly.
• Keep the table openings as small as possible re-
garding the size of the cutting tool by use of the
correct table rings.
• Additional aids, like horizontal pressure means,
are to be used for working on narrow work pieces.
• Do not stand the machine in rain.

6. Assembly

Attention
Before doing any setting or maintenance work pull
the power supply plug.
Fixing the machine
When using the machine it is recommended to fasten
it to a work bench by means of the four holes
1 Holes must be drilled in the assembly surface,
considering the spacing of the two fixing holes
in the base.
2 Each leg must be tightened with bolts (not sup-
plied).
3 The bolts must be sufficiently long: Take into ac-
count the thickness of the working surface onto
which the machine has to be fastened.
4 Use the washers and screw the working surface
on with the nuts.
5 The working surface must be sufficiently large in
order to prevent tilting of the unit during working.
Attention: Before starting work, check the solid-
ity of the working surface.
Moulding fence components:
A. 1 Base holder
A. 2 Bracket
B Mounting
C Fence 2x
D Pressure bar
E Extraction connection piece
Attachment parts for moulding fence
5 Plastic cap nuts M6
5 Washers 6 mm
5 Carriage bolts M6 x 25
Table attachment
1 Carriage bolt M6 x 20
1 Carriage bolt M6 x 40
2 Plastic cap nuts M6
2 Washers 6 mm
Mounting the moulding fence, Fig. 3 - 5
The moulding fence has been shipped in the carton
box disassembled. Before starting work, it must be
assembled and fitted onto the working table.
