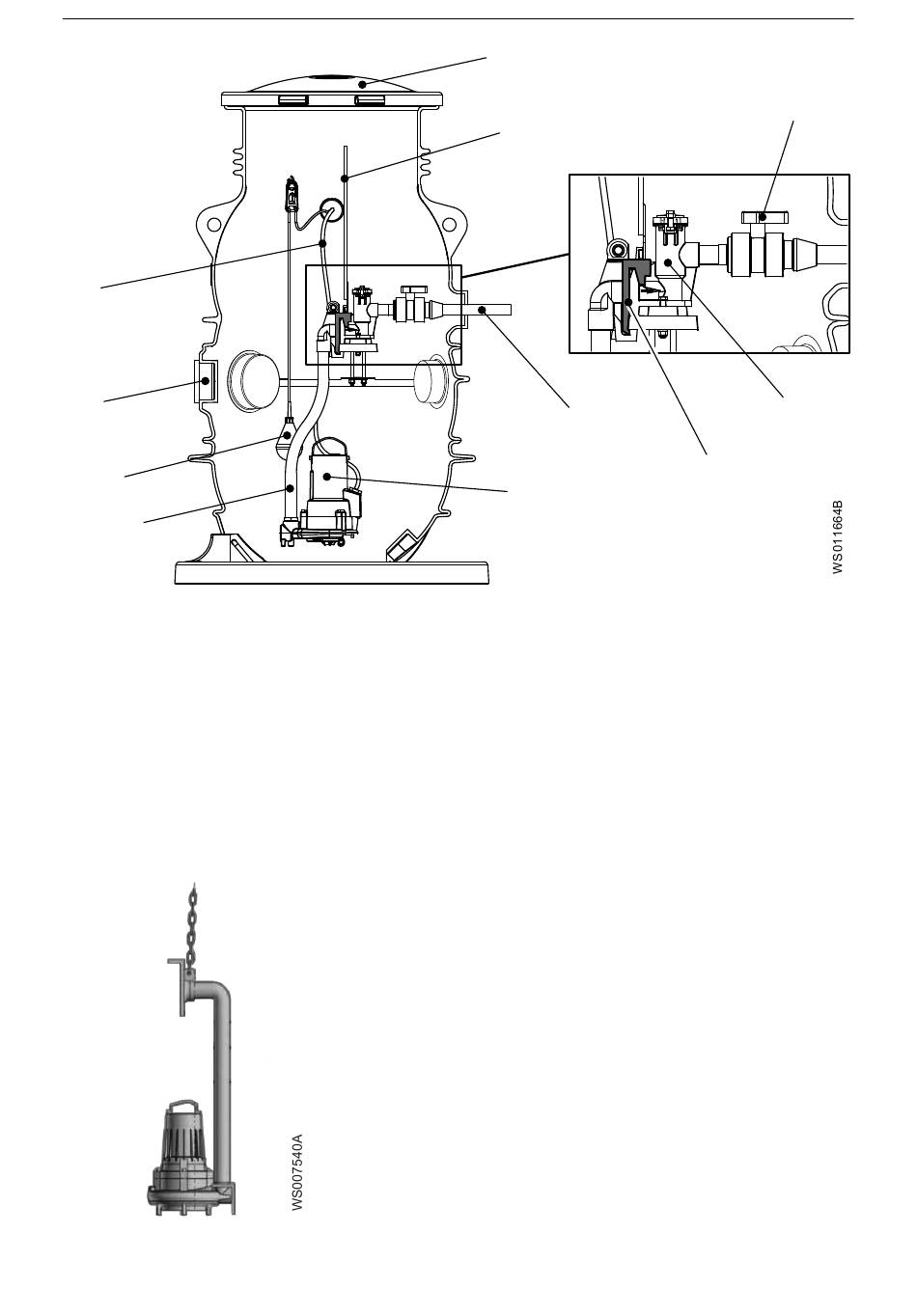

1. Access cover
2. Guiding device
3. Shutoff valve
4. Check valve
5. Sliding bracket
6. Outlet pipe
7. Pump
8. Pump outlet pipe
9. Level sensor
10. Inlet
11. Pump cable
The pressure connection unit consists of a pipe with thread protector, a 90 degree bend, and a sliding bracket.
1. Remove the thread protector from the pressure connection unit pipe.
2. Apply some thread sealant and screw the pressure connection unit into the pressure side of the pump.
Make sure that the pump and the sliding bracket are aligned.
3. Attach a chain with shackle to the sliding bracket part of the pressure connection unit.
4. Install the pump:
35
