5. Fasten the chain and motor cable on the hooks.
6. Install the level sensors. See
7. Close and lock the access cover before leaving the unit.

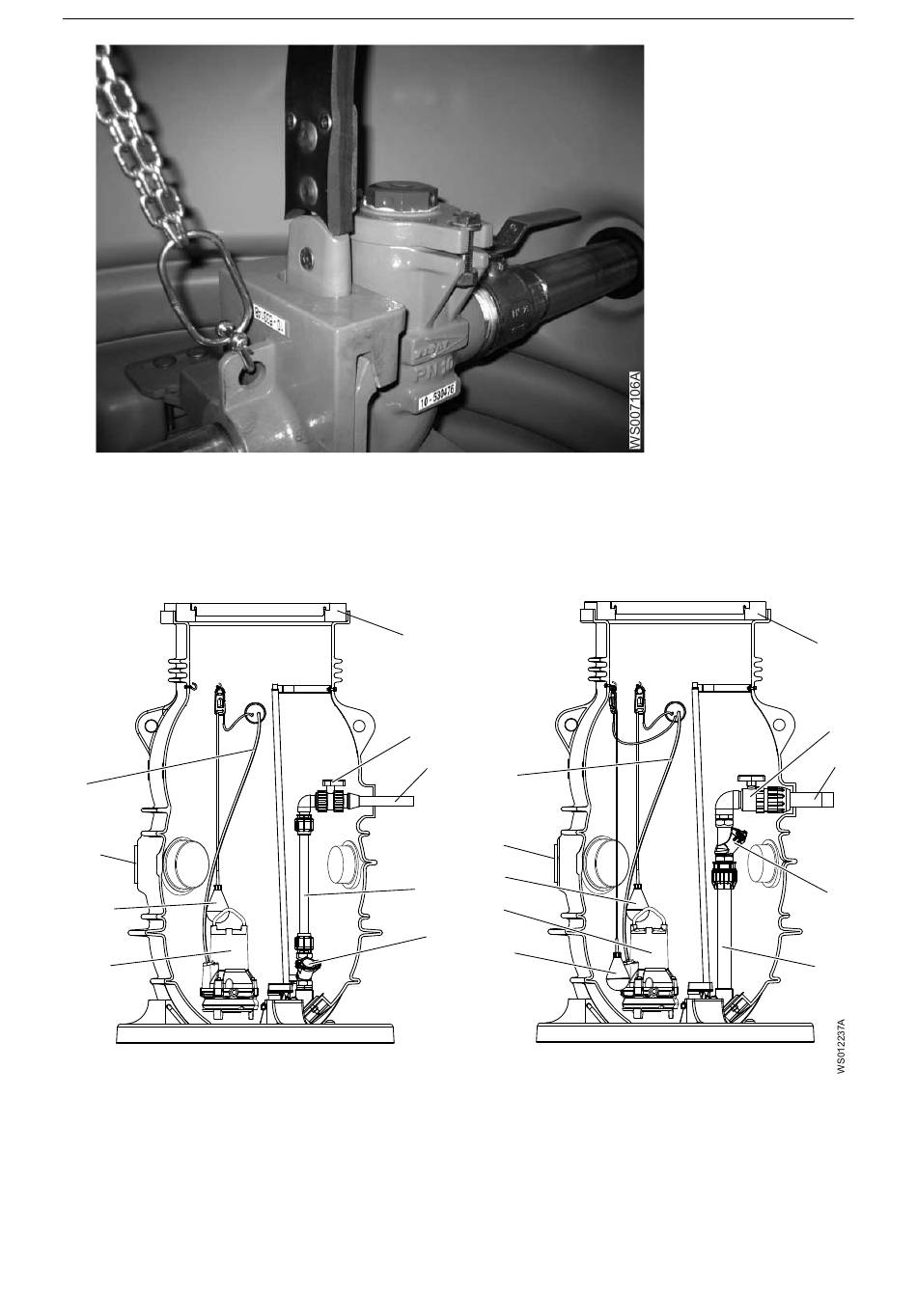

4.3.2 Install with P-installation
This figure shows an example of a DN32 and a DN50 P-installation.
9
8
6
7
DN32
1. Access cover
2. Shutoff valve
3. Outlet pipe
4. Check valve
5. Pump outlet pipe
6. Level sensor
7. Pump
8. Inlet
9. Pump cable
Installing the level sensors
1
2
3
5
4
on page 27.
9
8
6
7
6
DN50
