a) Lower the extension over the extension guide bars.
Make sure that the extension guide bar bracket is aligned with the extension guide bars.
b) Fit the extension guide bars into the extension guide bar bracket.

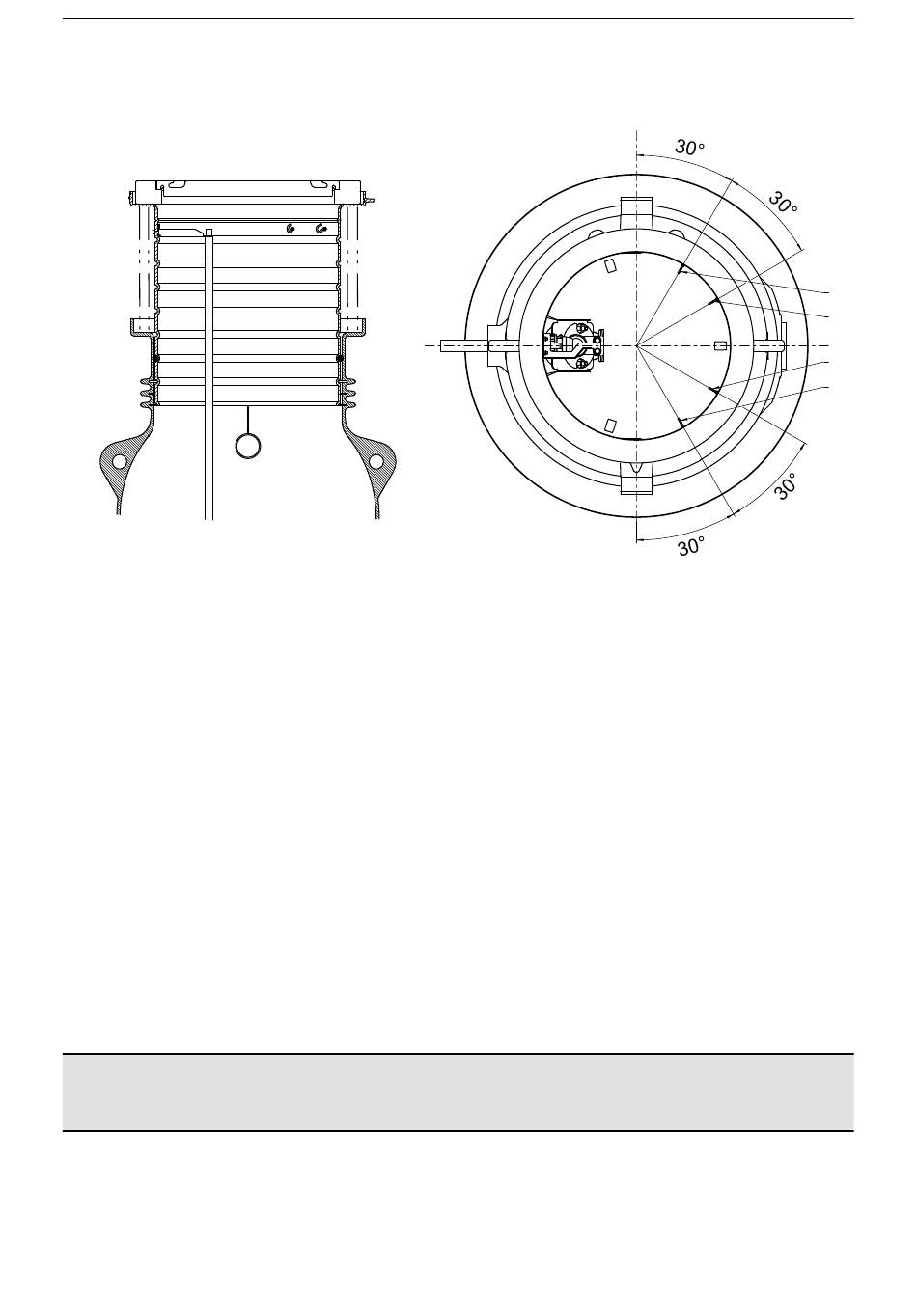

c) The figure shows the angular position of the hooks in the extension.
WS011681A
1. Hook for level regulator
2. Hook for chains
5. Put the pieces of wood in position.
The wood prevents the extension from moving during backfilling.
4.2.8 Make the electrical connections
Before making the electrical connections, read the Installation, Operation, and Maintenance manual for the con-
trol panel carefully.
1. Check that the following requirements are complied with:
– The fuse in the power supply system must agree with the maximum permissible fuse rating.
– The main voltage and frequency must agree with the specifications on the pump data plate.
– When connecting inside the unit, remember that the environment is damp. Make sure that suitable elec-
trical protection is chosen accordingly.
– Do not allow the ends of the cable to be submerged in water. The water can be sucked into the cable by
capillary action.
– Appropriate support grips must be used for the cables inside the unit.
– Silicon-filled butt connectors must be used. Do not use terminal blocks as they can easily cause a short-
circuit.
2. Install the level sensors.
See Installing the level sensors
3. Install the control panel.
See Install the control panel
4.2.9 Installing the level sensors
NOTICE:
It is essential to ensure the proper functioning of level regulators in the unit.
Install the ENM-10
Make sure that there are two ENM-10 level sensors available for start and alarm.
Before installing the level sensor, read the level sensor manual carefully.
1. Hang the level sensors on the cable holder inside the tank.
Use applicable support grips.
on page 27.
on page 29.
