en - Original instructions
WS012232A

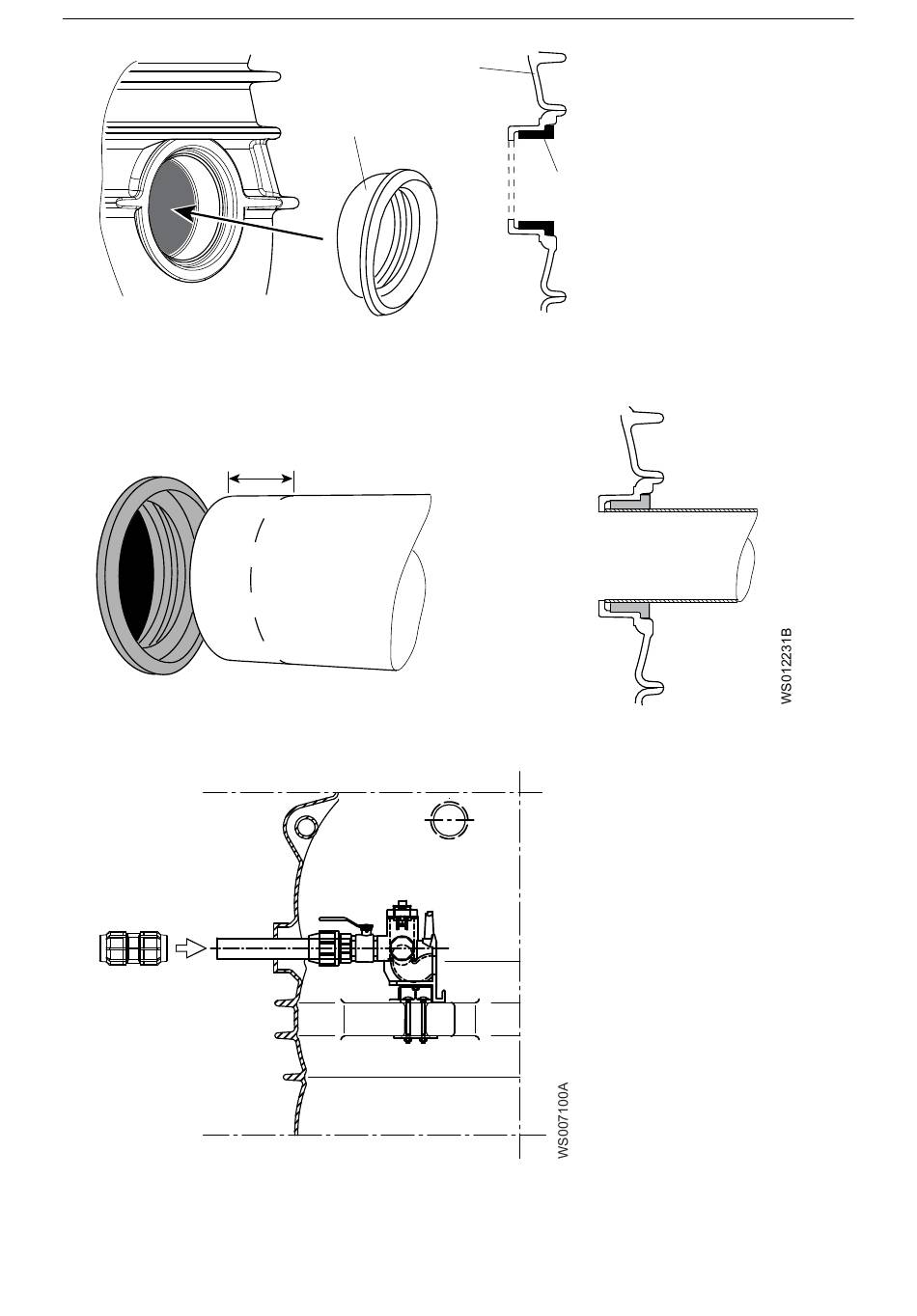

f) Chamfer the edge of the pipe and lubricate it.
g) Push the end of the pipe into the seal, so that the pipe end is flush with the inner wall.
Check that the 75 mm (2.95 in) mark is in line with the edge of the seal.
75 mm (3 in)
2. Connect a compression fitting to the outlet pipe of the unit.
The compression fitting is ordered separately.
3. Install the cable entry pipe.
a) Choose where to install the cable entry pipe.
24
2
1
1. Seal
2. Pump station wall
1
