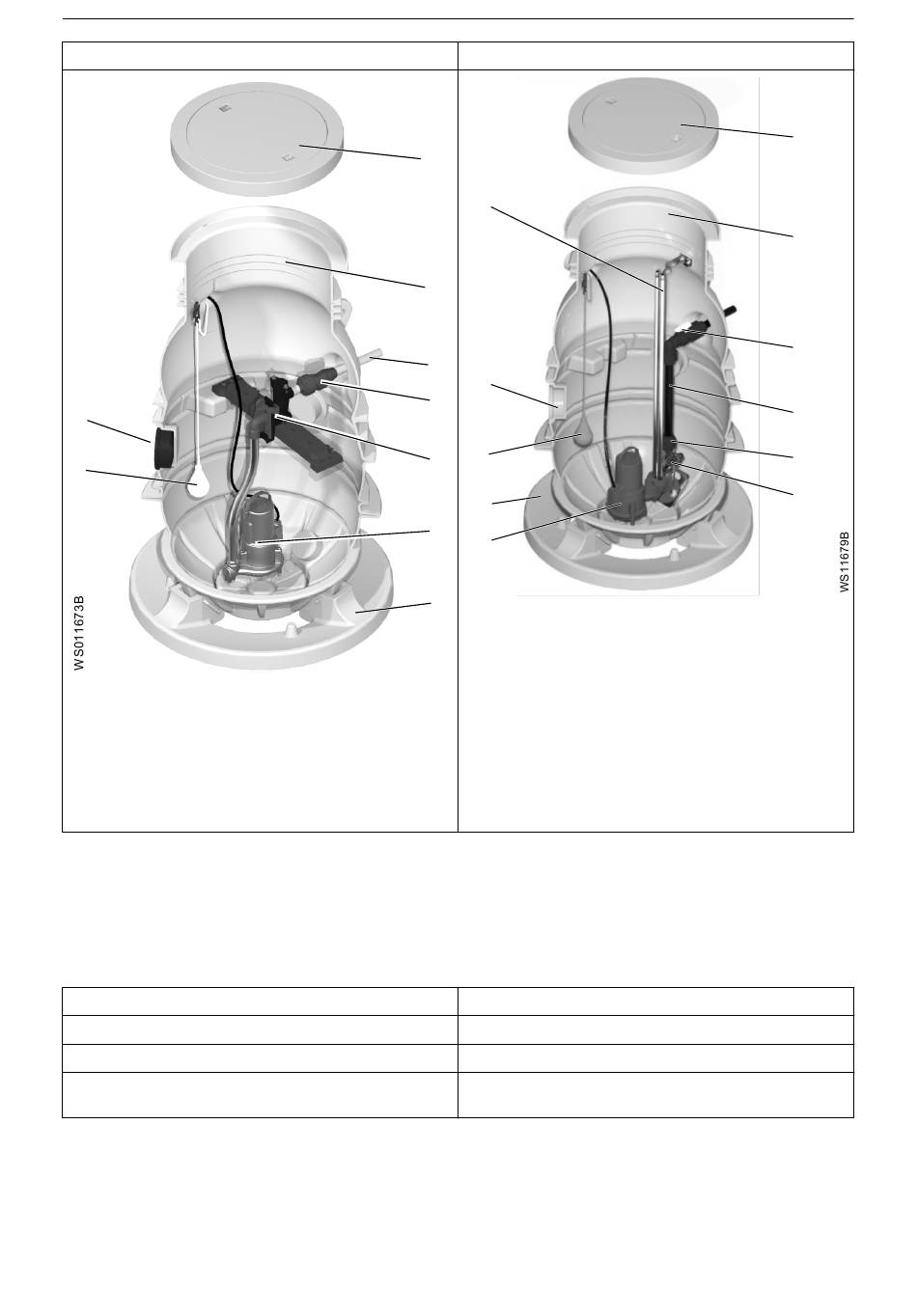

H-installation
9
8
1. Access cover
2. Tank
3. Outlet
4. Shutoff valve
5. Discharge connection unit with check valve
6. Pump
7. Anchoring ring (foot)
8. Level sensor
9. Inlet
3.2.3 Intended use
The product is intended for use in sewer applications.
3.2.4 Application limits
For pump limitations, read the Installation, Operation, and Maintenance manual for the pump.
The unit must be installed underground, outside of the building.
Data
Media temperature
pH of the pumped media
Other
3.2.5 Dimensions
Drawings
P-installation
1
11
2
3
10
4
9
5
8
6
7
7
1. Access cover
2. Tank
3. Shutoff valve
4. Outlet pipe
5. Check valve unit
6. Discharge connection unit
7. Pump
8. Anchoring ring (foot)
9. Level sensor
10. Inlet
11. Guide bar system
Description
Maximum 60°C (140°F)
5.5 - 8
For other applications, contact the local sales and
service representative for information.
en - Original instructions
