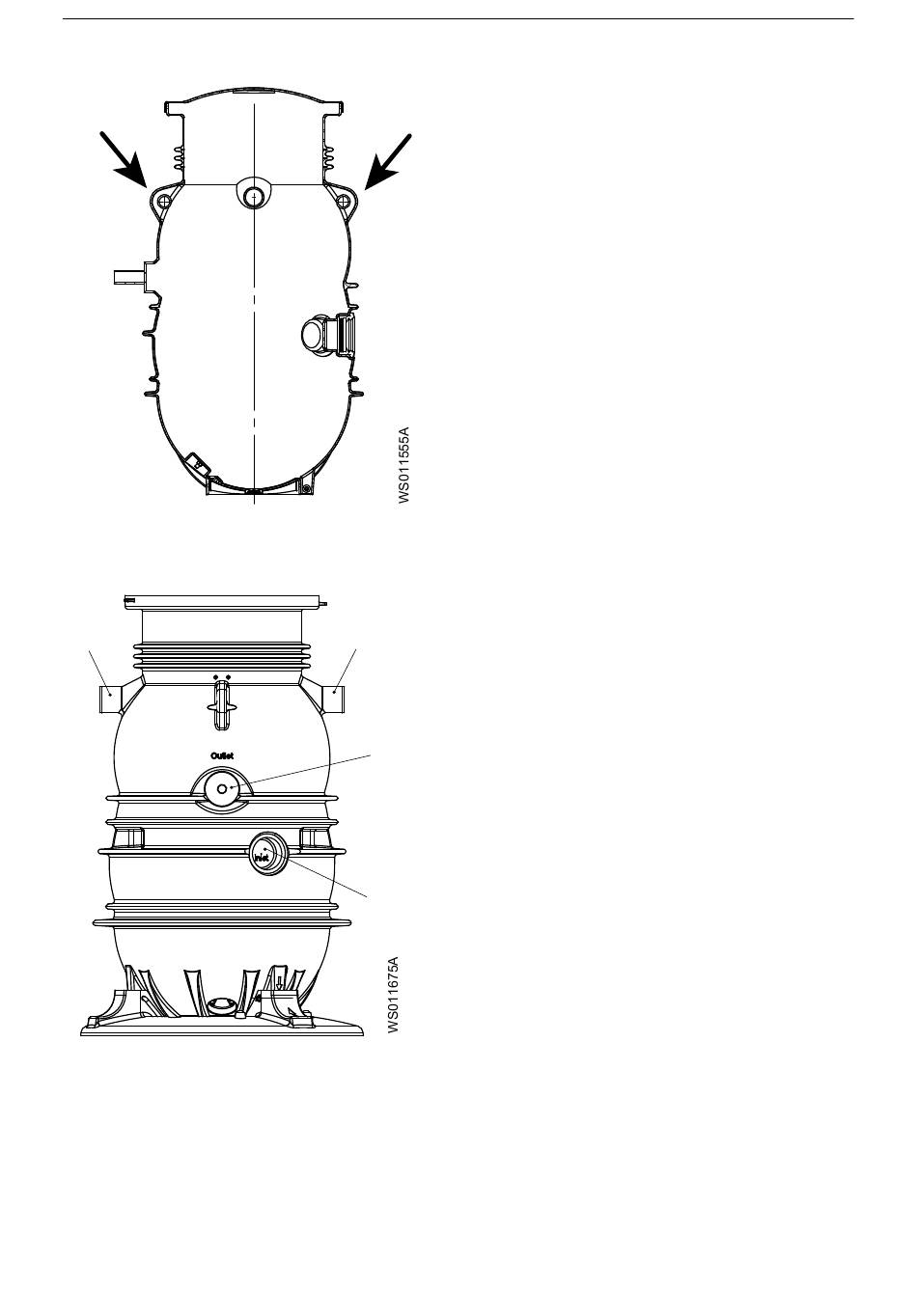

Figure 7: Lifting eyes
3. Check that the unit is in level.
4.2.5 Connect the external piping
4
Not included:
• Compression fitting for outlet pipe
1. Install the inlet pipe:
a) Choose where to install the inlet pipe.
There are four inlet connection alternatives. The choice depends on the installation type and the site de-
sign. See
Dimensions
b) Make a mark on the pipe, 75 mm (2.95 in) from the pipe end.
c) Use the figure and table to calculate the drilled hole dimensions.
22
1
2
3
on page 15.
1. Cable entry pipe or ventilation pipe
2. Outlet
3. Inlet: 1 of 4 is shown.
4. Cable entry pipe or ventilation pipe
