Connecting-up
NOTE
7-2
Downloaded from www.Manualslib.com
The converters are suitable for connecting to networks with an earthed
star point (TN networks and TT networks).
For connection to networks with a star point that is not earthed (IT
networks) or networks with an earthed outer conductor, converters with
option L20 are necessary.
The converters are designed for overvoltage category III in accordance
with IEC 60664-1.
Safe Stop,
aux. contactor,
external DC24 V
supply X9
connection X3
Mains connection X1
Mounting pos. 3
Mounting pos. 2
Optional board
PMU connection X108
Mount.pos. 1 (CUMC)
Encoder card in slot C
Motor connection X2
Shield connections
for control cables
Cable connecting
adapter for EMC

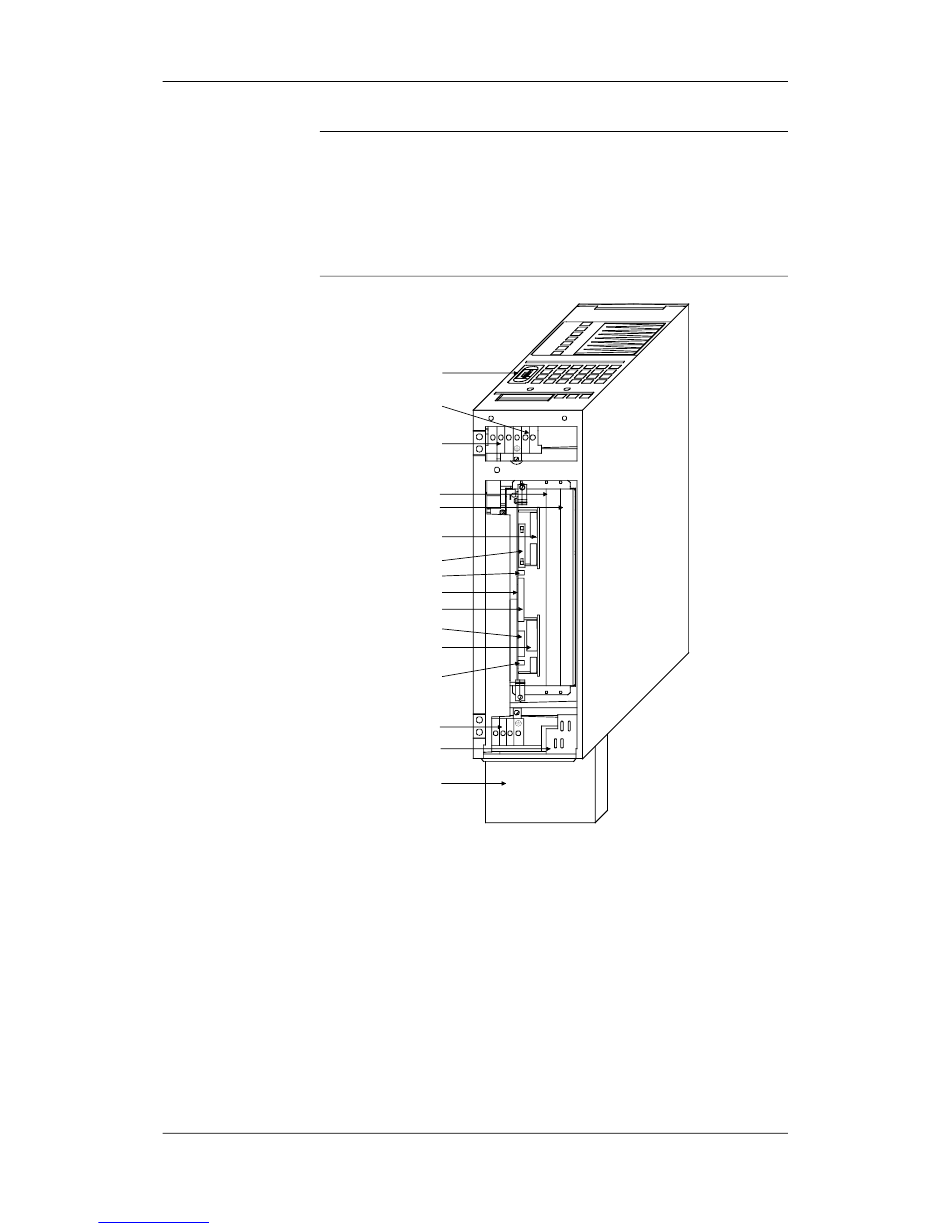

Fig. 7-1
manuals search engine
DC link
U 1 V1 W1 PE1 C D
L 1 L 2 L 3 L + L -
in Slot A
S1
X101
X103
S2
T1 T2 T3
U2 V2 W2 PE2
(option)
Connection overview of types A - C
