MANUALE ERPICI PIEGHEVOLI DJ-DP-DK-DMAX

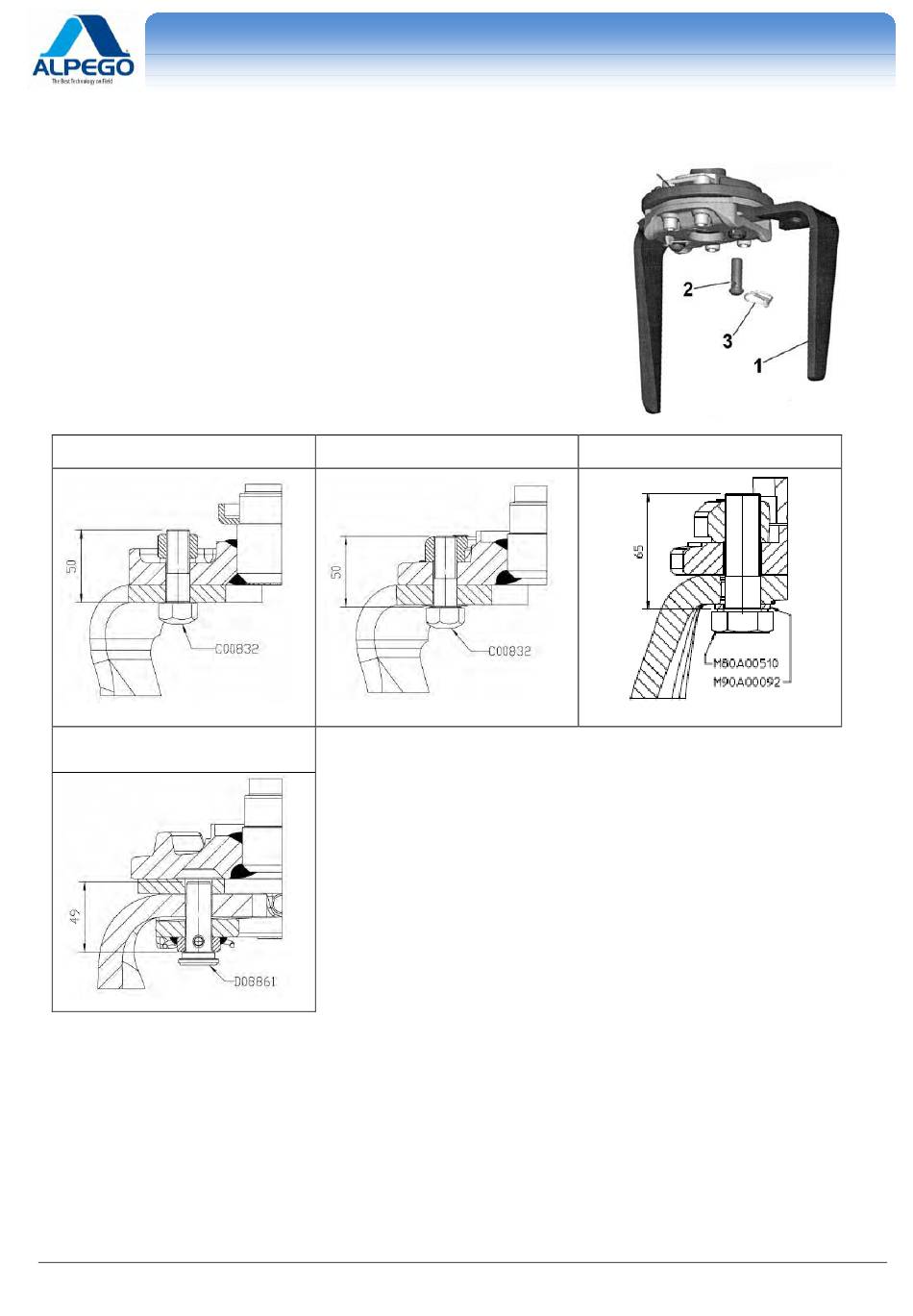

6.5.1. REPLACEMENT OF THE QUICK-RELEASE TINES

In the machines which are equipped with quick-release tines, take the following steps:
Insert tine (Ref. 1)

Insert the pin (Ref. 2)

 Block the whole with the spring pin (Ref. 3)
Correct assembly of the tines:
DJ-DP
DK Rapido
DmaX Rapido
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
DK
Old Cod.D03214
Q00A00017 R.23
DmaX
MAINTENANCE
- 32
