When a machine comes coupled to the tractor, becoming to the ends of the street circulation integrating part of the
same one, can alter of the stability and cause difficulty in the guide and the job.
The application of a machine to the tractor, involves one various distribution of the weights on the aces.
Depending on the composition of the machine, it is therefore advisable to add ballast to the front part of the tractor so as to
adequately distribute the weight on the axles

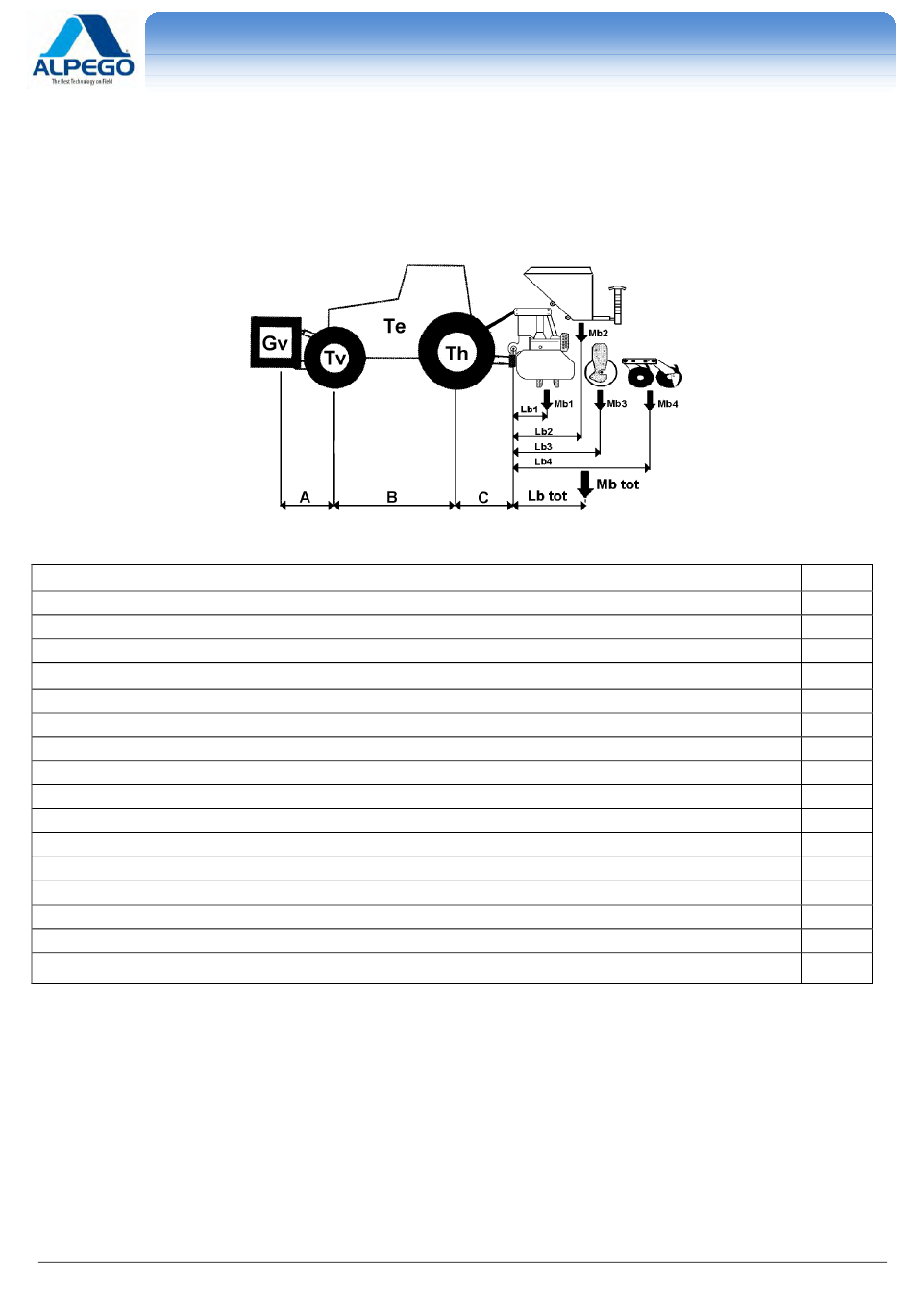

Refer to the following list:
A = Distance of the front axle from the front ballast (m)
B = Tractor wheelbase (m)
C = Distance of the rear axle from the implement's lower hitch (m)
Gv = Ballast weight (kg)
Te = Empty weight of the tractor
Tv = Load on the tractor's front axle when empty
Th = Load on the tractor's rear axle when empty
Lb tot = Distance from the lower hitch to the center of gravity of the complete implement combination (m)
Lb1 = Distance from the lower hitch to the center of gravity of the first combi machine (m)
Lb2 = Distance from the lower hitch to the center of gravity of the second combi machine (m)
Lb3 = Distance from the lower hitch to the center of gravity of the third combi machine (m)
Lb4 = Distance from the lower hitch to the center of gravity of the fourth combi machine (m)
Mb1 = Overall weight of the first implement (kg)
Mb2 = Overall weight of the second implement (kg)
Mb3 = Overall weight of the third implement (kg)
Mb4 = Overall weight of the fourth implement (kg)
Mb tot = Overall weight of the complete implement combination (kg)
Where:
1) Must be measured.
2) Consult the tractor's operation and maintenance manual.
3) Must be calculated.
4) Consult the operation and maintenance manual of the required implement.
