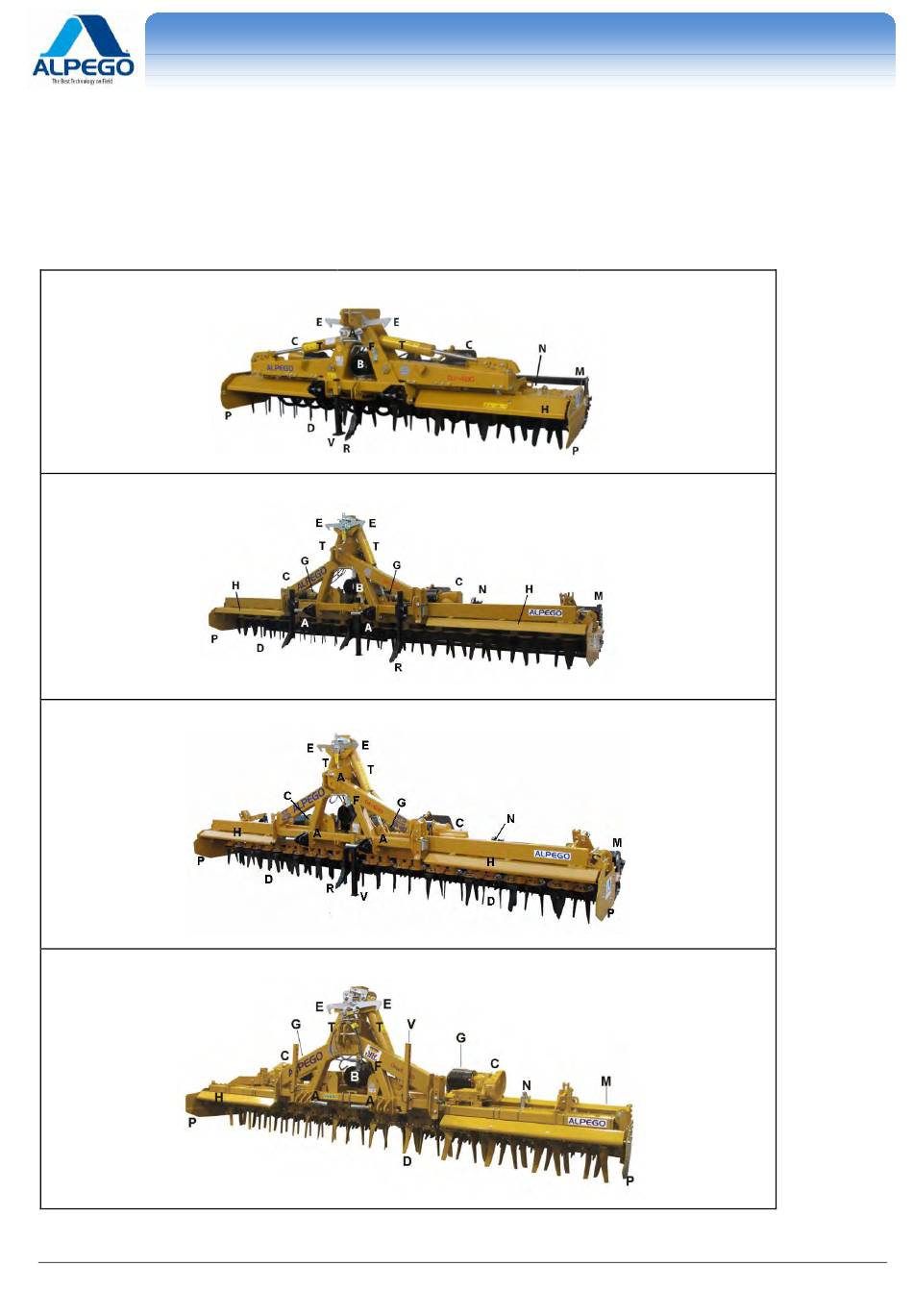

2.2. KEY ELEMENTS OF ROTODENT

A) 3-point connection
B) Central speed reduction or change gear
C) Side speed reduction or change gear
D) Teeth and teeth-holder
E) Hooks for rotodent closing
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
F) Universal joint support
G) Side universal joint
H) Front guards
M) Rear levelling roller
N) Rear clod bar adjusting crank
ROTODENT DJ / DJ SUPER
ROTODENT DP
ROTODENT DK
ROTODENT DmaX
Old Cod.D03214
Q00A00017 R.23
P) Mobile body sides
R) Central track eradicators
T) Folding cylinders
V) Support leg
TECHNICAL FEATURES
- 4
