4.5. CONNECTION WITH THE TRACTOR

Test especially the distribution weight on anterior axle of tractor
(see technical data on the table 2.3); therefore, it may become necessary
to restore the balance with the addition of suitable ballasts on the axle
which has become lighter. Before coupling or uncoupling the machine
from attack three point hitch, put in block position the lever of lifter
Place the machine on level ground and reverse with the tractor at a minimum distance
of 1m. from the machine. Switch off the engine , activate the parking brake, therefore to
descend from the tractor and to link the lower connections and the 3-point linkage.

4.6. CONNECTION AT THREE POINT HITCH

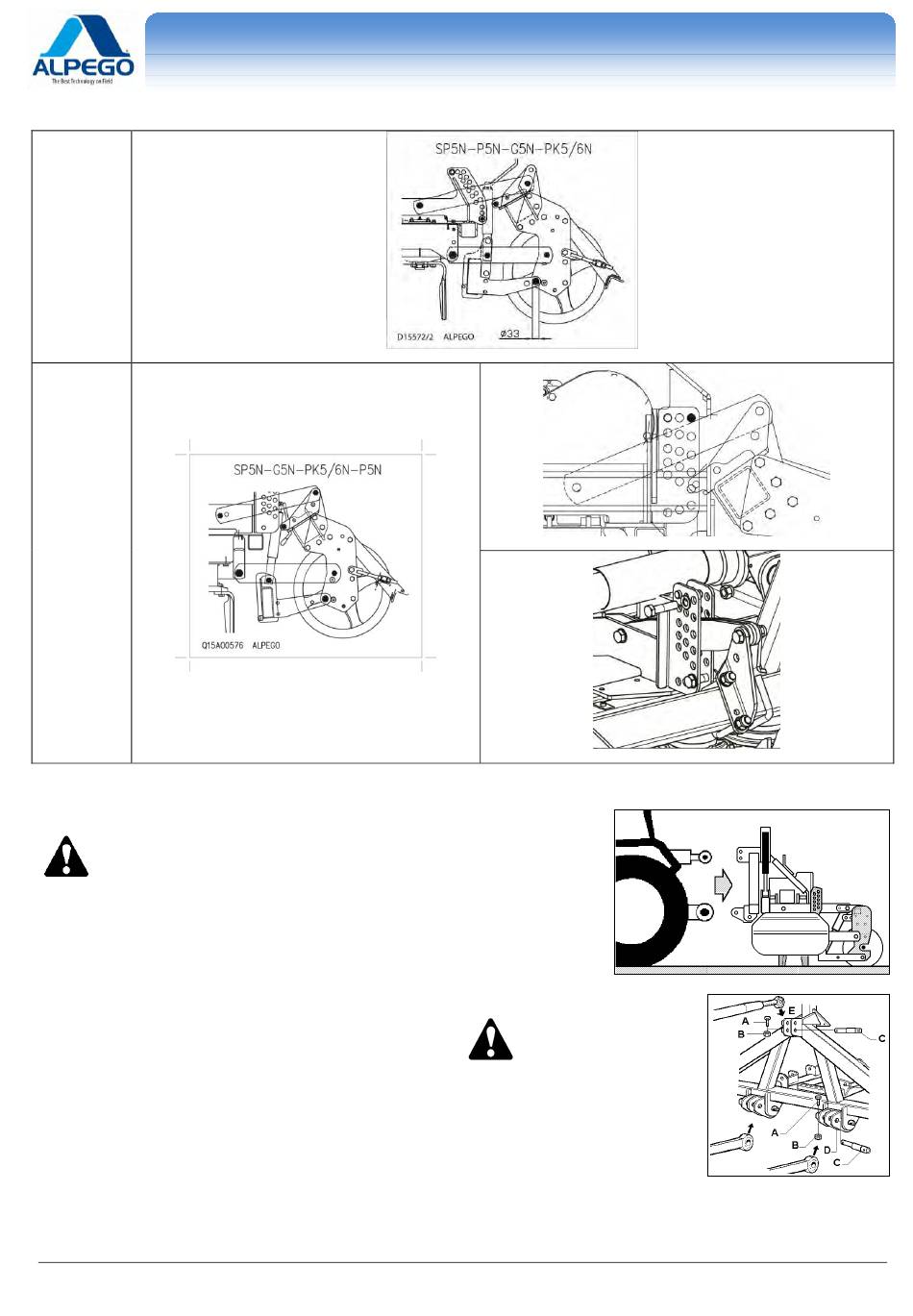

Connect the lower arms as follows (see figure):
a. Remove the screw A and the nuts B
b. Remove the pins C
c. Insert the tractor connections in the outlets D
d. Insert the pin C, the screw A and the nuts B, after choosing the most suitable hole according
to the tractor lifting capacity
