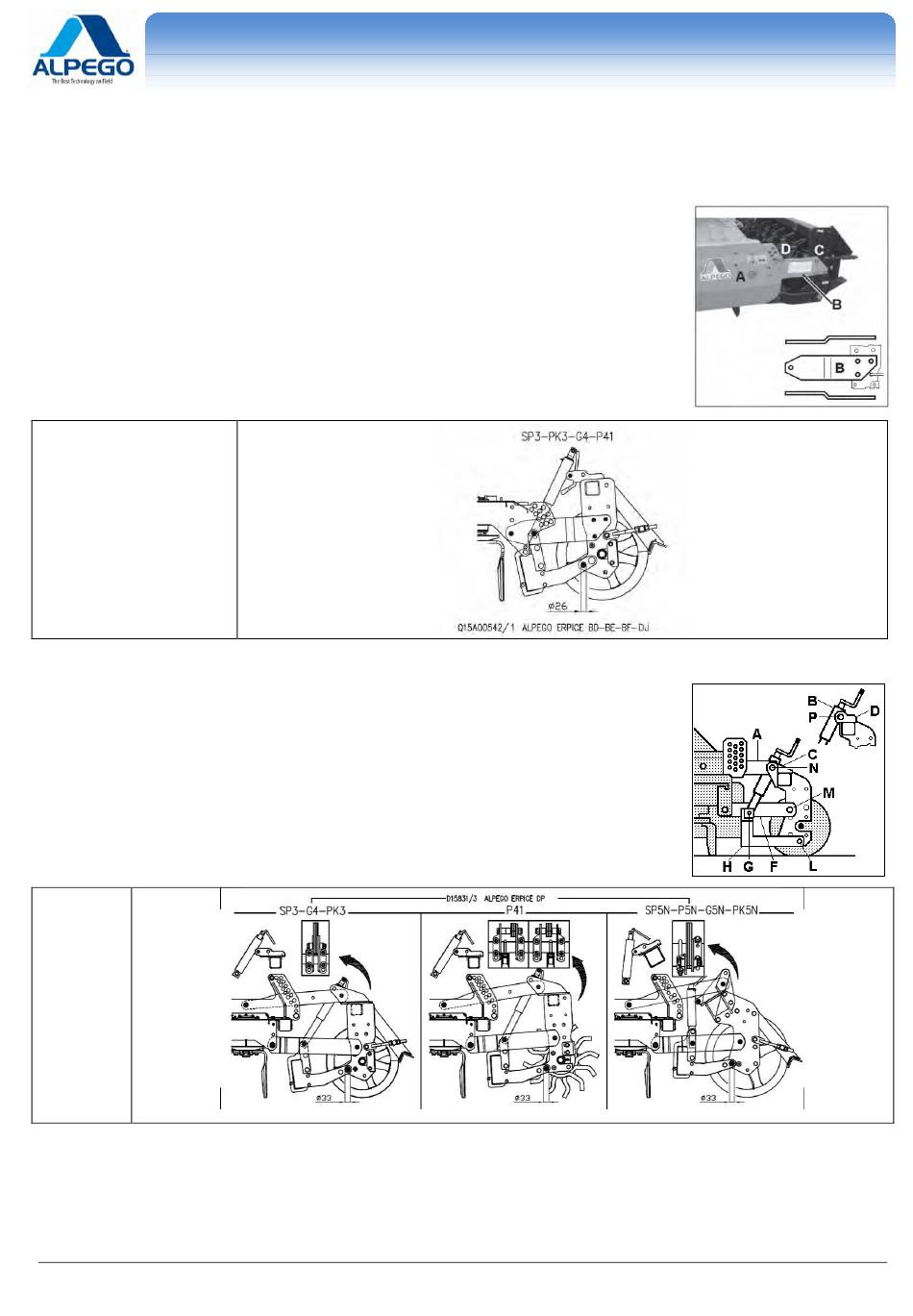

4.4. ASSEMBLY OF THE ROLLER

After having performed the operations indicated in paragraph 4.3 proceed as follows:
4.4.1. ASSEMBLY OF THE "DJ – DJ SUPER" ROLLER
After having terminated the operations indicated in the previous sections, proceed as described
below:
- assemble the two arms B by fixing it with the bolts in the hole A and in the three holes C on the
roller;
- control the position of work with the two pins D on the request hole.
Verify the correct assembly with the next figures that are applied at the blades B of the rollers.
Figure for rotodent
DJ – DJ SUPER
4.4.2. ASSEMBLY OF THE "DP – DK – DMAX" ROLLER
Assemble the refining rod H by fixing it with the bolts and spacers L, then assemble the bracket D
on the square tube of the roller frame, then the crank B by fixing it onto the lower hole G and onto
the upper hole P. Assemble the brackets C on the square tube of the roller frame, and at this point
the roller is ready to be assembled on the machine, lift it and place it at the rear of the machine
already assembled on the tractor. Fix the two upper blades A by means of the bolts N and the two
bottom blades F with the bolts and the spacer M. Repeat the same operation for the other roller.
Verify the correct assembly with the next figures that are applied at the blades F of the rollers.
Figure for
rotodent
DP
