range around the vertical axis (left-right) is about 180° . The other
axis can be moved downwards by 45° and upwards by about 30° .
Should this range be smaller or bigger than preset all end positions
can be adjusted. The end positions can be changed by the buttons
(2) on the pan/tilt unit (fig.3).
In order to change the end positions, the camera has to be moved to
the desired position with the help of the remote control, e.g. to the
maximal left position. After that, the button "Left" has to be pushed.
The current position is therefore saved as the left limit. All limits can
be adjusted like this. If the pan/tilt unit can not be moved or if a limit
should to be changed, the "Reset" button has to be pushed. After
that, the limits are all set to their maximal value. Saved limits are
kept even if the power supply is disconnected.
P/T-02
Info
Buttons for
setting limits
only!
(1)
Upper
Left Reset Right
Lower
Camera
English

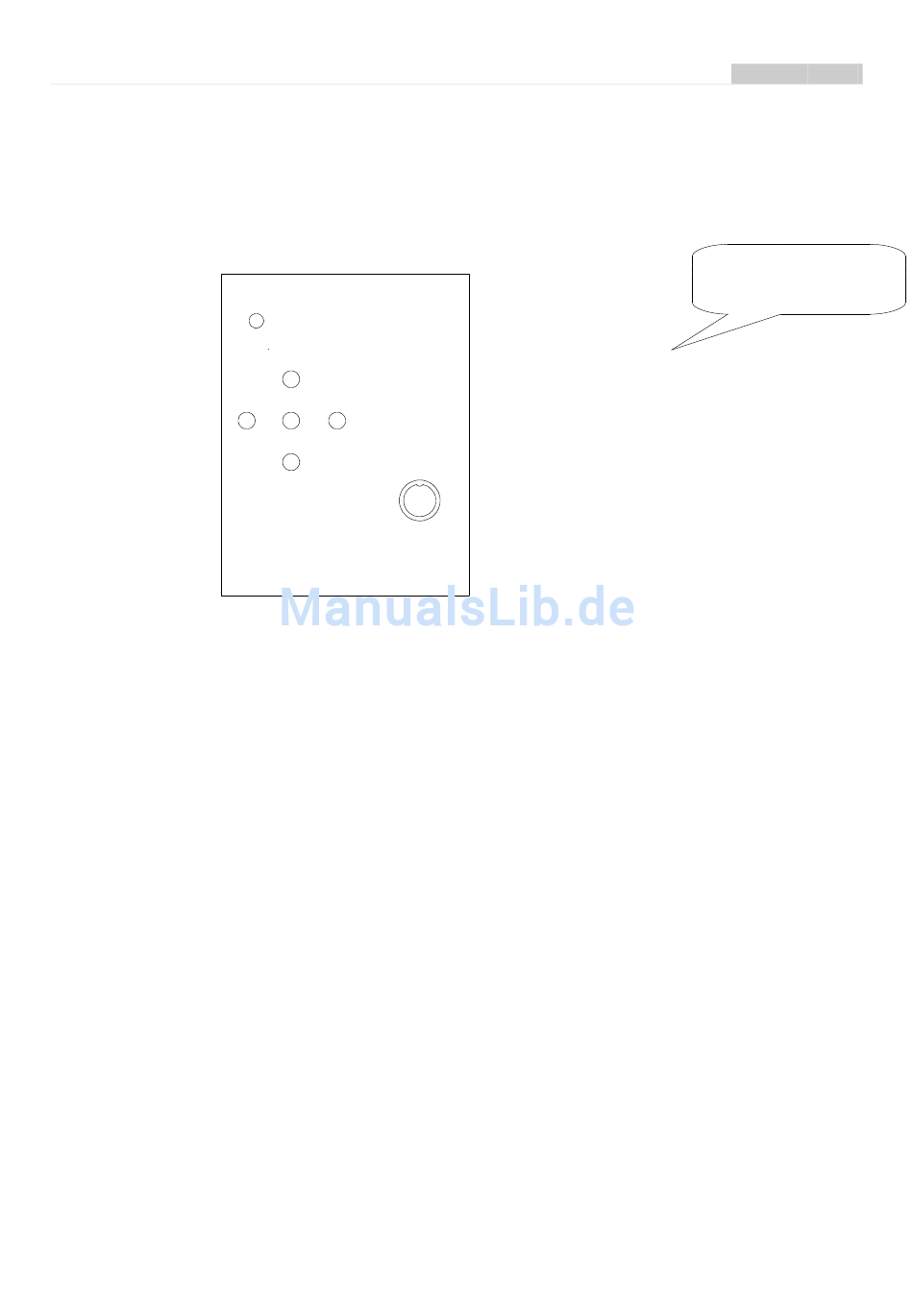

Fig. 3
Back side of pan/tilt unit
If the pan/tilt unit can
not be moved or if a
limit should to be
changed, the "Reset"
button has to be
pushed. After that, the
limits are all set to their
maximal value.
