Receiver AV-Rr-19
This receiver is designated for being mounted in a 19" rack. At the
front side the main switch ((1) in fig. 4) with the control LED (2), the
volume control (3), the sensor for the remote control of the built-in
VGA-converter (4), and the integrated loudspeakers (5) can be
found. Depending on the ordered features, a switch for the audio-
channels (6) and a microphone (7) with switch can be found on the
frontpanel, too. The switch of the microphone has to be set to On or
(On) (momentary). The integrated loudspeakers are turned off then
to avoid acoustic feedback from the other device.
AV-Rr-2
(5)
The remote control of the functions of the camera is achieved by the
buttons at (8), the pan/tilt unit is controlled with those at (9). The
buttons have the same arrangement and labeling as those at the
camera.
At the backside (fig. 5) the line- and video-OUT (10) can be found.
Figure 3 shows the pin configuration of this connector. In case of
mono-transmission (internal / external microphone) the left channel
is used, which is also given out at the integrated loudspeaker of the
receiver. The line-OUT is not influenced by the volume control.
In addition, the optical-IN (11), the optical-OUT for the remote control
of the functions of the camera (11), and the input connector for
6..9 V DC voltage (12) are located at the backside.
With the optional VGA-Out (13) the receiver can be connected
directly to a VGA-monitor (e.g. TFT). Possible resolutions are
640x480, 800x600, and 1024x768 pixels (can be modified via the
provided remote control). The S-Video-IN (optional) can be used for
the conversion of a S-Video-signal to the VGA-Out, e.g. when a S-
AV-R(r)
(1) (2) (4)
On Off
Tele/Up
Wide/Down
Audio
Volume
Channel
1
2
(3) (6)
V AV-TRX
(14)
L
Optical
In Out
R
Input Output
(8)
Bright + Menu
Up
Far/Enter
Light
Down
Near/Back
Left
Bright - Auto Bright
Camera Remote Control P/T-Unit Remote Control
Camera AV-C
(13)
VGA-Out
Out

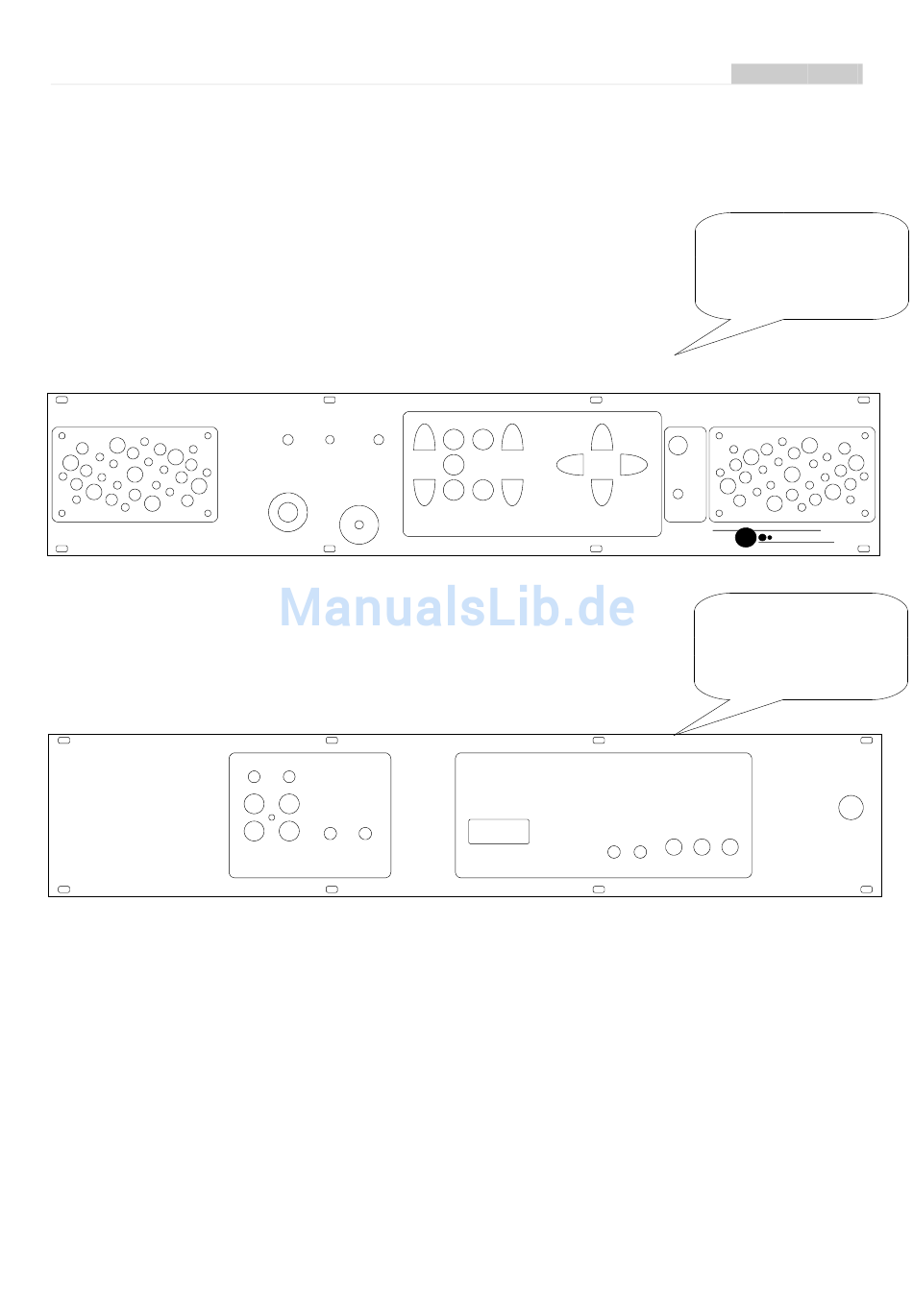

Fig. 4
Switches and connectors
at receiver AV-Rr-19
(front side)
(7) (5)
(9)
Mic
Right
On
Off
(On)
mk messtechnik
EMV Prüf- und Überwachungssysteme
Fig. 5
Switches and connectors
at the receiver AV-Rrr
(backside)
(11) (10)
Optical Video
Audio Out
In Out
L R
English
DC In
6..9 V
1 A
(12)
E-V-3
