DK50
DK50 PLUS
9.4.

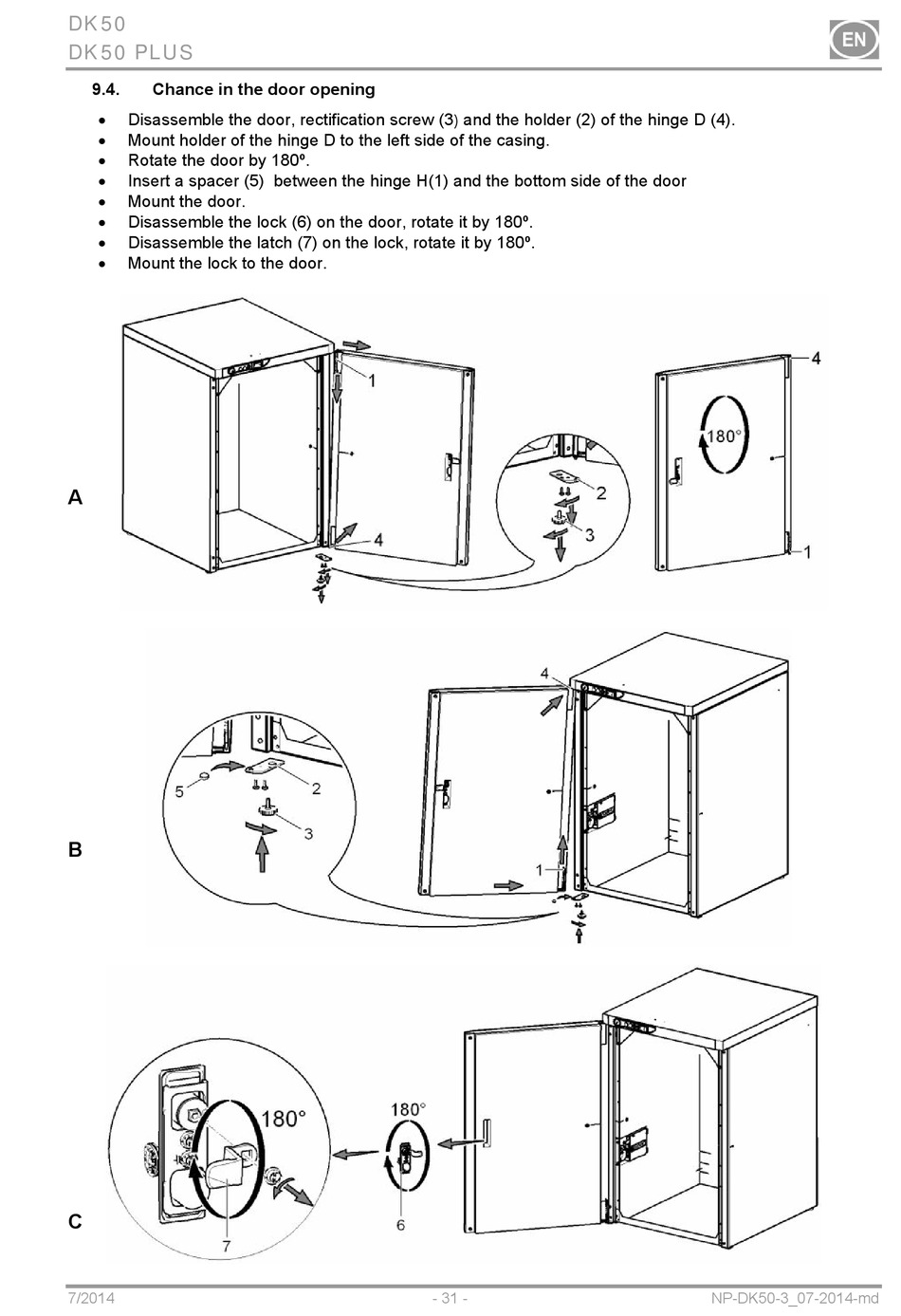

Chance in the door opening


Disassemble the door, rectification screw (3

Mount holder of the hinge D to the left side of the casing.

Rotate the door by 180º.

Insert a spacer (5) between the hinge H(1) and the bottom side of the door

Mount the door.

Disassemble the lock (6) on the door, rotate it by 180º.

Disassemble the latch (7) on the lock, rotate it by 180º.

Mount the lock to the door.
A
B
C
7/2014
and the holder (2) of the hinge D (4).
)
- 31 - NP-DK50-3_07-2014-md
